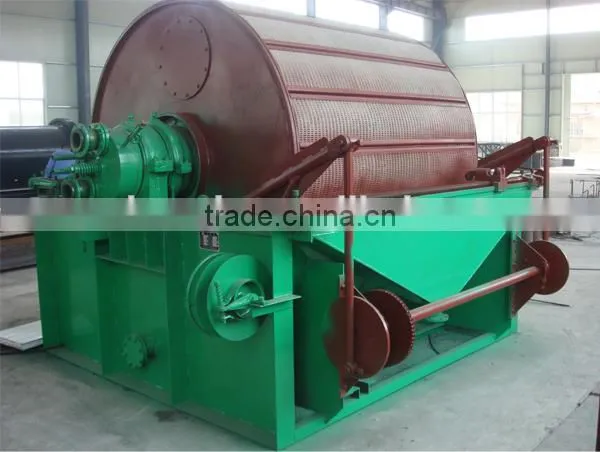

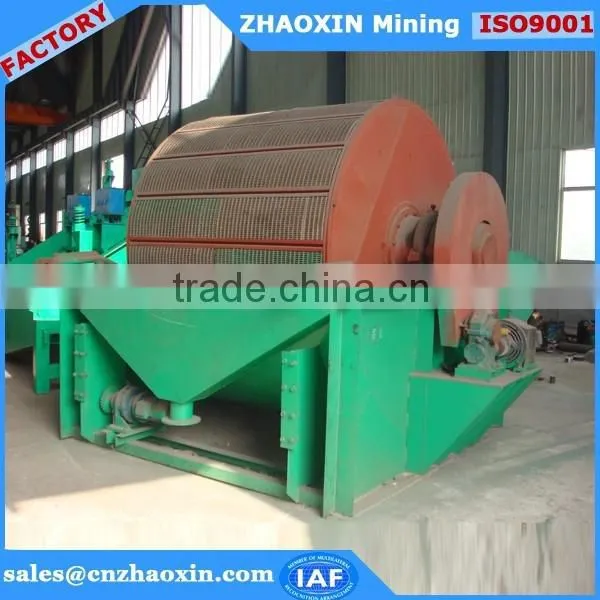

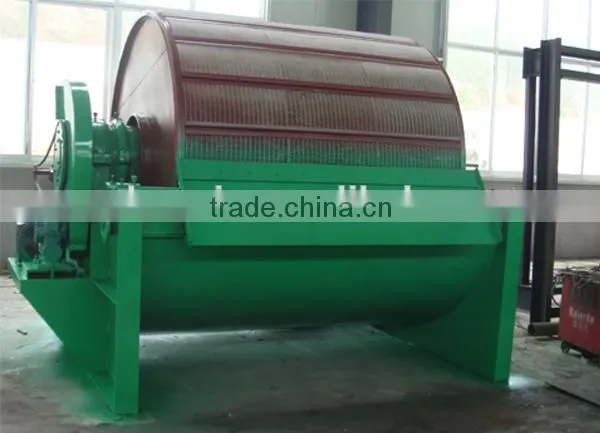

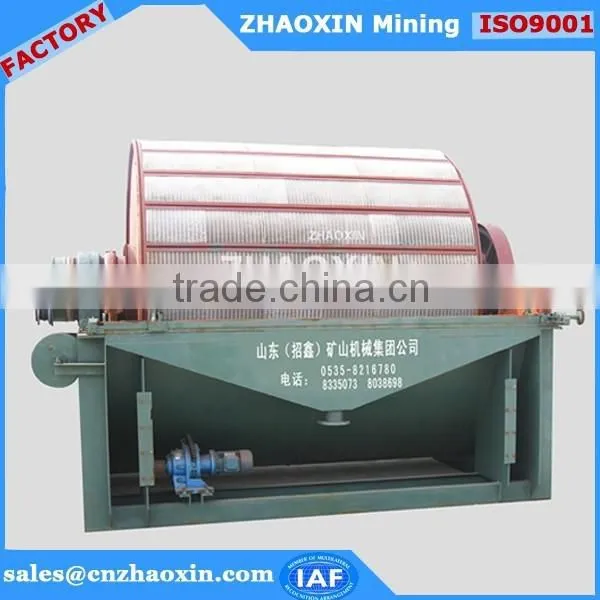

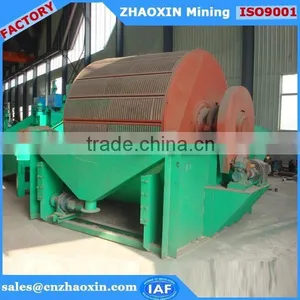

GW cylinder external filter machine
Features of filter
1. GW cylinder external filter is a kind of common filter, mainly used for filtering the ore pulp with fine grain size and requiring low water content.
2. Through adjusting the motor, variable speed control can be achieved. It has the advantages like simple structure, low price, convenient operation, less maintenance required and less wearable parts.
model |
GW-3 |
GW-5 |
GW-8 |
GW-10 |
GW-12 |
GW-20 |
GW-30 |
GW-40 |
GW-50 |
|
Filter area (m2) |
3 |
5 |
8 |
10 |
12 |
20 |
30 |
40 |
|
|
Cylinder size (mm) |
φ1068× 1060 |
φ1600× 1060 |
φ2000× 1500 |
φ2000× 1750 |
φ2000× 2000 |
φ2500× 2650 |
φ3350× 3000 |
φ3350× 4000 |
φ3350× 5000 |
|
cylinder speed (r/min) |
0.156- 1.56 |
0.156- 1.56 |
0.1-0.6 |
0.1- 0.6 |
0.1- 0.6 |
0.14- 0.54 |
0.12- 0.56 |
0.12- 0.56 |
0.12- 0.56 |
Vacuum pressure(KPa) |
60-80 |
60-80 |
60-80 |
60-80 |
60-80 |
60-80 |
60-80 |
60-80 |
60-80 |
|
Swept volume (m3/min.m2) |
0.5-2 |
0.5-2 |
0.5-2 |
0.5-2 |
0.5-2 |
0.5-2 |
0.5-2 |
0.5-2 |
0.5-2 |
|
Blast pressure (Kpa) |
10-30 |
10-30 |
10-30 |
10-30 |
10-30 |
10-30 |
10-30 |
10-30 |
10-30 |
|
blast volume (m3/min.m2) |
0.2- 0.4 |
0.2- 0.4 |
0.2- 0.4 |
0.2- 0.4 |
0.2- 0.4 |
0.2- 0.4 |
0.2 -0.4 |
0.2- 0.4 |
0.2- 0.4 |
|
capacity (t/h) |
0.8-1.5 |
1.6-2.4 |
2.8-3.6 |
3-4 |
3-5 |
3-8 |
4.5-12 |
6-16 |
7.5-20 |
cylinder motor(kw) |
1.5 |
1.5 |
2.2 |
2.2 |
2.2 |
3 |
4 |
4 |
5.5 |
|
Stirring motor (kw) |
0.75 |
0.75 |
1.5 |
1.5 |
2.2 |
2.2 |
3 |
3 |
4 |
|
weight (kg) |
2635 |
2850 |
5455 |
6317 |
6365 |
10600 |
17200 |
19500 |
21500 |

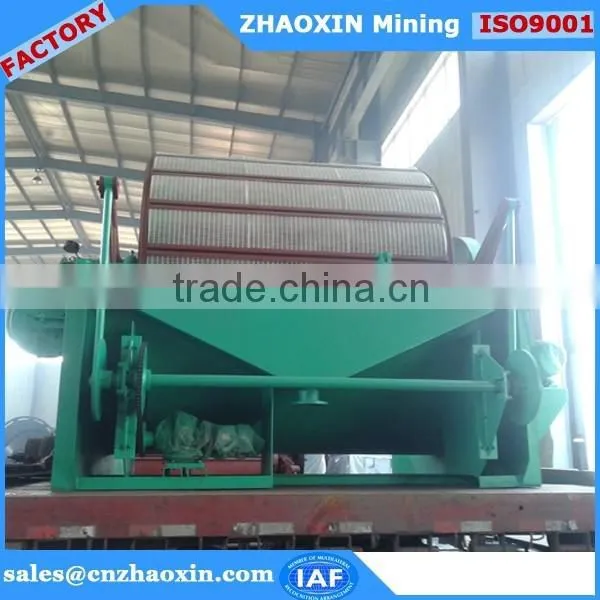

Safe shipment of filter
Certificate and honor
Shandong Zhaoxin Heavy-duty Mining Machinery Co., Ltd. is a professional manufacturer of all kinds of mining equipment, with ISO9001-2008 certificated.
With 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area.
Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, flotation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
Q: About payment
A:Usually 30%T/T prepaid and 70%TT to be paid upon received copy of bill of lading.
A:Commonly 10~30 days after received 30% deposit. Depends on detailed product. We will advise the detailed delivery time upon received your specific inquiry.
Q:Instalation
A: As per customer's requests, Zhaoxin would arrange installation technicians to supervise and assist in the assembly and commissioning of the equipment.
Q: About warranty
A: The warranty is one year exclude the wearable parts of the machine.
Q: What if customer not familiar with mining?
A: Do not worry, Zhaoxin offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
If any question about our product, please feel free to contact us.
