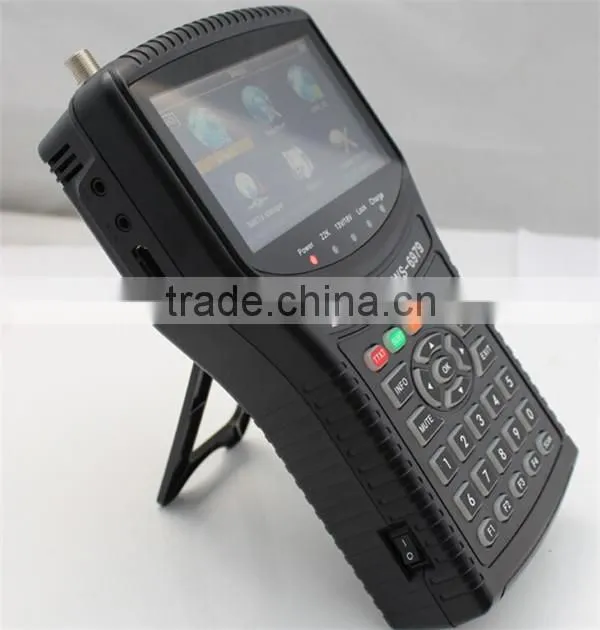

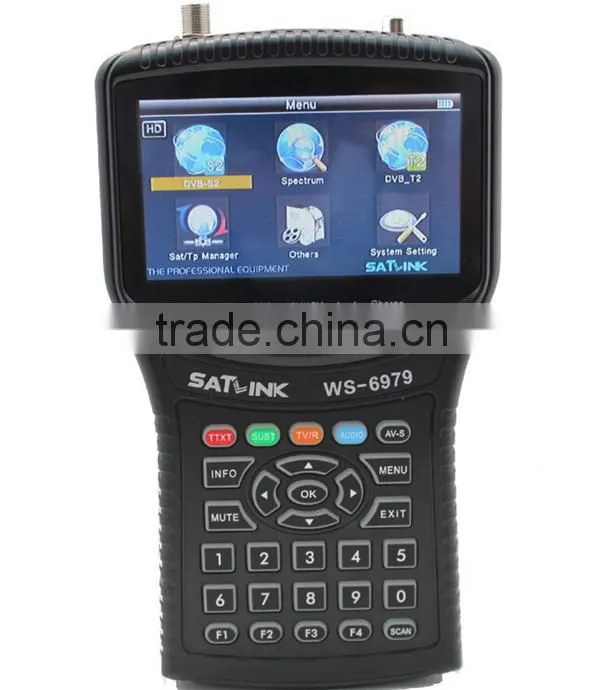

SATLINK WS-6979 HD MPEG4 real time spectrum satellite finder meter ws6979
Specifications
SATLINK WS-6979
1.DVB-S2 DVB-T2 HD Mpeg4 combo
2.terrestrial signal meter finder
3.spectrum constellation
4.Meter Signa
FEATURE:
Specification
1.DVB-S2 DVB-T2 HD Mpeg4 combo terrestrial signal meter finder
satellite meter finder meter
2. DVB-S2/S and DVB-T2/S spectrum constellation
3.Meter for Signal MER
4.multimedia
5.systme
6.HDMI out
TRANSMISSION STANDARDS | ||
DVB-S2/S, DVB-T/T2 | ||
SATELLITE INPUT/DEMODULATION | ||
Connector Type |
F Type |
|
Input Frequency |
950 to 2150 MHz |
|
Signal Input Level |
- 65 to -25 dBm |
|
Band Switch Control |
22KHz |
|
LNB Supply |
13V/18V, IMax 400mA |
|
Demodulation Type |
QPSK,8PSK,16APSK |
|
Symbol Rate |
2<Rs<45Mband(SCPC/MCPC) |
|
DVB-T/T2 INPUT/DEMODULATION | ||
Connector Type |
FEMALE Type |
|
Input Frequency |
48 to 862 MHz |
|
Signal Input Level |
-79.5dBm (MAX) |
|
ANT Supply |
5V, 12V/17V Imax 100mA |
|
Demodulation Type |
QPSK,16QAM.64QAM,256QAM |
|
LCD FEATURES | ||
LCD Type |
TFT TRANSMISSIVE |
|
Number of Dots |
480(RGB) x272 |
|
Active area (WxH) |
95.04x53.86 mm2 |
|
AV output interface | ||
Connector Type |
3.5 mm jack |
|
Video Output |
CVBS, |
|
Audio output |
Stereo Audio L/R output |
|
HDMI output connecter | ||
Format |
HDMI 1.3a |
|
AV input interface | ||
Connector Type |
3.5 mm jack |
|
Video input |
CVBS, |
|
Audio input |
Stereo Audio L/R input |
|
AUDIO/VIDEO PROCESSING | ||
Video decompression |
MPEG-2 MP@HL, MPEG-1 Decoding,MPEG-4 ASP@L5 HD resolution,H.264 MP&HP@L4,HW JPEG decoding |
|
Resolving rate |
PAL-25 frame@720*576,NTSC-30 frame@720*480, |
|
Signal compatibility |
Support conversion for different video formats |
|
Video Format |
4:3,16:9,By Pan & Scan and Letter Box conversion |
|
Audio decompression |
MPEG-1 Layer I/II ,MPEG-2 Layer I/II, |
|
Audio output mode |
Stereo, Mono,R/L |
|
DATA SERVICE PORT | ||
Connector |
USB |
|
Data protocol |
USB2.0 interface |
|
File management system |
NTFS,FAT32,FAT16 |
|
file format |
wma,mp3,mp4,avi,jpg,jpeg,bmp,img |
|
MICROPROCESSOR | ||
Microprocessor |
NOVATEK |
|
Clock Frequency |
500MHz |
|
SDRAM Memory |
1Gbit DDR3 |
|
Power SUPPLY | ||
Li-Ion Battery |
7.4V/3000mAh(The machine behind labeling shall prevail) |
|
Adapter |
OUTPUT :DC12V/1.5A, INTUPT :100-240VAC 50/60Hz(Will be subject to actual configuration) |
|
Power consumption |
Max. 10W |
|
PHYSICAL CHARACERSTICS | ||
Size (W x D x H) |
9.5x15.5x4.5(cm3) |
|
Net Weight |
1kg |
|

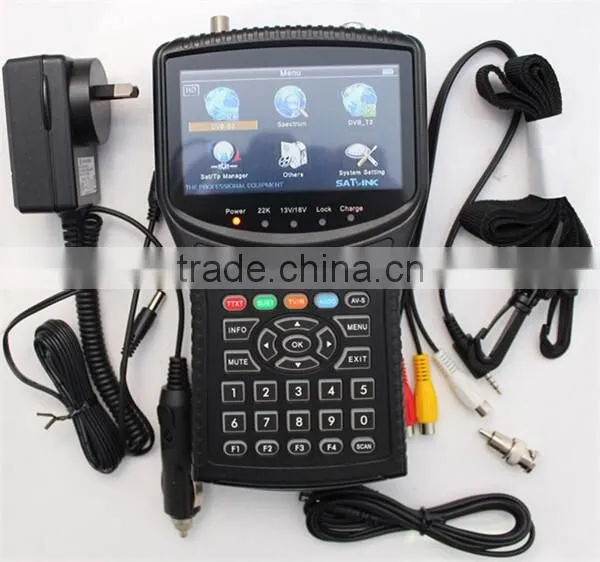

Accessories
Welcome To Dragnworth , We are a manufacturer of dvb satellite receiver with well-equipped testing equipment and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in many industries.
DHL: 3-4 days arrive
UPS: 4-5 days arrive
Fedex: 4-5 days arrive
EUEXP: 7-10days arrive
Best Service
1. 5 Times Test Before Shipment.
2. Two Years Warranty
3. Good Protectively Package
4. Replacement for Spare Parts if there is any faulty
5. Timely Parcel Tracking
6. Better offer on Bulk qty and reorders
Contacts
skype: andy-dragonworth
Phone No. :0086 18664395489
Trademanger: cn1510243630
How to select expected items in the various & complex market?
How to Select = High Quality + Strict Quality Control + Aging Time + Prompt Shipping Time + Professional & Quick Reply + Risk Free
Dragonworth = Assured Quality + 5 Steps Strict QC + 48 Hours Aging Time + Ship in 24 Hours + Superior 99.8% Customer Satisfaction + 2 year Warranty + Easy Returns Policy
