Gold mining classifying equipment spiral sorting machine
- 50 Set / Sets per Month
- Qingdao Shanghai or any other China port
- Ore mining spiral sand classifier
- China manufactor spiral classify
- Durable classifing machine spiral classifier with high weir single screw
- Durable classifing machine spiral classifier classifying equipment
- Gold mining machine classifying equipment spiral classifier mining equipment
- Gold mining machine classifying equipment spiral classifier
Product Details
Place of Origin: | Shandong, China | Brand Name: | Zhaoxin | Model Number: | FLG-7 |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Standard packaging for spiral sorting machine
Product Description
Gold mining classifying equipment spiral sorting machine
Features of spiral sorting machine
1. In order to match the cylinder feeder of ball mill, a sand scraper is added, which makes the ore pulp flow from the side to the cylinder feeder of ball mill.
2. Some models of mining spiral classifiers equipment adopts rolling bearing instead of the original bearing, which reduces the frictional resistance, and avoids frequent replacement and maintenance of the bearings. The space required for installation and maintenance is reduced by adopting ZQ reducer.
3. The lubrication parts are improved, and grease pumps are arranged for large-size products, making the lubrication more reliable.
Type | Model | Specification | Spiral Diameter(mm) | Spiral Speed(r/m) | Water | Dip. Angle | Productive capacity | Diving Motor | Lift Motor | Weight (kg) | ||||
L mm | W mm | Over- flowing | Return- flowing | Model | Power (KW) | Model | Power (KW) | |||||||
High weir single screw | FLG-5 | Φ500 | 500 | 8.5~15.5 | 4500 | 555 | 14°~18°30’ | 32 | 143~261 | Y90L-6 | 1.1 | Manual Operation |
| 1600 |
FLG-7 | Φ750 | 750 | 4.5~9.9 | 5500 | 830 | 14°~18°30’ | 65 | 256~564 | Y132S-6 | 3 | Manual Operation |
| 2900 | |
FLG-10 | Φ1000 | 1000 | 3.5~7.6 | 6500 | 1112 | 14°~18°30’ | 85 | 473~1026 | Y132M2-6 | 5.5 | Manual Operation |
| 4400 | |
FLG-12 | Φ1200 | 1200 | 6 | 6500 | 1372 | 14°~18°30’ | 155 | 1170~1600 | Y132M2-6 | 5.5 | Y90L-4 | 1.5 | 8800 | |
FLG-15 | Φ1500 | 1500 | 2.5~6 | 8265 | 1664 | 14°~18°30’ | 235 | 1140~2740 | Y160M-6 | 7.5 | Y100L1-4 | 2.2 | 11680 | |
FLG-20 | Φ2000 | 2000 | 3.6~5.5 | 8400 | 2200 | 14°~18°30’ | 400 | 3890~5940 | Y160L-6/4 | 11/15 | Y100L2-4 | 3 | 20450 | |
FLG-24 | Φ2400 | 2400 | 3.64 | 9130 | 2600 | 14°~18°30’ | 580 | 6800 | Y160L-4 | 15 | Y100L2-4 | 3 | 25650 | |
FLG-30 | Φ3000 | 3000 | 3.2 | 12500 | 3200 | 14°~18°30’ | 890 | 11650 | Y200L2-6 | 22 | Y113M-4 | 4 | 37000 | |
High weir double screw | 2FLG-12 | Φ1200 | 1200 | 6 | 6500 | 2600 | 14°~18°30’ | 310 | 2340~3200 | Y132M2-6 | 5.5×2 | Y 90L-4 | 1.5×2 | 15840 |
2FLG-15 | Φ1500 | 1500 | 2.5~6 | 8250 | 3200 | 14°~18°30’ | 470 | 2280~5480 | Y160M-6 | 7.5×2 | Y100L-4 | 2.2×2 | 22100 | |
2FLG-20 | Φ2000 | 2000 | 3.6~5.5 | 8400 | 4280 | 14°~18°30’ | 800 | 7780~11880 | Y160L-6/4 | 11×2 15×2 | Y100L2-4 | 3×2 | 36400 | |
2FLG-24 | Φ2400 | 2400 | 3.67 | 9130 | 5100 | 14°~18°30’ | 1160 | 13600 | Y240L-4 | 30 | Y100L2-4 | 3×2 | 45874 | |
2FLG-30 | Φ3000 | 3000 | 3.2 | 12500 | 6300 | 14°~18°30’ | 1785 | 23300 | Y225M-4 | 45 | Y112M-4 | 4×2 | 73030 | |
Immerged single screw | FLC-10 | Φ1000 | 1000 | 6~7.4 | 8400 | 1112 | 14°~18°30’ | 75 | 473~1026 | Y132M2-6 | 5.5 | Manual Operation |
| 6000 |
FLC-12 | Φ1200 | 1200 | 5~7 | 8400 | 1372 | 14°~18°30’ | 120 | 1170~1600 | Y160M-6 | 7.5 | Y100L1-4 | 2.2 | 11020 | |
FLC-15 | Φ1500 | 1500 | 2.5~6 | 10500 | 1664 | 14°~18°30’ | 185 | 1140~2740 | Y160L-6/4 | 7.5 | Y100L1-4 | 2.2 | 15340 | |
FLC-20 | Φ2000 | 2000 | 3.6~5.5 | 12900 | 2200 | 14°~18°30’ | 320 | 3890~5940 | Y180M-4 | 11/15 | Y100L2-4 | 3 | 29060 | |
FLC-24 | Φ2400 | 2400 | 3.64 | 11130 | 2600 | 14°~18°30’ | 455 | 6800 | Y200L-4 | 18.5 | Y112M-4 | 4 | 37267 | |
FLC-30 | Φ3000 | 3000 | 3.2 | 14300 | 3200 | 14°~18°30’ | 705 | 11650 | Y160M-6 | 30 | Y112M-4 | 4 | 43500 | |
Immerged double screw | 2FLC-12 | Φ1200 | 1200 | 6 | 8400 | 2600 | 14°~18°30’ | 240 | 1770~2800 | Y160M-6 | 7.5×2 | Y90L-4 | 1.5×2 | 19610 |
2FLC-15 | Φ1500 | 1500 | 2.5~6 | 10500 | 3200 | 14°~18°30’ | 370 | 2280~5480 | Y160M-6 | 7.5×2 | Y100L2-4 | 2.2×2 | 27450 | |
2FLC-20 | Φ2000 | 2000 | 3.6~5.5 | 12900 | 4280 | 14°~18°30’ | 640 | 7780~11880 | T160L-6/4 | 11×2 15×2 | Y100L2-4 | 3×2 | 50000 | |
2FLC-24 | Φ2400 | 2400 | 3.67 | 11130 | 5100 | 14°~18°30’ | 910 | 13700 | Y225S-4 | 37 | Y112M-4 | 4×2 | 65283 | |
2FLC-30 | Φ3000 | 3000 | 3.2 | 14300 | 6300 | 14°~18°30’ | 1410 | 23300 | Y225M-4 | 45 | Y112M-4 | 4×2 | 84870 |

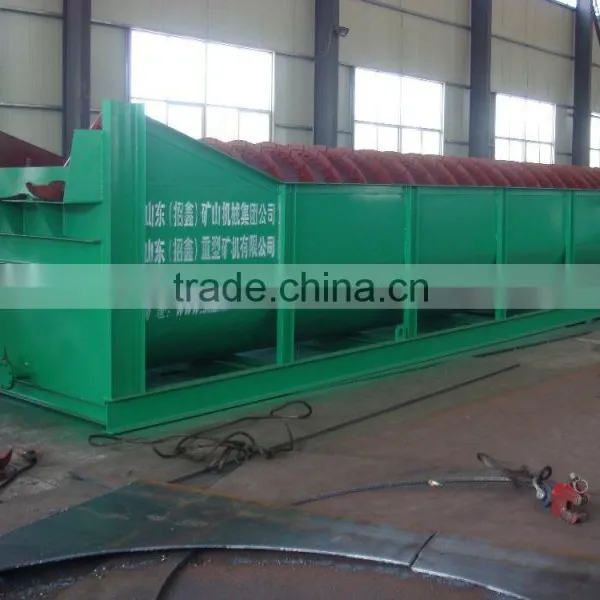

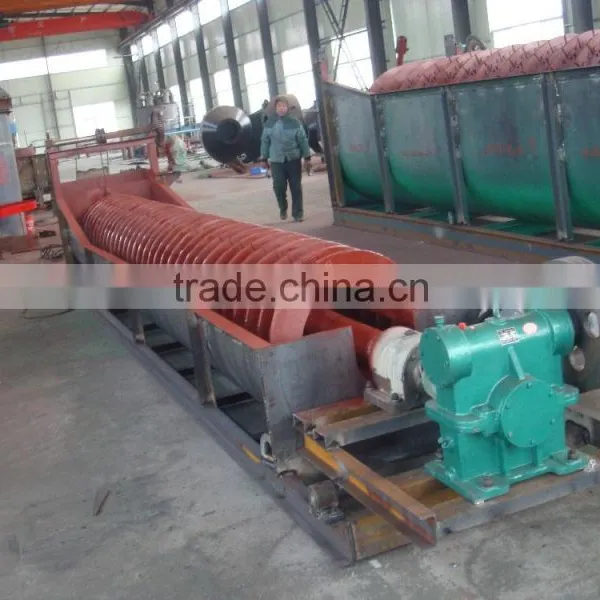

Detailed parts of spiral sorting machine
Safe shipment of spiral sorting machine
Certificate and honor
Shandong Zhaoxin Heavy-duty Mining Machinery Co., Ltd. is a professional manufacturer of all kinds of mining equipment, with ISO9001-2008 certificated.
With 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area.
Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, flotation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.
If any question, please feel free to contact us.
Company Profile
Shandong Zhaoxin Heavy-Duty Mining Machinery Co., Ltd is located at No.66 Jinlong Road, Zhaoyuan Economic & Technological Development Zone which is a national economic development zone in China. With 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area. Zhaoxin machinery has exported to more than 20 countries.
The company mainly manufactures mineral processing and smelting equipment with daily processing capacity of 50 to 5000 MT and automatic control equipment with 20 varieties and more than 200 items. Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, floatation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training. The company has occupied a good reputation in this industry by fist class of quality, reasonable price and durable operation life. The company is ISO9001:2008 certificated.
Mr. Luan Wanxin, chairman and general manager of the company, greet all friends from home and abroad. We are sure that our service from heart and soul will make all customers satisfied from head to toe.
