Spiral Classifier Equment High Weir Single Screw Classifying Equipment From China

Spiral Classifier Equment High Weir Single Screw Classifying Equipment From China thumbnail-1
Spiral Classifier Equment High Weir Single Screw Classifying Equipment From China thumbnail-2
Spiral Classifier Equment High Weir Single Screw Classifying Equipment From China thumbnail-3
Spiral Classifier Equment High Weir Single Screw Classifying Equipment From China photo-1
Spiral Classifier Equment High Weir Single Screw Classifying Equipment From China photo-2
Spiral Classifier Equment High Weir Single Screw Classifying Equipment From China photo-3
US$ 1,000 - 5,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Zhaoxin
Model Number:
FLG
Contact Supplier Request Quote Chat Now
Shandong Zhaoxin Heavy-Duty Mining Machinery Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai or any other China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Zhaoxin
Model Number FLG
Condition New
After-sales Service Provided Engineers available to service machinery overseas

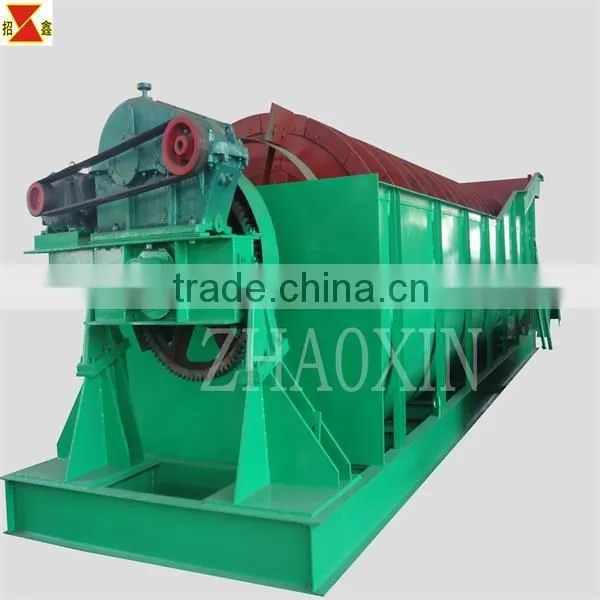

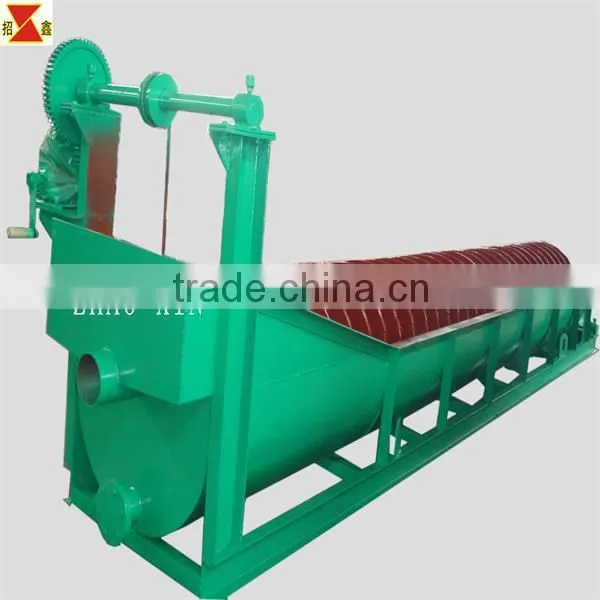

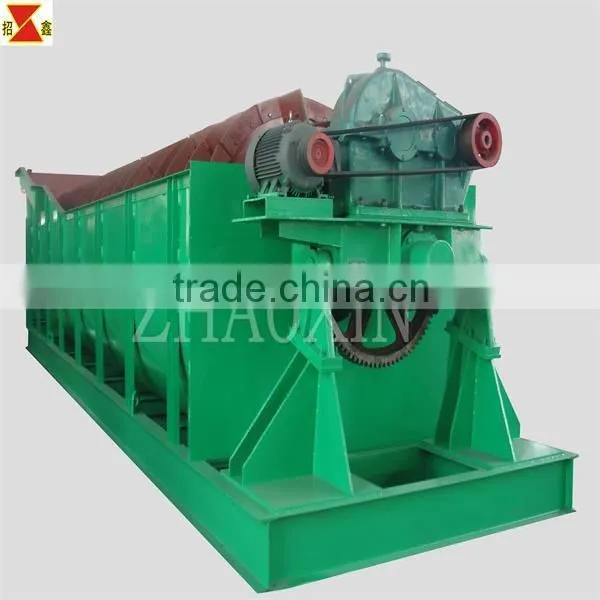

Spiral classifier equment high weir single screw classifying equipment from China

Product Description

Features of spiral classifier

1. In order to match the cylinder feeder of ball mill, a sand scraper is added, which makes the ore pulp flow from the side to the cylinder feeder of ball mill.

2. Some models of mining spiral classifiers equipment adopts rolling bearing instead of the original bearing, which reduces the frictional resistance, and avoids frequent replacement and maintenance of the bearings. The space required for installation and maintenance is reduced by adopting ZQ reducer.

3. The lubrication parts are improved, and grease pumps are arranged for large-size products, making the lubrication more reliable.

Spiral classifier equment high weir single screw classifying equipment from China

Technical parameter of spiral classifier

Type

Model

Specification

Spiral Diameter(mm)

Spiral Speed(r/m)

Water

Dip. Angle

Productive capacity

Diving Motor

Lift Motor

Weight

(kg)

L

mm

W

mm

Over-

flowing

Return-

flowing

Model

Power

(KW)

Model

Power

(KW)

High weir single screw

FLG-5

Φ500

500

8.5~15.5

4500

555

14°~18°30’

32

143~261

Y90L-6

1.1

Manual Operation



1600

FLG-7

Φ750

750

4.5~9.9

5500

830

14°~18°30’

65

256~564

Y132S-6

3

Manual Operation



2900

FLG-10

Φ1000

1000

3.5~7.6

6500

1112

14°~18°30’

85

473~1026

Y132M2-6

5.5

Manual Operation



4400

FLG-12

Φ1200

1200

6

6500

1372

14°~18°30’

155

1170~1600

Y132M2-6

5.5

Y90L-4

1.5

8800

FLG-15

Φ1500

1500

2.5~6

8265

1664

14°~18°30’

235

1140~2740

Y160M-6

7.5

Y100L1-4

2.2

11680

FLG-20

Φ2000

2000

3.6~5.5

8400

2200

14°~18°30’

400

3890~5940

Y160L-6/4

11/15

Y100L2-4

3

20450

FLG-24

Φ2400

2400

3.64

9130

2600

14°~18°30’

580

6800

Y160L-4

15

Y100L2-4

3

25650

FLG-30

Φ3000

3000

3.2

12500

3200

14°~18°30’

890

11650

Y200L2-6

22

Y113M-4

4

37000

 Spiral classifier equment high weir single screw classifying equipment from China

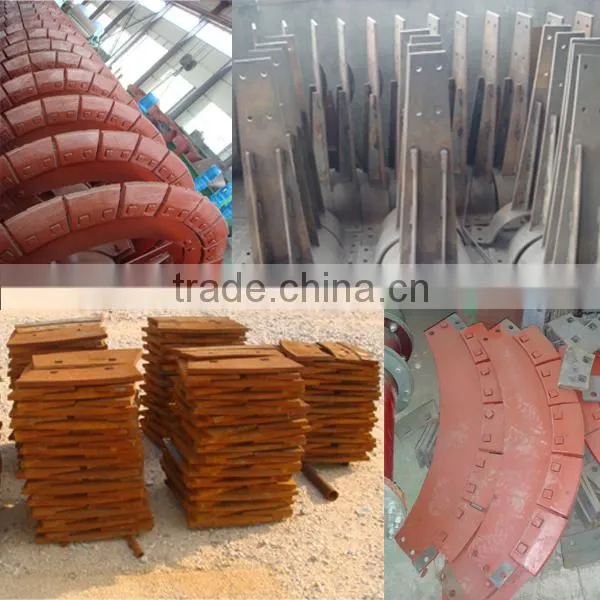

Detailed parts of spiral classifier
Spiral classifier equment high weir single screw classifying equipment from China
Packaging & Shipping

  Safe shipment of spiral classifying

Spiral classifier equment high weir single screw classifying equipment from China

Company Information

  Certificate and honor

Spiral classifier equment high weir single screw classifying equipment from ChinaSpiral classifier equment high weir single screw classifying equipment from China

Shandong Zhaoxin Heavy-duty Mining Machinery Co., Ltd. is a professional manufacturer of all kinds of mining equipment, with ISO9001-2008 certificated.With 30 years manufacturing experience and scientific management and strong financial strength, the company has become a large and leading manufacturer in mineral processing and smelting equipment for nonferrous metals and nonmetals in Shandong area.Among processing equipment, there includes feeding, crushing, sieving, grinding, classification, stirring, flotation, magnetic separation and cold separation. Moreover, the company offers full service from mining, prospecting, mineral processing experiment, project technical design, machinery and equipment installing to technical conduction and operators training.

Spiral classifier equment high weir single screw classifying equipment from China



If you have any problems, please feel free to contact us. We would do our best to solve them as soon as possible. Welcome to negotiate the price, you can gain the maximum efficiency with the minimum investment.
