Infrared qr code scanner fingerprint sensor module capacitive sensor with wifi

FOB Price

US$ 220 - 498 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	Corewise
Model Number	CFON640

Product Description

Physical Parameter
Design	PDA
Keys	4
Dimensions	156.879.522.2mm
Weight	400g
Performance Parameter
OS	Android 6.0
CPU	Qualcomm 8909, 1.2G quad-core
Storage	8GB ROM+1GB RAM
Communication band	FDD-LTE: B1/B3
	TDD-LTE: B38/B39/B40/B41
	WCDMA: B1/B2/B5
	CDMA2000: BC0
	TD-SCDMA: B34/B39
	GSM: 850/900/1800/1900
	TFT LCD 4.3 inch, Display Resolution:800*480, sunlight readable
Touch Screen	Capacitive touch screen, Corning Gorilla Glass LCD
Camera	Rear 8.0M, auto focus, flashlight (Front 2.0M optional)
GPS	Supported, 10m
WIFI	IEEE 802.11b/g/n
Bluetooth	BT4.0 LE
Optional Functions
Barcode Scanner(optional)	1D/2D barcode
UHF RFID (optional)	0~2m, ISO 18000-6C supported
Contact IC Card (optional)	Compatible with ISO 7816-3 and EMV 4.2 payment standard
Contactless IC Card(optional)	ISO/IEC 14443 A, ISO/IEC 14443B, ISO15693
PSAM Card(optional)	2 PSAM card slots
NFC (optional)	Supported
Fingerprint(optional)	Live, biometric fingerprint sensor, capacitive, 508DPI, time<1s, FBI certificated
Other Parameter
Memory card extension	T-Flash/Micro SD card, up to 32GB
Battery Pack	3.7V, 3000mAh
USB	Mini-USB 10pin
AC/DC Adapter	DC 5.5V 1.2A
Voice Call	Supported
Receiver	Supported
Speaker	Supported
Earphone	Supported, 3.5mm
Vibration Prompt	Supported
Ruggedness	IP65
Reliability	MTBF no less than 5000h

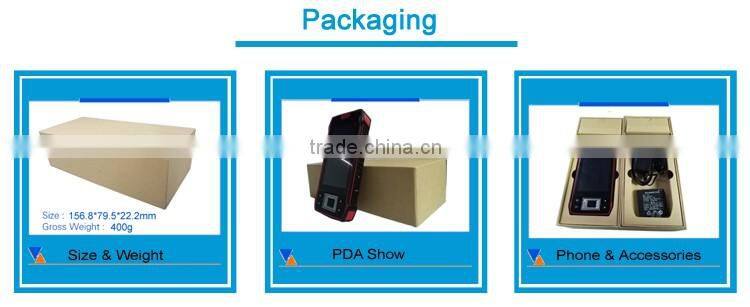

Packaging

Application

Related Products

FAQ

1.Q:Are you manufacturer?

A:Yes.Our company headquarters is located in Nanjing of China, factory in shenzhen.

2.Q:Can you provide application software for the hardware?

A:We provide free SDK and User manual of all API to support your development or programming.

3.Q:What is the warranty?

A:The warranty time is 1 year without man-made damage.

4.Q:Does the device have the language default as English?

A:Of course, our device supports multi-language such as English,Spanish, Portuguese ,French, German,Polish,Japanese, Russian and so on.

5.Q:Can your device install the Android Apps that our customers provide?

A:No problem. Just send us your Apps which you need to get the liscense of the apps and then our Engineers can do that for you.
