Specifications
Automatic Feed Portable Laser Cutting Machine1)Processing size:1800mm*1000mm
2)Cutting speed:0-40000mm/min
3)OEM

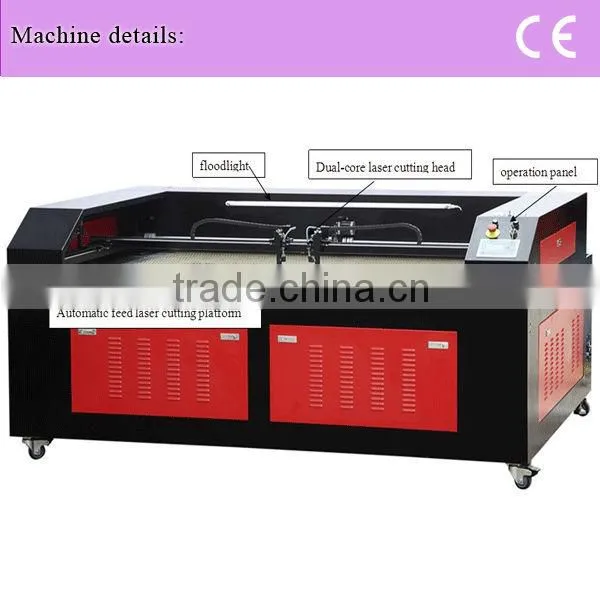

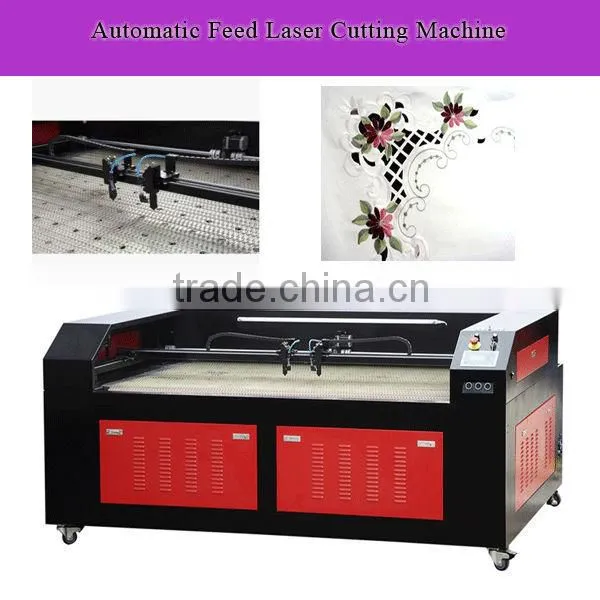

Name: 2013NEW! Automatic Feed Portable Laser Cutting Machine
Application:
The machine Automatic feeding, without human waiting. Suitable for continuous long-running . Mainly used for cutting of non-metallic products such as fabrics, like shoes, umbrella cloth, outdoor advertising banners and so on.
Features:
1, Comprehensive support the DST, CAD, CORELDRAW, CAM, and other design software, friendly interface, close to the site requirements of the industry to facilitate the use of all types of people.
2, Can configure different professional accessories, such as different specifications honeycomb panels or metal grid, depending on the user object to be processed.

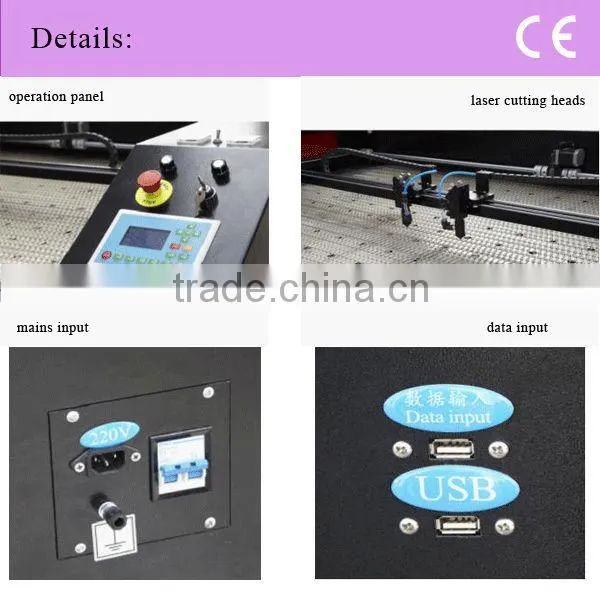

3. Equipped with high-performance stepper motor drives and USB 2.0 high-speed interface.
4, Multiple laser head at the same time work can substantially improve the work efficiency.
5, Integrated chassis (to improve the stability of the high-speed operation).
6, Multi-document features: You can store up to 128 job files, completely out of the computer case, the user can select a file on the engraving machine, easy to achieve mass production of 128 different products.
7, Professional cutting software with automatic layout, power outages continued carving and other functions, allowing users to more material saving, feel, easy.
Technical parameters:
Processing size |
1800mm*1000mm |
Laser medium |
Seal from type carbon dioxide laser |
optical maser wavelength |
10.6um |
Laser power |
60/80/100/120/130W optional |
Laser nuclear number |
mononuclear/dikaryon optional |
Cutting speed |
0-40000mm/min |
Engraving speed |
0-60000mm/min |
Positioning [setting] accuracy |
≤0.025mm |
File format supported |
AI,PLT,DXF,DST,WXZ etc |
operating ambient temperature |
0-45°C |
Cooling system |
One-piece constant temperature water chiller |
Total power |
≤1.5KW |
Power supply |
AC220V 50HZ/60HZ |
Weight |
400KG |
We are sincerely looking forward to receiving your inquiry. Thank you very much for your time.
