Specifications
Automatic Camera Positioning Trademark Cutting Machine1) Processing size:1000mm*800mm
2) Laser maser wavelength:1064nm

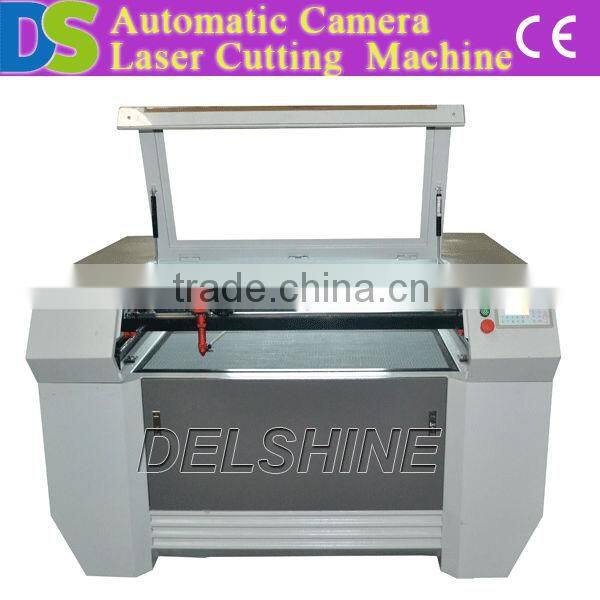

Automatic camera positioning trademark cutting machine
Range of application:
The DS-1080C3D Series automatic camera positioning trademark cutting machine is designed for the development of laser equipment for textile embroidery, trademark, woven label industry. In order to solve the needs of the profiled trademarks and class processing methods, the use of the most high-end DSP technology and leading pickup positioning image recognition system, save time, reduce labor costs and increase efficiency.

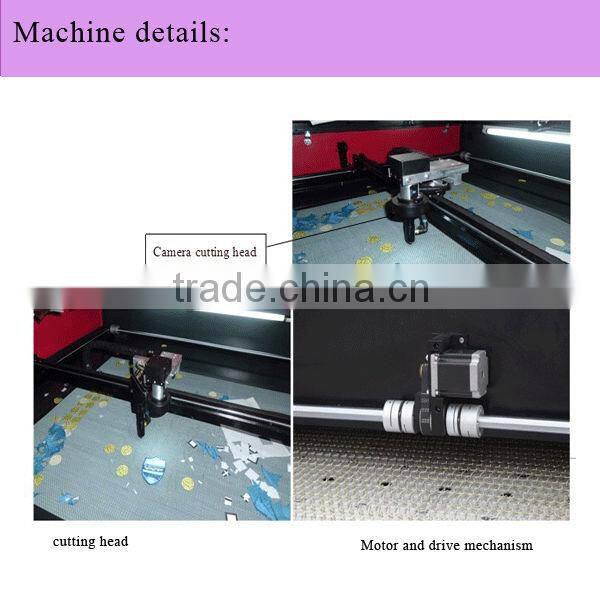

Features:
* Integrated chassis (to improve the stability of the high-speed operation).
* Configure a 3.2 megapixel camera, shooting graphics automatically find the object characteristics and cutting edge, and complete the cut. Break with traditional laser cutting manually bit.
* The use of red light scanning system, positioning more accurate knowledge map.
* Running speed, laser power adjustable, user-friendly operation.
* The high-performance AC servo motor, the series cutting machine run more smoothly, more accurate, faster.
Technical parameters:
Processing size |
1000mm*800mm |
Laser medium |
Seal from type carbon dioxide laser |
Laser maser wavelength |
1064nm |
Laser power |
60/80/100/120/130W optional |
Laser nuclear number |
mononuclear |
Cutting speed |
0-40000mm/min |
Engraving speed |
0-60000mm/min |
Dichroic Cutting |
256 color |
CCD Camera resolution |
3.2million pixels |
positioning [setting] accuracy |
≤0.025mm |
File format supported |
AI,PLT,DXF,DST,WXZ etc |
operating ambient temperature |
0-45°C |
Cooling system |
One-piece constant temperature water chiller |
total power |
≤1.5KW |
Power supply |
AC220V 50HZ/60HZ |
Weight |
300KG |
| Payment terms | a) T/T b) L/C |
| Delivery time |
a) 1 set, 15 days after receipt of your payment. b) 2-5 sets, 20 days after receipt of your payment. c) 5-10 sets, 30 days after receipt of your payment. |
