Help CenterDXDL-80 Automatic Tomato Ketchup Packing Machine
Related Products
-
DXDP-80 Automatic Tablet Packing MachineNegotiableMOQ: 1 Set -
Automatic Seeds Packing MachineUS$ 3,500 - 4,500MOQ: 1 Set
-
DXDK-80 Vertical Stick Packing MachineUS$ 3,500 - 4,500MOQ: 1 Set
-
DXDP-80 Automatic Tablet/Pill Packing MachineNegotiableMOQ: 1 Set
-
Automatic Liquid Milk Packing MachineUS$ 4,000 - 6,000MOQ: 1 Set
Specifications
Liquid Packing Machine1.PLC controller
2.Max. filling range: 50 ml
3.High quality and competitive price
4.CE certificate

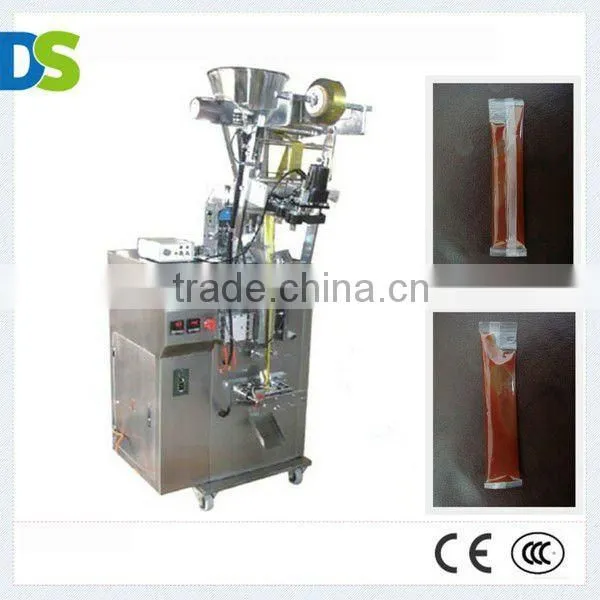

Automatic Liquid/Paste Packing Machine
Full automatic weighing+filling+bagging+sealing+cutting+counting+date printing.
Application:
Sticky or non-sticky liquid such as juice,honey, shampoo, milk, medicine liquid, vinegar, water, tomato sauce, tomato ketchup, oil... etc. Liquid products that is hot is ok for our machine.
If you want to make sure if it can pack for our machine, send us the packing film and product, we will test them on our machine and take video and sample bag for you, just email me for the address.
Technical Data:
| Model | DXDL-80 | ||
| Power supply | 220V, 50Hz, single phase | ||
| Power | 1.1W | ||
| Speed | 20-70 bags/min | ||
| Filling capacity | Max.50 ml | ||
| Film width | Maximum 200mm | ||
| Bag size | Length:40-120mm, Width:20-90mm | ||
| Style of bag sealing | 3-side sealing, 4-side sealing or back sealing | ||
| Measuring method | piston pump | ||
| N.W./G.W. | Approx. 185kg/280 kg | ||
| Dimension | L1000*W800*H1800mm | ||
Why our machine better than other similar machines?
1. Control system: The operation facility is controlled by Mitsubishi PLC, all functions are displayed on English digital screen.
2. Raw material: All stainless steel cover meets to international GMP standard.
3. Dosing system: Piston pump.
4. Photocell controller is easy to fix location, step motor to pull the packing film.
5. Adjustment: Automatic adjustment of pouch size and filling range, no need to change any machine parts.
6. Intelligent temperature controller is used in sealing and the error of sealing temperature is at plus or minus 2 degrees.
7. Outstanding sealing system: Air cylinder and high-powered heat sealing structure ensure sealing of the bag firm, neat and with good airtightness.
8. OEM is acceptable and the machine that has special bag-size or requirements can be designed and produced specially.
9. Ribbon code printer, elevator, conveyor are as an option.
10. 10 bags in roll is ok
There is more item information in our databases, welcome to inquire us anything. We will reply you within 24 hours.
Packing materials: Several kinds of heat-seal lamination, like PET/Plated AL/PE, PET/PE, Nylon etc.

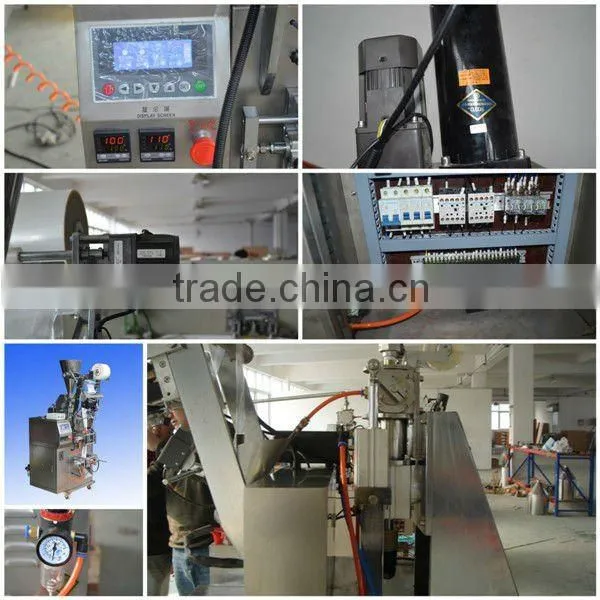

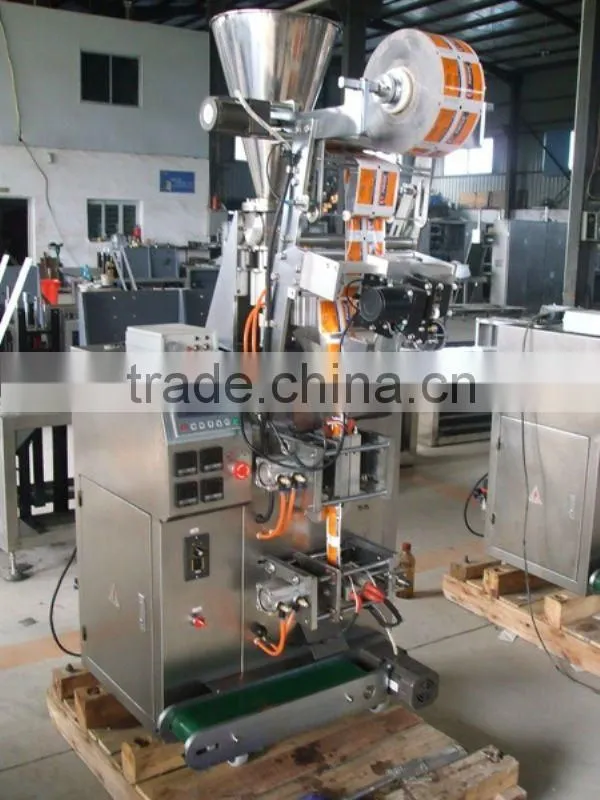

Pictures:
Sample bag:
