Specifications
1.Capcity:1.6m3/h-400m3/h2.head:5-125m
3.Motor Power:0.75-110KW
4.Temperature between -20-150degree
5.shaft Power:0.117-90K
Capcity:1.6m3/h-400m3/h
head:5-125m
Motor Power:0.75-110KW
Shaft Power:0.117-90K
Temperature: between -20-150degree
Applicable industry
Chlor -- alkali, sodium carbonate industry.
Medical science, Fertilizer, pesticide.
Petrochemical, chemical fiber, paper making industry.
Dyeing industry, environmental protection engineering, water treatment system.

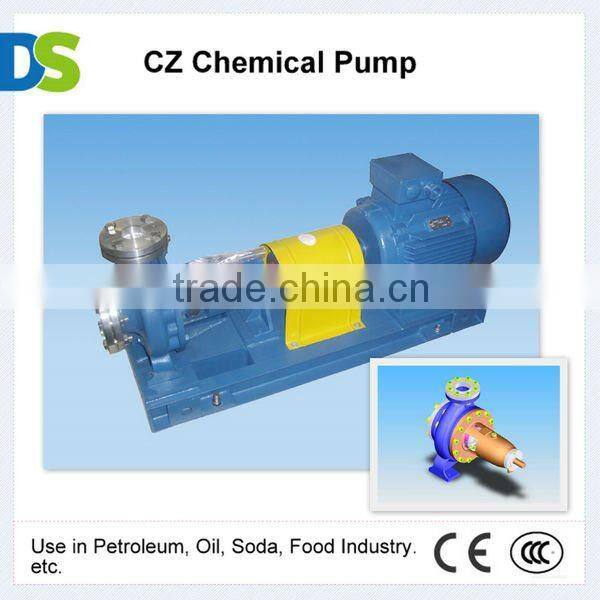

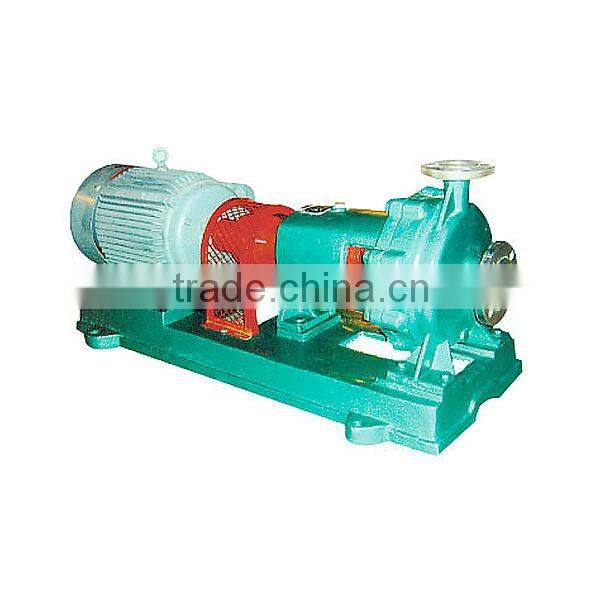

Structure
It is of horizontal rear - open structure, pump head is in direct connection with motor, and installed on bottom plate, impeller is rear - open type, there're three bearings. Shaft seal adopts external installed mechanical seal, equipped with cooling device.
Oil lever of bearing can be monitored from oil lens. In general, it features compact and rational structure. There's support casted with pump body, available to bear load of pipeline and transit directly to foundation.
Pump rotor will not be deformed due to load assumed by pump to assure optimum service life of bearing and mechanical seal.
As maintenance, no need to disassemble pipeline in connection with pump body, as long as disconnect bolt of bracket and pump body to maintain impeller and mechanical seal conveniently.
Rotation direction: clockwise viewed from motor side.
Matched with Y type common motor and YB explosion - proof motor.
Sealing type
Mechanical seal or packing seal.
Material of main components contacting with media as follows
ZG1Cr18Ni9 ZG1Cr18Ni9Ti ZG0Cr18Ni12Mo2Ti ZG1Cr18Ni12Mo2Ti ZG00Cr14Ni14Si4 ZG00Cr18Ni10 ZGCr28 ZG1Cr18Mn13Mo2uN, and 316, 316L, Monel

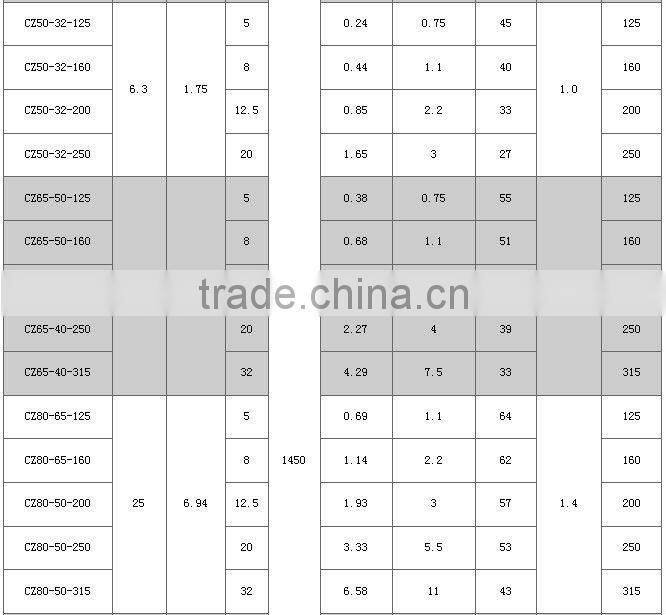

7.Performance parameter of CZ Series of heat-resistant wear-resistant ono clogging alkali pump
You can select products from the following table
