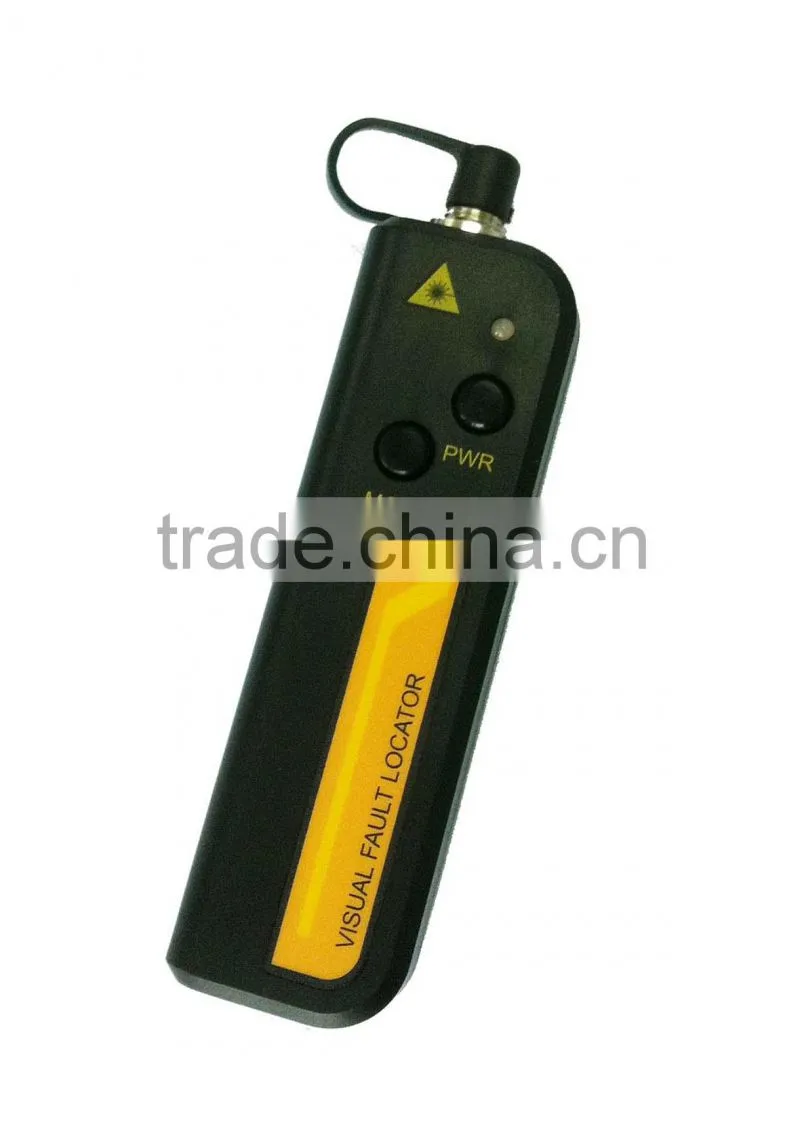

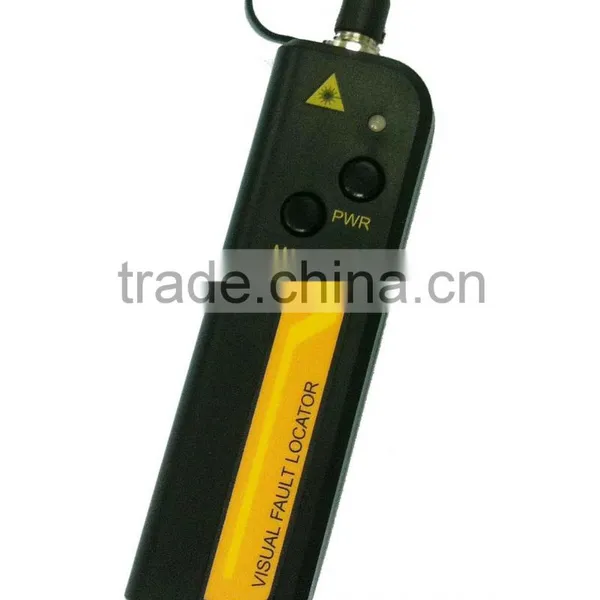

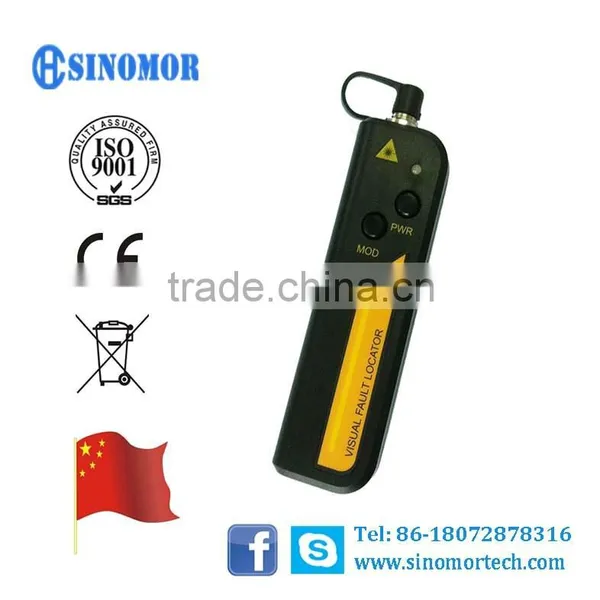

Help CenterVFL6500 Visible Laser Source
Related Products
VFL6500 Series Visible Laser Source is the best selling model. It provides a stable visiblered light for users to easily locate fiber faults, broken or micro-bend in installation or maintenance of optical network.
With the modulation function, VFL6500 Series Visible Laser Source is also applicable for end to end fiber identification.
Features
- Visible Laser Source
-
650nm or 635nm
- Pocket size and light weight
- Constant and stable output power
- CW or 2Hz modulated signal
- Low battery warning.
- Up to 40 hours battery life
Specification
Model |
VFL6500 |
Central Wavelength (nm) |
650nm±10nm |
Emitter |
FP-LD |
Output Power (mw) |
1/10/15/20 |
Connector |
2.5mm universal |
Modulation (Hz) |
2 |
Battery |
AAA (2pcs) |
Operating Time (hrs) |
40
|
Operating Temperature (°C) |
-10~+60 (°C) |
Storage Temperature (°C) |
-25~+70 (°C) |
Dimension (mm) |
100*30*18 |
Weight (g) |
60 |
Standard Accessories
1) Main Unit
2) Battery
3) Cleaning Stick
4) Carrying Bag
Ordering Information
VFL6500-OP
1) OP=Output Power
OP1: 1mw
OP2: 10mw
OP3: 15mw
0P4: 20mw
1. Standard warranty is 18 months.
2. Extended warranty is also available with addtional and reasonable cost.
3. Different output power is also available at your request.
1. Visible Laser Source + cleaning stick+carrying pouch+batter+carton box.
