Help CenterVFL6502 Visible Fault Finder
Related Products
Specifications
1. visible fault finder2. 650nm or 635nm wavelength

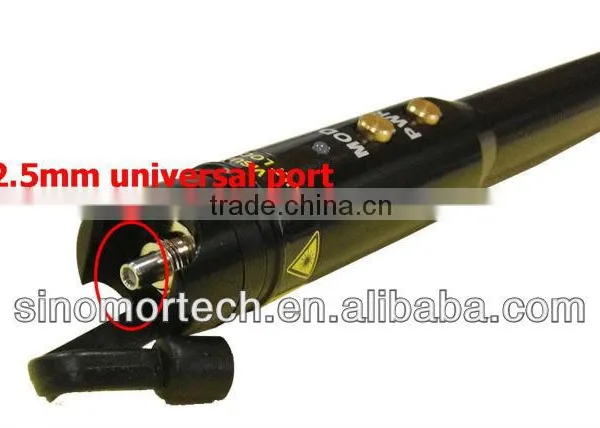

3. 2.5mm universal connector
4.
Overview
VFL6502 Series visible fault finder is to quick and visibly find the fiber broken or micro-bend.
VFL6502 Series visible fault finder use 650nm or 635nm visible laser to check the faults.
To meet the different test distance,VFL 6502 Series visible fault finder can provide the different output power,like 1mw,3mw,5mw10mw,15mw,20mw,30mw....
The most important feature of VFL6502 Series visible fault finder is the constant output power.
It means the output power does not decrease with the working time.
In real test,this features can ensure the test distance and test quality.
VFL6502 Series visible fault finder adopts the aluminum alloy case, which could be painted to different colors.
The aluminum alloy material makes touching more confortable and smooth.

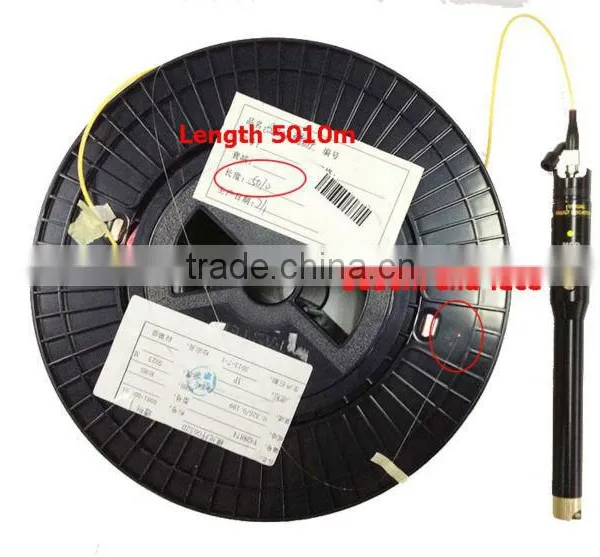

VFL6502 Series visible fault finder can easily locate fiber faults, broken or micro-bend in installation or maintenance of optical network.
With the modulation function, it is also applicable for end to end fiber identification.
Features
- Aluminum alloy material
- Constant output power
- CW or 2Hz modulated signal
- Low battery warning
- Up to 60 hours battery life
Specification
Model |
VFL6502 |
Central Wavelength (nm) |
650±10 or 635 ±10 |
Emitter |
FP-LD |
Output Power (mw) |
1/3/5/10/15/20/30/35…. |
Optical Connector |
2.5mm universal
|
Modulation (Hz) |
2~3 |
Battery |
AA (2pcs) |
Operating Time (h) |
>65@650nm&1mw
|
Operating Temperature (°C) |
-10~+45 |
Storage Temperature (°C) |
-40~+70 |
Dimension (mm) |
15*180 |
Weight (g) |
120 (excluding battery) |
Standard Accessories
1) Main Unit
2) Battery
3) Cleaning Stick
4) Carrying Bag
Ordering Information
VFL6502 -OP
1) OP=Output Power
OP1: 1mw
OP2: 10mw
OP3: 15mw
OP4: 20mw
OP5: 30mw
OP6: 45mw
OP7: 60mw
