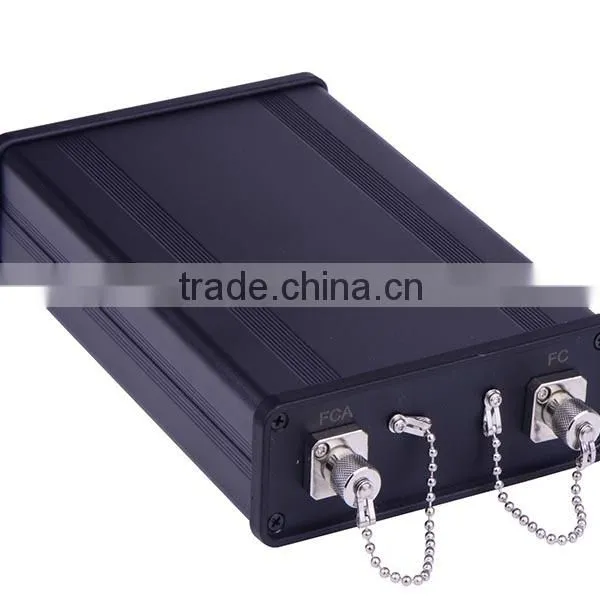

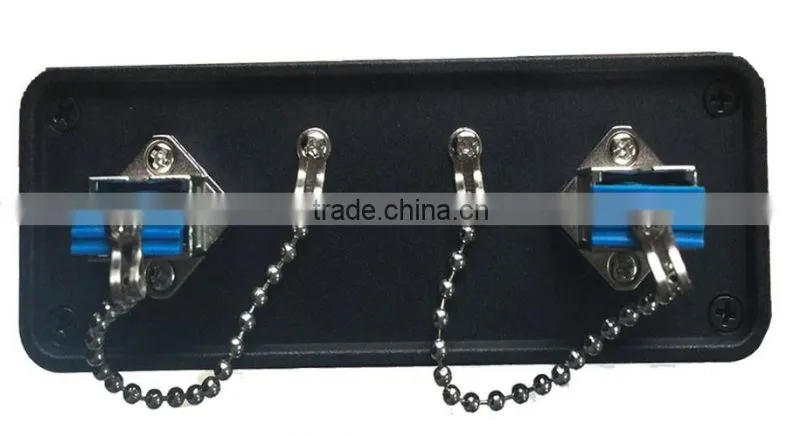

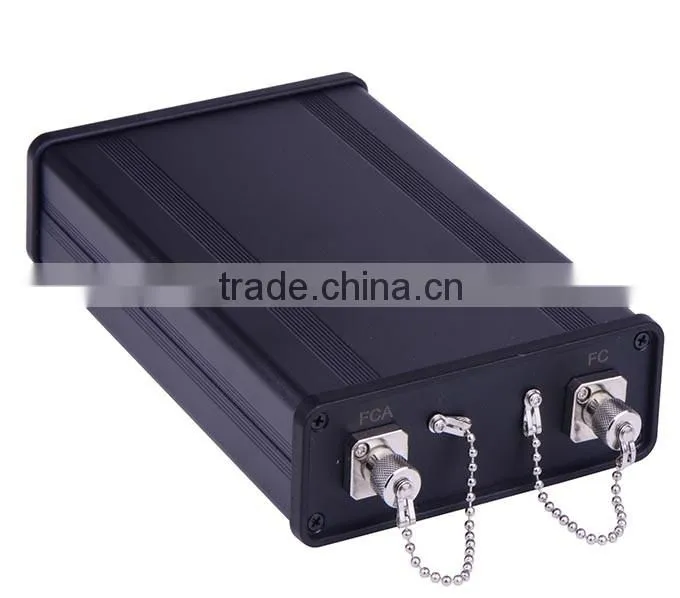

LCB-001 series launch cable is used to add in front of tested fiber link and the normal length is more than100 meters.
When the tested fiber link is short, OTDR is hard to test or test results are not stable. At this moment, if using the launch cable, it will extend the link length,emilinate the deadzone, decrease the fluctuation and ensure test accuracy.
When using launch cable , the beginning point would be the end point of launch cable. So OTDR would test insertion loss at 0 meter.
Features
1) Compact size and light weight
2) Various of connectors available
3) Available with various of cables
Specification
Model |
LCB-001 |
Typical Loss (dB) (@1310nm&1km) |
<1@1310nm and 1000m length |
Material |
Aluminum Alloy |
Color |
Black |
Weight (kg) |
0.5 (only box) |
Dimension (mm) |
140x96x3 170X96x3 190x96x3 |
Standard Accessories
1) Launch cable box
2) Cable
3) Test report
Ordering Information
LCB-001-FT-C-L-S | |||
Fiber Type (FT) |
Connector (C)
|
Length (L) |
Size (S) |
|
1) F1: SM (Corning 9/125um) 2) F2: MM (Corning 50/125um) 3) F3: MM (Corning 62.5/125um) 4) F4: OM3 (Corning 50/125um) 5) F5: G675A 9/125um
|
C1: FC/PC C2: FC/APC C3: SC/PC C4: SC/APC C5: ST/PC C6: LC C7: MU C8: Others |
L1: 100m L2: 200m ….: ….. L20: 2000m
|
S1: 140x96x33mm S2: 170x96x33mm S3: 190x96x33mm
|
All boxes have optional different types of connector and cables and will be provided the test report.
Customized products are available upon your request.
