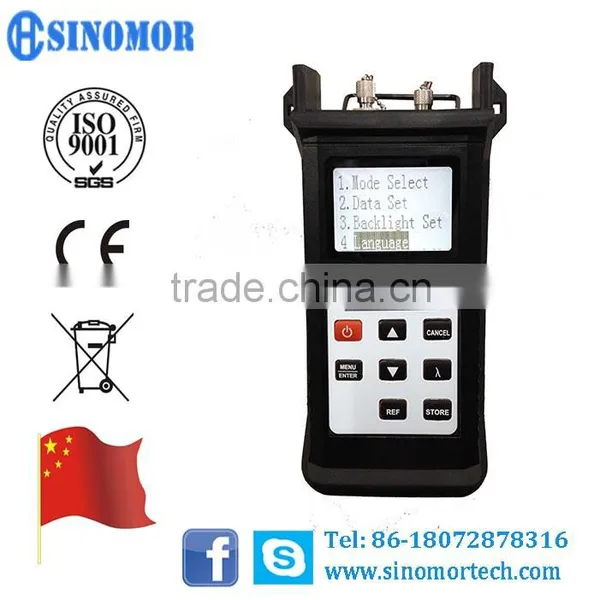

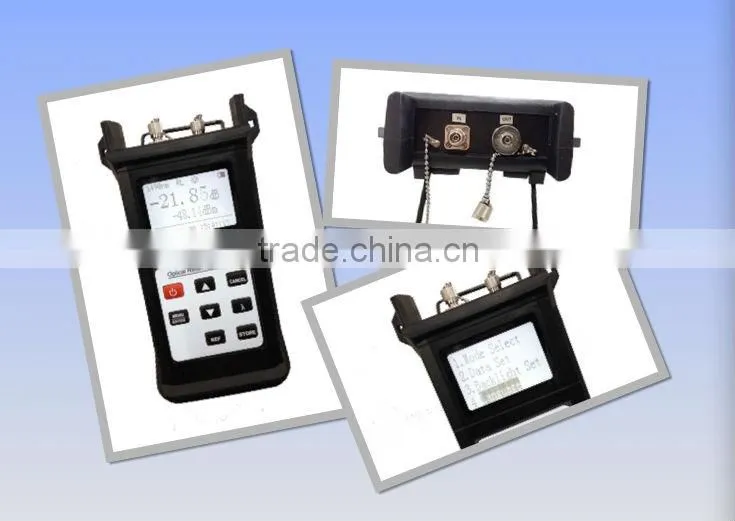

Help CenterRL6402 Fiber Optic Return Loss Meter,Multi-function Working as Power Meter,light Source,insertion Loss Meer
Related Products
-
RL6402 Optical Return Loss MeterUS$ 400 - 800MOQ: 1 Piece -
RL6402 Optical Return Loss TesterUS$ 400 - 800MOQ: 1 Piece
-
RL6402 Return Loss Tester,Multi-function OLS,OPM,US$ 400 - 800MOQ: 1 Piece
-
RL6402 Handheld Return Loss MeterUS$ 400 - 800MOQ: 1 Piece
-
LCB-001 OTDR Launch Cable,SM/MM/OM1/OM2/OM3/G657US$ 50 - 500MOQ: 1 Piece
Specifications
1. Fiber Optic Return Loss Meter2. Multi-function test
3. 500 records data storage
4. USB for data upload and power supply
During the installation and operation of fiber optic project, the RL6402 series Fiber Optic Return Loss Meter is very important parameter for the system. In the real optical communication system, there are many components in the system and the return
loss of each component will be partially or completely turned to the optical source and probably damage the source.
The RL6402 series Fiber Optic Return Loss Meter is used to test back-reflection of optical components and optical link, control
the optical connector quality and ensure the link safety.
The RL6402 series Fiber Optic Return Loss Meter can work as return loss tester, insertion loss tester, optical power meter and
optical light source function.
Features
- Fiber Optic Return Loss Meter
- Multi-function test
- 500 records data storage
- USB for data upload and power supply
- Dual Wavelength 1310/1550nm
- Insertion loss test function
- Wide insertion loss test range
-
High test accuracy
Specification
Model |
RL6402 |
Return Loss | |
Wavelength (nm) |
1310/1550 |
Spectrum Width (nm) |
<5 |
Output Power (dBm) |
-5 |
Stability (dB@30min) |
±0.05 |
Measurement Range (dBm) |
0~70 |
Accuracy (dB) |
±0.05 |
Resolution (dB) |
0.01 |
Connector |
FC/APC |
Insertion Loss (power meter) | |
Wavelength Range (nm) |
800~1700 |
Calibration Wavelength (nm) |
850/1300/1310/1490/1550/1625 |
Unit |
dB,dBm,W |
Measurement Range (dBm) |
-70~+6 |
Uncertainty (dB) |
±0.25 |
Communication Port |
USB |
Data Storage |
500 records |
Battery |
AAA (3pcs) |
Operating Temperature |
-10~+60 |
Storage Temperature |
-25~+70 |
Dimension (mm) |
180x90x36.5 |
Weight (g) |
380 |
Standard Accessories
1) Main Unit
2) Cleaning Stick
3) Battery
4) Carrying Bag
5) Manual
Ordering Information
RL6402-C-PA
1) C= Connector Type
C1: Fixed FC/APC
C2: Interchangeable FC/SC/ST/APC
2) PA= Power Adapter
PA1: USA power adapter
PA2: EU power adapter
1) The standard warranty is 18 months.
2) Extended warranty is also available with additional and reseasonable cost.
3) Customized products are also available as per your specific request.
1) Fiber Optic Return Loss Meter +manual+USB cable+cleaning cotton stick+carrying pouch+box.
