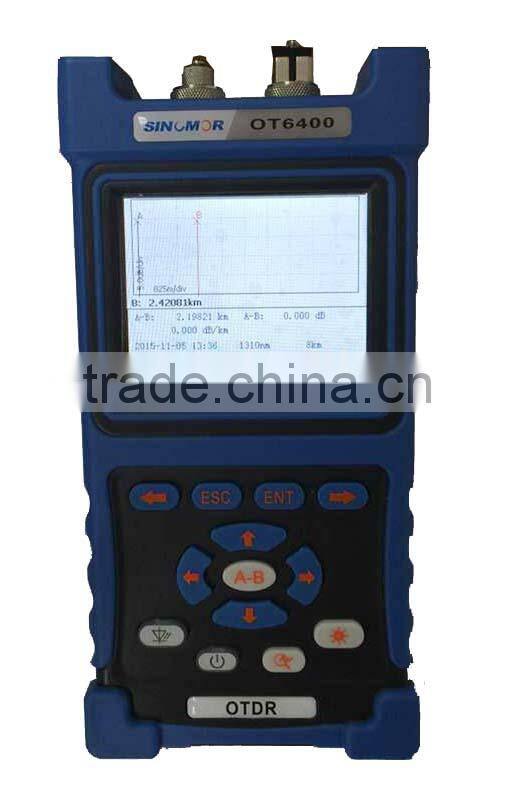

OT6400 Palm OTDR With VFL Function

Model

OT6400

Central Wavelength (nm)

1310/1550±20

850/1300±20

Fiber

SM

MM

Dynamic Range (dB)

30/29

36/35

40/39

22/36

Event Dead Zone (m)

1.5

1.5

1.5

3

Attenuation Dead Zone (m)

10

10

10

10

Screen

3.5” colorful touch screen

Connector

FC/SC/ST (UPC)

Test Distance (km)

0.5/1/2/4/8/16/32

/64/128

2/4/8/16/32 @850nm;

2/4/8/16/32/64/128/256@1300nm

Bandwidth (ns)

10/30/50/100/275/500

/1000/5000/10000

10/30/100/275/500/1000@850nm;

10/30/100/270/500/1000/5000@1300nm

Test Accuracy (m)

±(1m+sampling interval+0.005%×distance)

Attenuation Test Accuracy (dB)

±0.05

Reflection Test Accuracy (dB)

±5

VFL function

Output Power (mw)

≥2

Test Distance (km)

≥5

General Information

Data Storage

≥1000

Communication Port

USB

Working Time (hr)

10

Power Supply

AC / DC adapter: AC: 100V ~ 240V (1.5A), 50/60Hz

Battery

DC: 18V to 20V (2A)

Internal lithium-ion battery pack: 8.4V, 4400mAh

Operating Temperature (℃)

-5 ~ 50

Storage Temperature (℃)

-20~ 70

Relative Humidity

0 ~ 95%(no condensation)

Gross Weight (kg)

≤ 1

Dimension (mm)

208x110x56

No

Name

QTY

1

Palm OTDR Main Unit

1

2

Power cord

1

3

AC / DC power adapter

1

4

Certificate

1

5

User manual

1

6

CD-ROM (including simulation software)

1

7

Instrument plastic box (with strap)

1
