Help CenterVOA6700 Handheld Optical Variable Attenuator With Quad Wave 1310/1490/1550/1625nm And 0~60dB Attenuation
Related Products
-
VOA6700 Handheld Optical Attenuator With Quad Wave 1310/1490/1550/1625nm And 0~60dB AttenuationUS$ 300 - 800MOQ: 1 Set -
VOA6700 Fiber Optic Attenuator With Quad Wave 1310/1490/1550/1625nm And 0~60dB AttenuationUS$ 300 - 800MOQ: 1 Set
-
VOA6700 Mechnical Variable Optical Attenuator Quad-wavelength 1310/1490/1550/1625nmUS$ 300 - 1,000MOQ: 1 Piece
-
VOA6700 Fiber Attenuator,Quad-wavelength 1310/1490/1550/1625nmUS$ 300 - 1,000MOQ: 1 Piece
-
VOA6700 Variable Optical AttenuatorUS$ 300 - 1,000MOQ: 1 Piece
Specifications
1. Handheld optical variable attenuator2. Wide attenuation range 0~60dB
3. High attenuation precision
4. Quad-wavelength

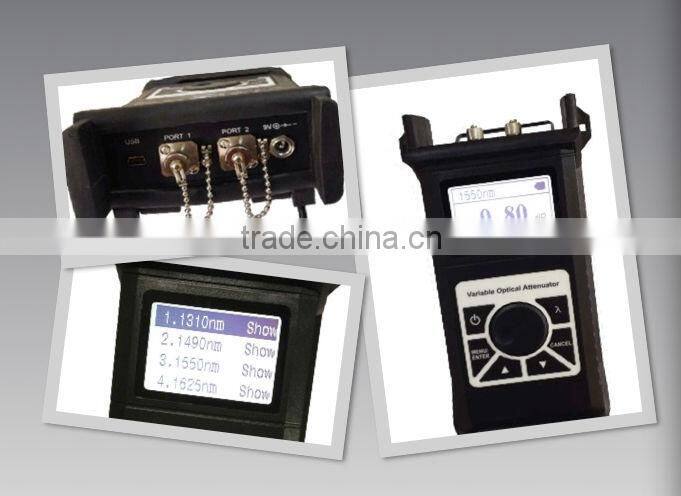

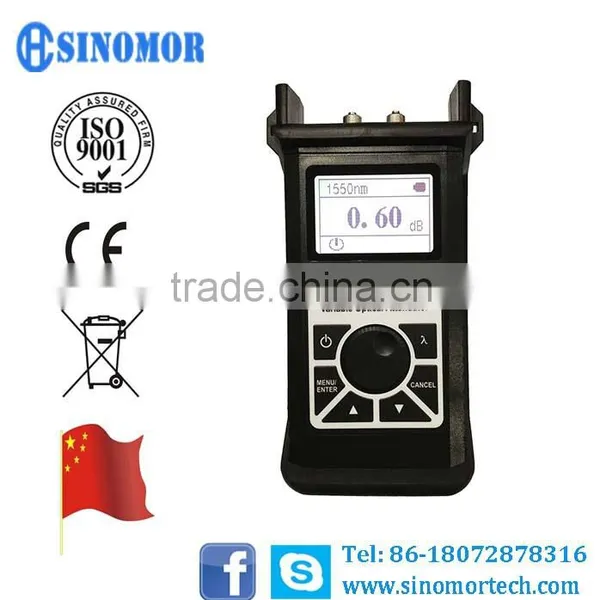

VOA6700 series handheld optical variable attenuator is a mechanical attenuator which provides 0~60dB high precision attenuation.
Calibrated at 1310/1490/1550/1625nm, VOA6700 series handheld optical variable attenuator provide
continuous and variable attenuation for FTTX project and PDH,SDH and modular CATV project.
Features
- Handheld optical variable attenuator
-
Quad-wavelength 1310/1490/1550/1625nm
- 0~60dB wide attenuation range
- High precision attenuation
- 0.05dB attenuation step
- Good repeatability
- Attenuation value in dB or dBm
- 10 minutes Auto-off function
- Lowe power indication
-
Widely used in FTTX,PDH,SDH,CATV
Specification
Model |
VOA6700 |
Wavelength Range (nm) |
1260~1650 |
Fiber Model (um) |
9/125 |
Optical Connector |
FC/PC |
Calibration Wavelength (nm) |
1310/1490/1550/1625 |
Attenuation Range (dB) |
0~60 |
Resolution (dB) |
0.05 |
Insertion Loss (dB) |
<2.5 |
Linearity (dB) |
±0.5 |
Repeatability (dB) |
±0.2 |
Attenuation Accuracy (dB) |
±0.8 |
Back Reflection (dB) |
>35(typical value 40) |
Max Acceptable Input (dBm) |
+27 |
Battery (v) |
7.4(rechargeable) |
Power Adapter (v) |
8.4 |
Operation Temperature (°C) |
0~+40 |
Storage Temperature (°C) |
-10~+60 |
Dimension (mm) |
180x90x36.5 |
Weight (g) |
450 |
Standard Accessories
1) Main Unit
2) Cleaning Stick
3) Battery
4) Charger
5) Power Adapter
6) Carrying Bag
7) Manual
Ordering Information
|
VOA6700-C-PA
| |
|
Connector (C) |
Power Adapter (PA) |
|
C1: Standard FC C2:Interchangeable FC/SC |
PA1: USA power adapter PA2: EU power adapter |
1. The standard warranty is 18 months.
2. Extended warranty is also available with additional and reasonable cost.
3. Customized products are also available as per your specific request.

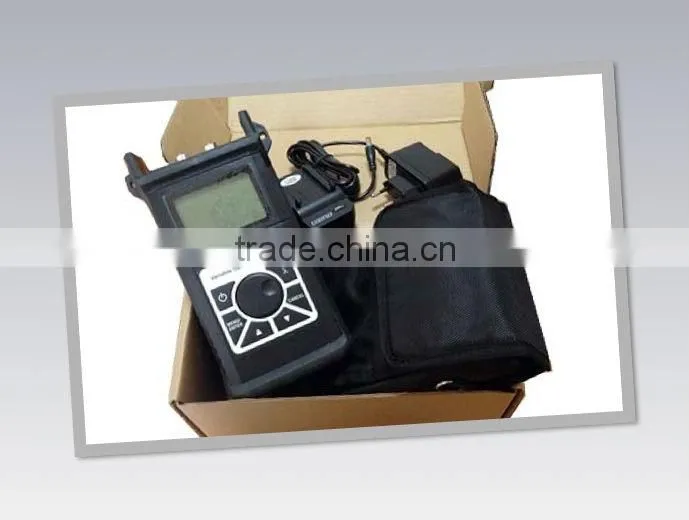

1. Handheld optical variable attenuator +cleaning cotton stick+battery+battery charger+manual+carrying pouch+carton box
