PM6106 Optical Power Meter

Name: PM6106 Optical Power Meter
Brand: Sinomor
SKU: 131779367
Availability: InStock

US$ 60 - 200 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Sinomor

Model Number:

PM6106

Contact Supplier Request Quote Chat Now

Hangzhou Sinomor Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Sinomor

Model Number PM6106

Specifications

1. Optical power meter
2. Auto Wave-ID
3. Auto Frequency-ID
4. Max 18 calibration wavelength

Overview

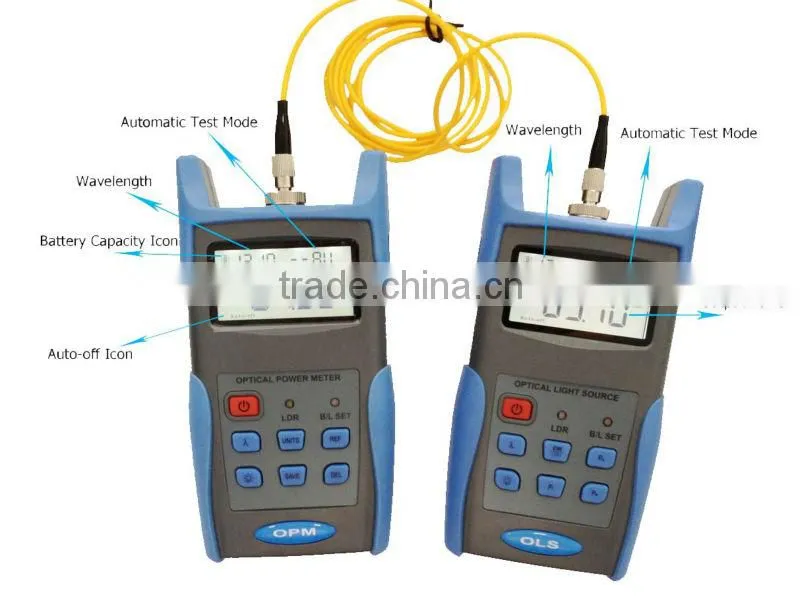

PM6106 optical power meter is a multi-functional tester. Combined with LS6206 series optical light source, it can automatically detect the wavelength and frequency from LS6206 light source, then switch wavelength and frequency accordingly.

PM6106 optical power meter’s internal memory can save up to 1000 records, customers could upload, edit and print the test result at any time.

The backlight design of PM6106 optical power meter is special. It has 2 types of backlight. One is to adjust the backlight manually; another is to change automatically with the environment.

Features

Automatic wavelength identification and switching (combine with LS6206 OLS)
Automatic frequency identification (combine with LS6206 OLS)
Intelligent backlight control
Up to 1000 test records storage via USB port
User self-calibrating function
10 minutes auto-off function
Up to 200 hours working hours
External AC adapter to provide power
Low battery indication

Specifications

Model	PM6106T0	PM6106C0	PM6106T	PM6106C
Calibration Wavelength (nm)	850/1300/1310/1490/1550/1625
Detector	InGaAs

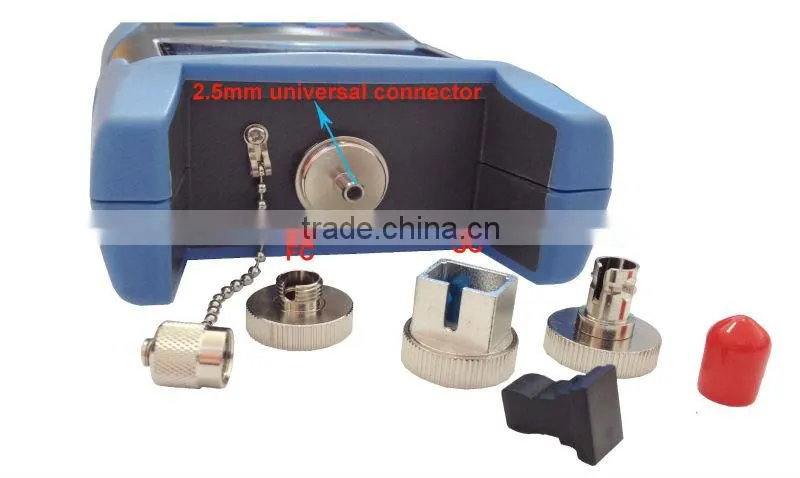

Connector	Interchangeable FC/SC/ST
Measurement Range (dBm)	-70~+10	-50~+30	-70~+10	-50~+30
Uncertainty (dB)	±0.15(3.5%)
Display resolution (dB)	0.01
Frequency ID (Hz)	N/A		270,330,1K,2K
Wave ID (nm)	N/A		850/1300/1310/1490/1550/1625
Data Records	N/A		1000
Communication Port	N/A		USB
Battery	AA (3pcs)
Power Adapter (V)	8.4
Working Time (h)	200 (without backlight)
Operation Temperature (°C)	-10~+60
Storage Temperature (°C)	-25~+70
Dimension (mm)	175x90x44.5
Weight (g)	235(including batteries)
