Specifications
1) Mini optical power meter2) 6 calibration wavelength
3) FC/SC/ST interchangeable connector
Description

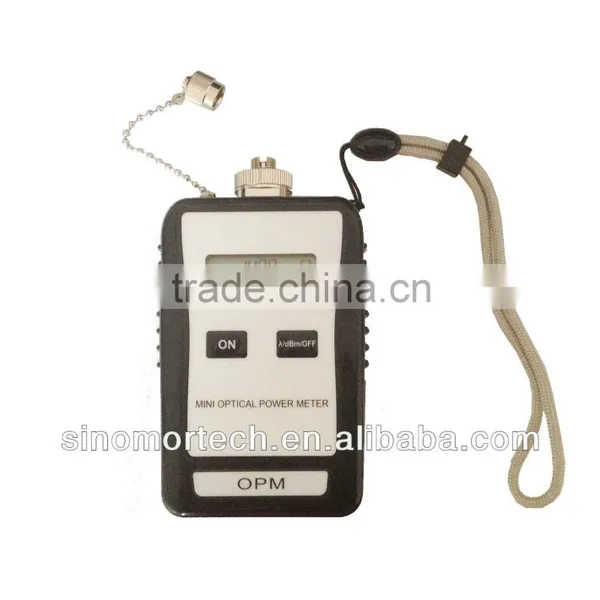

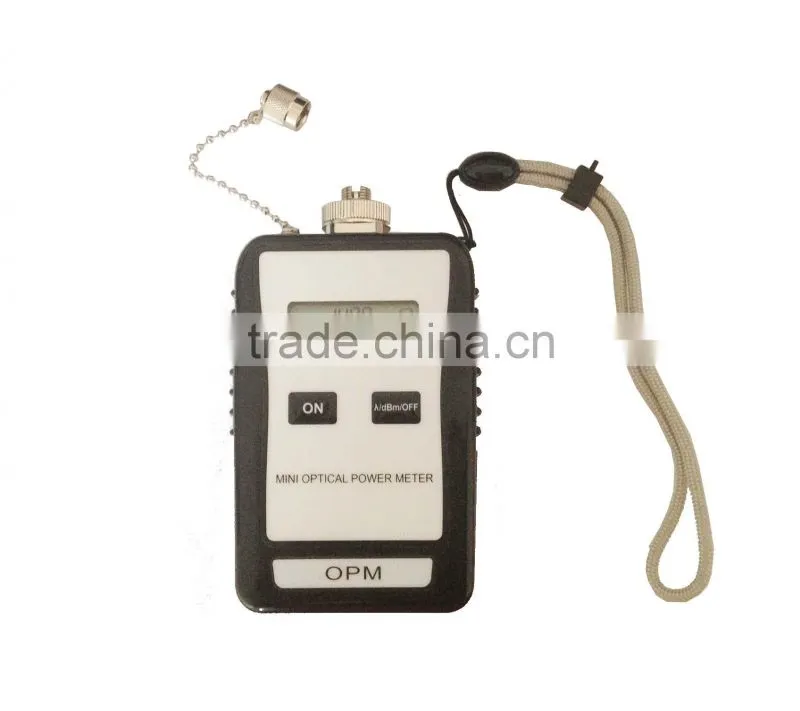

PM6100 mini optical power meter is a pocket size power meter. It has mini size but strong function.

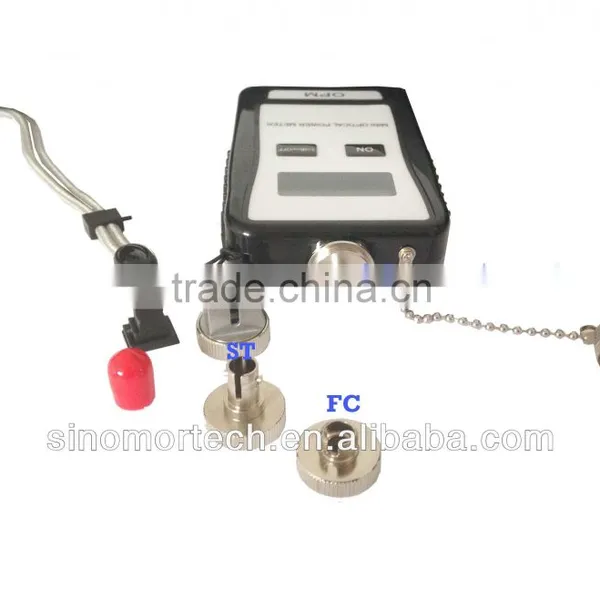

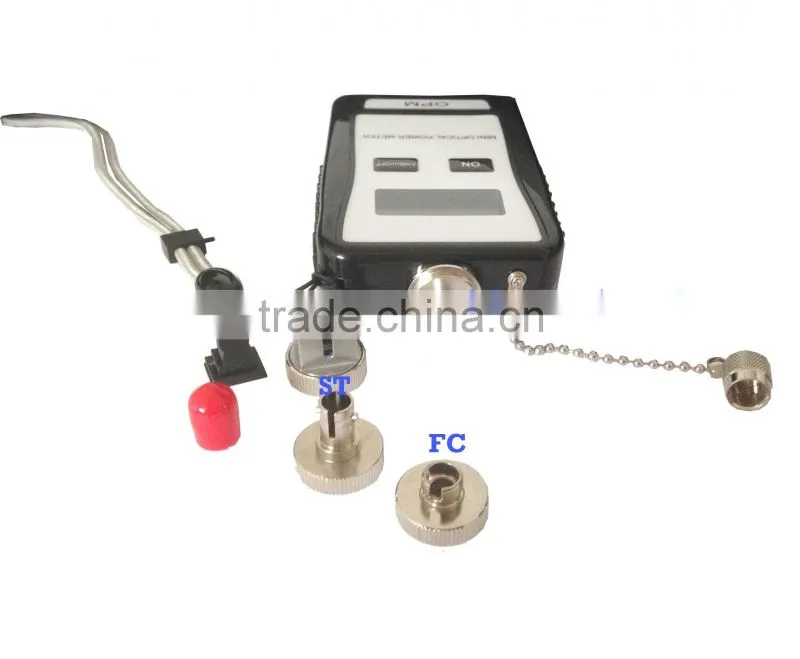

It has 6-calibration wavelength to test both SM and MM fiber. With FC/SC/ST and 2.5mm interchangeable connector, it is easy to accommodate multi test port.
With 3pcs alkaline battery, it can continuously work 360 hours.
It is suitable for installation, operation and maintenance, and a good choice for your work.
Features
- High Sensitivity and large dynamic range
- Optional FC/SC/ST/ connector
- Lower power indication
- 10 minutes auto-off function
- 360 working hours
Specification
Model |
PM6100T |
PM6100C |
Wavelength Range (nm) |
800~1700 |
|
Detector |
InGaAs |
|
Connector |
FC/SC/ST+2.5mm universal |
|
Measurement Range (dBm) |
-70~+6 |
-50~+26 |
Uncertainty |
±0.25 |
|
Calibration Wavelength (nm) |
850/1300/1310/1490/1550/1625 |
|
Resolution |
0.05 |
|
Battery |
AAA (3pcs) |
|
Operating Time (h) |
360 |
|
Working Temperature (°C) |
-10~+50 |
|
Storage Temperature (°C) |
-20~+70 |
|
Auto-off Time (min) |
10 |
|
Dimension (mm) |
93x59x16 |
|
Weight (g) |
66 |
|
Standard Accessories
1) Main Unit
2) Cleaning Stick
3) Battery
4) Carrying Bag
5) Manual
Ordering Information
PM6100-M-C-W-P
1) M=Measurement Range
M1: -70~+6dBm (for Telecom)
M2: -50~+26dBm (for CATV)
2) C= Connector Type
C1: interchangeable FC/SC/ST
C2: Interchangeable FC/SC/ST/LC
3) W=Wavelength
W1: 850/1300/1310/1490/1550/1625nm
W2: 850/980/1300/1310/1490/1550nm
W3: others
