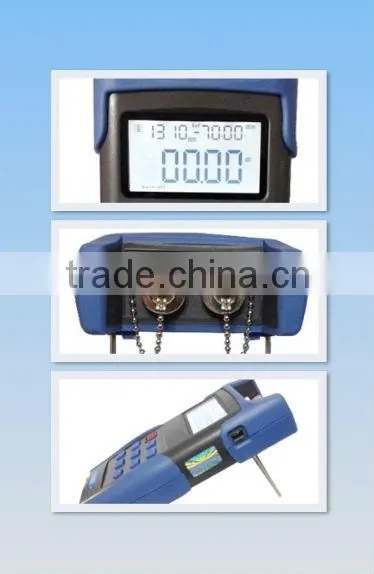

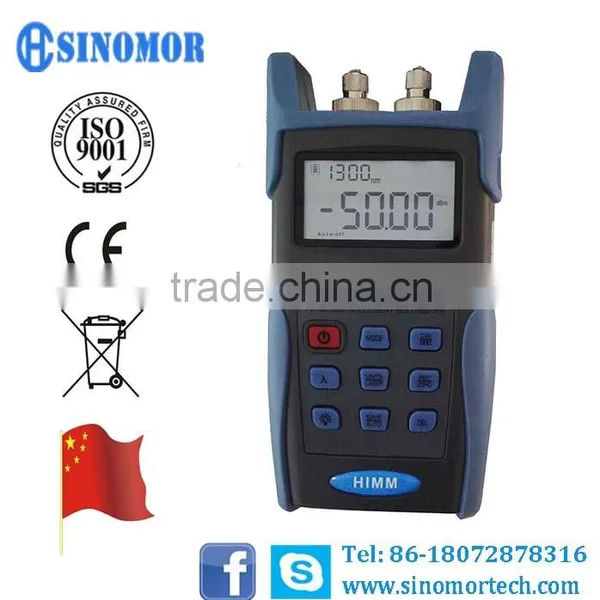

LT6306 series Optical Power Multimeter is a newly designed tester, which integrates the optical power meter and optical light source function in one unit.
Like all old version loss tester, LT6306 series Optical Power Multimeter can separately work as power meter or light source; or simultaneously work as power meter and light source together.
To meet customers’ high-end test requirement, LT6306 series Optical Power Multimeter develop new functions,
1) Auto-wavelength switching
2) Modulation signal test
3) Stable light source output
4) 1000 records storage
5) Data upload via USB
6) Optional VFL function
With so many strong functions, LT6306 series Optical Power Multimeter is widely used in the application, test and maintenance.
Features
- Optical Power Multimeter
- Power meter and light source in one unit
- Stable light source
- Auto wavelength switch
- Modulation identification
- Frequency identification
- USB communication port
- 1000 records storage
- Real-time data reading
- More than 200 working hours
Specification
Model Parameter | LT6306T | LT6306C |
Optical Power Meter | ||
Calibration Wavelength (nm) | 850,1300, 1310,1490,1550,1625 | |
Measurement Range (dBm) | -70~+6 | -50~+26 |
Resolution (dB) | 0.01 | |
Uncertainty (dB) | ±0.25 | |
Linearity (dB) | ±0.1 | |
Frequency Identification Range | <10K | |
Connector | FC/SC/ST | |
Light Source | ||
Wavelength (nm) | 1310/1550(optional others) | |
Output power (dBm) | -5(optional others) | |
Connector | FC/SC/ST | |
Stability (dB,30mins@20°C) | ≤0.1dB | |
Modulation (Hz) | 270 1K,2K | |
Optional Visual Fault Locator | ||
Wavelength (nm) | 650 ± 10 | |
Output Power(mw) | 1 | |
Connector | FC/PC | |
General Information | ||
Power Supply | AAA (3pcs) | |
Auto-Off Time (min) | 10 | |
Working Time (h) | ≥50 (with OLS working), ≥ 200 (without OLS working) | |
Communication Port | Mini USB | |
Operating Temperature(°C) | -10+60 | |
Storage Temperature(°C) | -25~+70 | |
Dimension (mm) | 175×90×44.5 | |
Weight (g) | 265 | |
Ordering Information
LT6306-M-D-W-E-CW-PA | |||||
Measurement Range (M) | Detector (D) | Wavelength (W) | Emitter (E) | Central Wavelength (CW)
| Power Adapter (PA) |
M1: LT6306T M2: LT6306C | D1: InGaAs D2: Si D3: Ge | W1: 850/1300/1310/149/1550/1625nm W2: 850/980/1300/131/1490/1550nm W3: others
| E1: FP-LD E2: LED (50/125um) E3: LED (62.5/125um) | CW1: 850/1300nm CW2: 1310/1550nm CW3:1310/1490/1550nm
| PA1: USA power adapter PA2: EU power adapter
|
1. The standard warranty is 18 month.
2. Extended warranty is available with additional and reasonable cost.
3. Cutomized products are also available as per your specific request.
1) Optical Power Multimeter +cleanig cotton stick+manual+battery+USB cable+power adatper+carrying pouch+box
