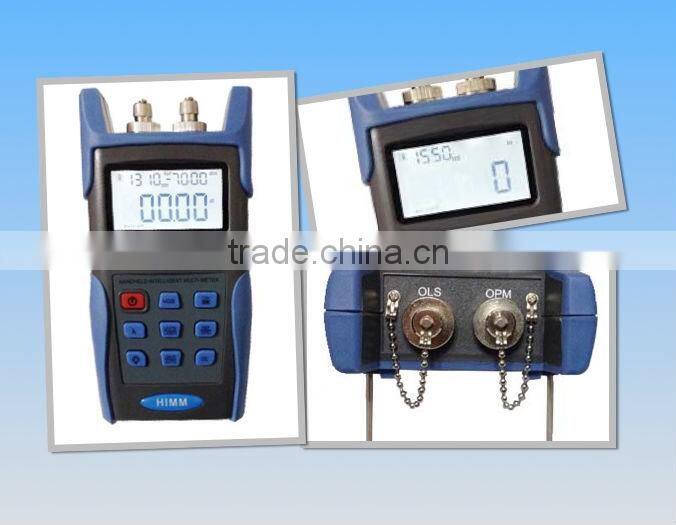

LT6306 Handheld Optical Multimeter

Name: LT6306 Handheld Optical Multimeter
Brand: Sinomor
SKU: 131778919
Availability: InStock

Hangzhou Sinomor Technology Co., Ltd.

US$ 150 - 600 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Sinomor

Model Number:

LT6306

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Sinomor

Model Number LT6306

Specifications

1) Handheld optical multimet
2) Power meter and light source in one unit
3) Frequency identification

Overview

LT6306 series handheld optical multimeter is a newly designed tester, which integrates the optical

power meter and optical light source function in one unit.

Like all old version loss tester, LT6306 series handheld optical multimeter can separately work as

power meter or light source; or simultaneously work as power meter and light source together.

To meet customers’ high-end test requirement, LT6306 series handheld optical multimeter develop

new functions,

1) Auto-wavelength switch

2) Modulation signal test

3) Stable light source output

4) 1000 records storage

5) Data upload via USB

6) Optional VFL function

With so many strong functions, LT6306 series handheld optical multimeter is widely used in the

application,test and maintenance.

Features

Specification

Model Parameter	LT6306T	LT6306C
Optical Power Meter
Calibration Wavelength (nm)	850,1300, 1310,1490,1550,1625
Measurement Range (dBm)	-70~+6	-50~+26
Resolution (dB)	0.01
Uncertainty (dB)	±0.25
Linearity (dB)	±0.1
Frequency Identification Range	<10K
Connector	FC/SC/ST
Light Source
Wavelength (nm)	1310/1550(optional others)
Output power (dBm)	-5(optional others)
Connector	FC/SC/ST
Stability (dB,30mins@20°C)	≤0.1dB
Modulation (Hz)	270 1K,2K
Optional Visual Fault Locator
Wavelength (nm)	650 ± 10
Output Power(mw)	1
Connector	FC/PC
General Information
Power Supply	AAA (3pcs)
Auto-Off Time (min)	10
Working Time (h)	≥50 (with OLS working), ≥ 200 (without OLS working)
Communication Port	Mini USB
Operating Temperature(°C)	-10+60
Storage Temperature(°C)	-25~+70
Dimension (mm)	175×90×44.5
Weight (g)	265
