Help CenterLS6202 Fiber Optical Laser Source 850/1300/1310/1490/1550/1625nm
Related Products
-
LS6202Optical Fiber Light Source 850/1300/1310/1490/1550/1625nmUS$ 50 - 400MOQ: 1 Piece -
LS6200 Mini Optical Light Source With Dual Wavelength FC/SC/ST ConnecotrUS$ 50 - 100MOQ: 1 Piece
-
LS6206 Fiber Optic Light Source,1310/1490/1550/1625nmUS$ 100 - 500MOQ: 1 Piece
-
LS6206 LED Light Source,850/1300nmUS$ 100 - 500MOQ: 1 Piece
-
LS6200 Optical Light SourceUS$ 50 - 100MOQ: 1 Piece
Specifications
1. Fiber Optical Laser Source2. 850/1300/1310/1490/1550/1625nm
3. Max 4 wavelength output
4. Stable output power
Overview

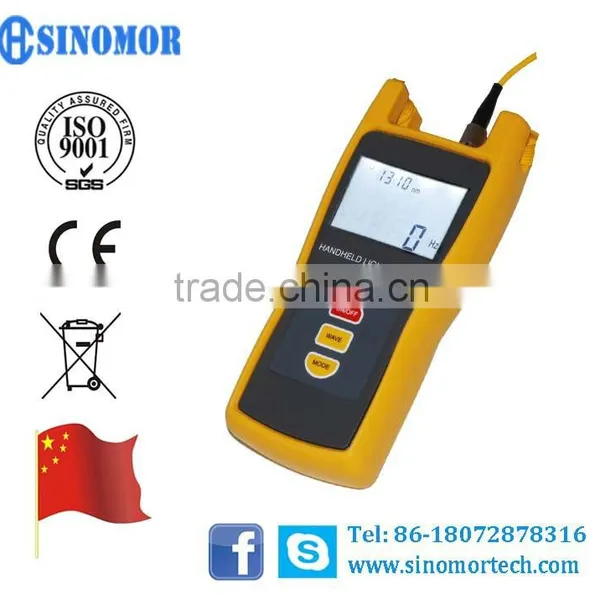

LS6202 series Fiber Optical Laser Source is designed to work with PM6102 series optical power meter.
LS6202 series Fiber Optical Laser Source has Max quad-wavelegnth output, large LCD screen,10 minutes
auto-off function, low battery indication, and 3 types of modulation.
LS6202 series Fiber Optical Laser Source has different wavelength combination to meet different test requirement.
850/1300nm is for MM test,1310/1550nm is most common SM test,1310/1490/1550nm or
1310/1550/1625nm is for PON test,850/1300/1310/1550nm is used for both SM and MM test.
Together with PM6102 optical power meter,they combine a fast,stable and cost effective test solution.
Features
- Fiber Optical Laser Source
- Large LCD screen
- Max 4 wavelength output
-
Multi-wavelength combination
- Stable output power
- 10 minutes auto-off function
-
Low power indication
Specifications
Model |
LS6202 |
||
Wavelengths (nm) |
1310/1550 |
850/1300 |
850/1300/1310/1550 |
Emitter Type |
FP-LD (optional LED for MM) |
||
Typical Output Power (dBm) |
-6~-7 (-19~-20dBm for LED) |
||
Spectral Width (nm) |
≤10 |
||
Output Stability (dB) |
±0.05@15mins ±0.1dB/ 8hours |
||
Modulation (Hz) |
CW, 270,1K, 2K |
||

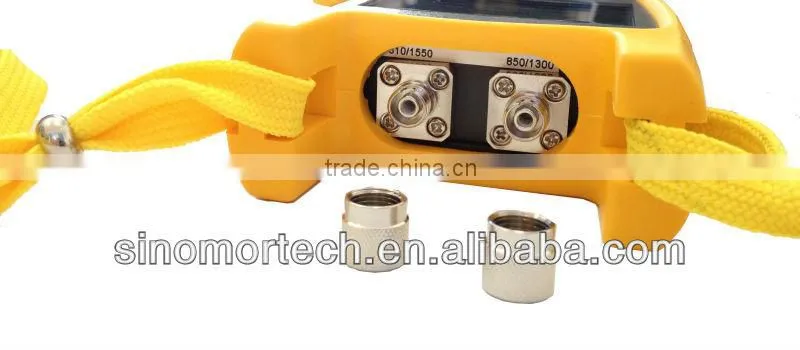

Optical Connector |
FC/PC or Interchangeable FC/SC/ST |
||
Power Supply |
AA (3pcs) |
||
Working Time (h) |
45 |
||
Operating Temperature (°C) |
-10~+60 |
||
Storage Temperature (°C) |
-25~+70 |
||
Dimension (mm) |
175x82x33 |
||
Weight (g) |
295 |
||
Standard Accessories
1) Main Unit
2) Cleaning Stick
3) Battery
4) Carrying Bag
5) Manual
Ordering Information
LS6202-L-C-W | ||
Laser (L) |
Connector (C) |
Wavelength (W) |
|
L1: FP-LD (SM) L2: LED 50/125um (MM) L2: LED 62.5/125um (MM)
|
C1: Standard FC/PC C2: Interchangeable FC/SC/ST/PC C3: Interchangeable FC/SC/ST/APC
|
W1: 1310/1550nm W2: 850/1300nm W3: 1310/1490/1550nm W4: 1310/1550/1625nm W5: 850/1300/1310/1550nm W6: 1310/1490/1550/1625nm W7: Others |
1. The standard warranty is 18 months.
2. Extended warranty is available with additional and reasonable cost.
3. All above parameters are standard.
4. The customized products are also available as per your specific request.
1. Light source+carrying pouch+manual+battery+cleaning stick+carton box.
