Specifications
1. Adjustable output power2. Max 4 wavelegnth combination
3. 10 minutes auto-off function
4. Lowe power indication
Overview

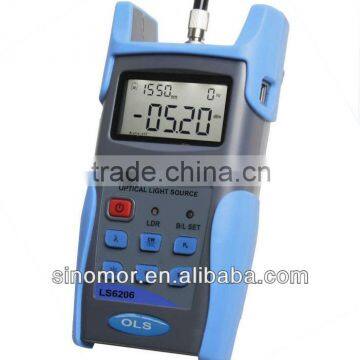

This LS6206 series intelligent light source is designed to work together PM6106 series power meter. When working with PM6106 series power meter, they can realize the auto wavelength identification and auto frequency identification.
The LS6206 series intelligent light source can have Max 4 wavelength in one unit.Compared with other light source, the output power of LS6206 series light source is adjustable, which provides better assistance to customers’ work.
Features
- Max 4 wavelength output in one unit
- Adjustable output power,adjutabe range 7dB
- 270Hz,330Hz,1kHz and 2kHz tone generation
- 10 minutes auto-off function
- Low battery indication
- Intelligent backlight control
- Up to 45 working hours
- External AC adapter
Specification
Model |
LS6206 |
Operating Wavelength (nm) |
850/1300/1310/1550 |
Emitter |
FP-LD |
Connector |
Interchangeable FC/SC/ST |
Output Power (dBm) |
-5~-12 |
Adjustable Output Power Step (dBm) |
<0.5 |
Adjustable Output Power Range (dB) |
-7 |
Stability (dB, 30min@20°C) |
0.15 |
Modulation (Hz) |
CW, 270,330,1K,2K |
Battery |
AA (3pcs) |
Power Adapter (V) |
8.4 |
Operating Time (h) |
45 |
Operation Temperature (°C) |
-10~+60 |
Storage Temperature (°C) |
-25~+70 |
Dimension (mm) |
175*90*44.5 |
Weight (g) |
263(including batteries) |
Standard Accessories
1) Main Unit
2) Cleaning Stick
3) Battery
4) Carrying Bag
5) Manual
6) Power Adapter
Ordering Information
LS6200-L-C-W-P
1) L=Laser
L1: LD (for SM)
L2: LED (for MM)
2) C= Connector Type
C1: Standard FC/SC/ST/PC
C2: interchangeable FC/SC/ST/APC
3) W=Wavelength
W1: 1310/1550nm
W2: 850/1300nm
W3: 1310/1490/1550nm
W4: 1310/1550/1625nm
W5: 850/1300/1310/1550nm
W6: 1310/1490/1550/1625nm
W7: others
4) P=Power Adapter
P1: USA power adapter
P2: EU power adapter
