Specifications
1. optical fiber identifier,2. on-line fiber test without interrupting current service
3. Low power indication
Overview
FI6600 series optical fiber identifier is a rugged and easty-to-use instrument to identify the signal absence or presence,transmitting direction,relative core power and moludation of the fibers.
By inserting the fiber to the probe of FI6600 optical fiber identifer,it realizes the in-line test without interruting the current service.
When the traffice is present ,an intermittently audible tone would be heard;when the modulation is detected,the continously audible tone would be heard.

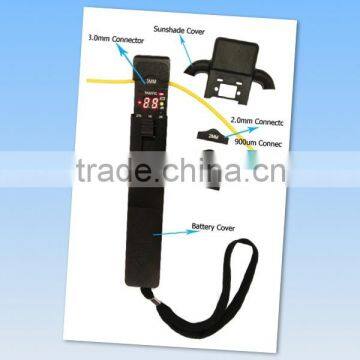

FI6600 optical fiber identifier is provided with 4 interchangeable conectors which are seperately for bare fiber,loose tube fiber and jacketed fiber.
Features
- Optical fiber identifier
- Handheld and rugged mental case for field work
- Easy-to-use with “ONE KEY” operation.
- In-line test without interrupting current service
- Detection of signal presence or absence, signal direction
- Detection of modulation 270Hz,1kHz or 2kHz with audible warning
- Display of the relative core power
- Easy-to-replace adapters to accommodate different fibers
- Lower power indication
Specifications
Model |
FI6600 |
|
Wavelength Range (nm) |
800~1700 |
|
Detector Type |
InGaAs (Ø1mm 2pcs) |
|
Connector |
Ø0.25/ Ø0.9/ Ø2.0/ Ø3.0 |
|
Signal Direction |
Left & Right |
|
|
Signal Direction Test Range (dBm, CW/ Ø0.9mm) |
-46~10 (1310nm) |
|
-50~10 (1550nm) | ||
|
Signal Power Test Range (dBm, CW/ Ø0.9mm) |
-50~+10 |
|
Signal Frequency Display (Hz) |
270, 1k, 2k |
|
|
Frequency Test Range (dBm, Average Value) |
Ø0.9, Ø2.0, Ø3.0 |
-30~0 (270Hz,1KHz) |
-25~0 (2KHz) | ||
|
Ø0.25 |
-25~0 (1KHz,2KHz) |
|
-20~0 (2KHz) | ||
|
Insertion Loss (dBm, Typical Value) |
0.8 (1310nm) |
|
2.5 (1550nm) | ||
Battery |
9v |
|
Operating Time (h) |
10 |
|
Operating Temperature (°C) |
-10-+60 |
|
Storage Temperature (°C) |
-25-+70 |
|
Dimension (mm) |
196x30.5x27 |
|
Weight (g) |
200 |
|
Standard Accessories
1) Main Unit
2) 250mm Adapter
3) 900mm Adapter
4) 2000mm Adapter
5) 3000mm Adapter
6) Sunshade Cover
7) Cleaning Stick
8) Battery
9) Carrying Bag
10) Manual
