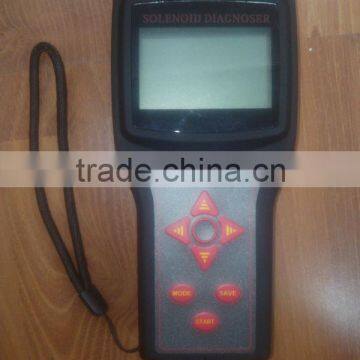

SD-1000 Solenoid Diagnoser TOOLS

Specifications

  SD  1000 Solenoid Diagnoser is an innovation instrument to diagnose engine solenoids on-site of a faulty vehicle. With the help of the instrument, the faulty components on the engine can be found faster and so is the repairing time. The instrument can detect solenoid electrical faults as well as mechanical faults, such as stuckvalve.The instrument may be used also for checking the condition of a solenoid in a repairing shop. A rich database contents most of solenoids on commercial vehicles is pre-installed in the instrument. The instrument is an indispensable tool to diagnose solenoid faults for every technician in the vehicle repairing industry.

Features

 Hand-held portable design

 User friendly, easy to operate without any special training

 Straight forward test results on LCD

 Check solenoids on-site of a faulty vehicle

 No impact on the solenoid being tested

 Factory installed database with various solenoids by many manufacturers

 User is able to add new solenoid data into the instrument to expand its application

 Powered by a 9V battery. Low power consumption with low battery charge indication

 Accessories including harnesses, battery and user’s manual.

Factory-Installed Database

 Common rail diesel engine, solenoids on injectors and high-pressure pumps. The manufactures are:

         Bosch,Delphi,Denso,Siemens

 EUI/EUP diesel engines. The manufactures are:

         Bosch,Delphi,Cummins,CAT,DDC,Mercedes Benz, Volvo, Scania, Iveco,

 HEUI diesel engines. The manufactures are:

         CAT,Navistar

 Solenoids on gasoline engines

Operation

 Diagnose a solenoid

         Press ”MODE” to set to ‘TEST’ mode

        Select the target solenoid data from database

        Press ”START’ to test the solenoid, the LCD displays

                Solenoid resistance ‘R’, relative to standard value

                Solenoid inductance ‘L’, relative to standard value

         Based on the test results, the user is able to determine the condition of the solenoid, normal or faulty.

 Add a new solenoid data to database

         Connect to the solenoid in good working condition

        Press ”MODE” to set to ‘TEST’ mode

         Set the name of the new solenoid

         Press ”START’ to test the solenoid

         Press ”SAVE” to save the test results into the database

         Connect to the solenoid again

         Select the newly saved data from database

         Press ”MODE” to set to ‘TEST’ mode

          Press ”START’ to test the solenoid

         If the test results on the LCD screen shows the values of “R” and “L” are within 100±10%, then the newly added data is valid. Otherwise re-do the new solenoid calibration.
