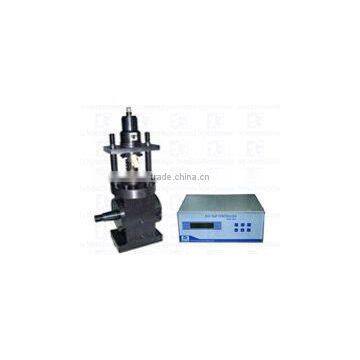

EUS-1001 Repair Test Kits for EUP and EUI

Specifications

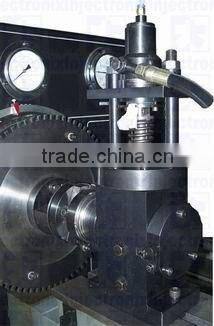

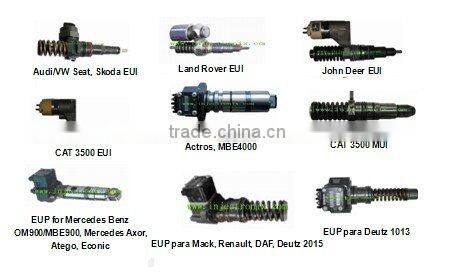

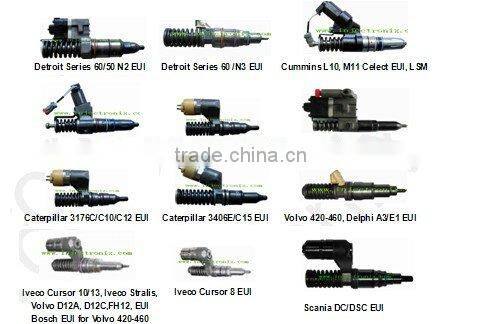

Test an EUI or an EUP on a conventional pump test bench. Offer adapter kits for most EUIs and EUPs on the world market.



EUI/EUP  Applications   Design Features

One cambox for all major EUI/EUP models with corresponding adapters and camshafts Cambox mounting height 125mm (from the center of camshaft to bench mounting platform) for Bosch type pump test bench



Controller is designed for three kinds of drive mode:

      Low voltage for most battery voltage driven EUI/EUP

            High voltage for Cat EUI

      Cumming Celect EUI



Adjustable Begin of Injection (BOI) in Crank Angle Degrees

Adjustable Injection Period (PW) in Crank Angle Degrees

Engine standard cam lobe designs:

Four levels of cam lift

Constant velocity cam lobe to generate higher injection pressure, 3 times higher than cheap eccentric cams
