Place of Origin Beijing, China
Brand Name Injectronix
Model Number EUS-2000
Power Electronic
Usage Auto Testing Machine

Specifications

Test EUI or EUP on a diesel fuel injection pump test bench.
Offer adapter kits for most EUIs and EUPs on the world market.

R & D continually upgraded,and now the most widely used  EUI and EUP Tester!

/product.php?pid=53

Design Features

Test an EUI or an EUP on a conventional diesel fuel injection pump test bench Offer adapter kits for most EUIs and EUPs on the
Test an EUI or an EUP on a conventional diesel fuel injection pump test bench Offer adapter kits for most EUIs and EUPs on the



    1.                            Cummins HPI-TP electronic control module
    2.             TP-2000 Hydraulic Module
    3.             Adapter for injectors of Cummins ISX and Scania engines
    4.             Adapter for Injectors of Cummins QSK Series engines

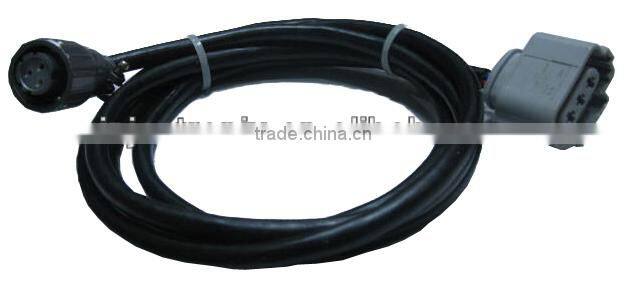

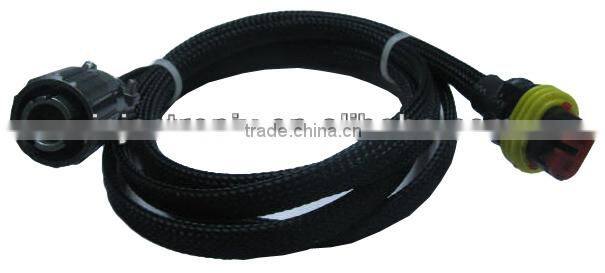

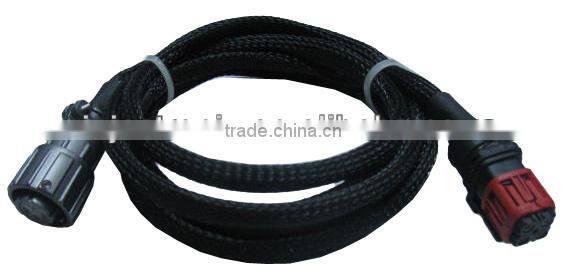

    5.                      hoses and cables

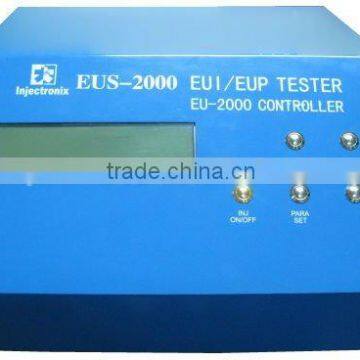

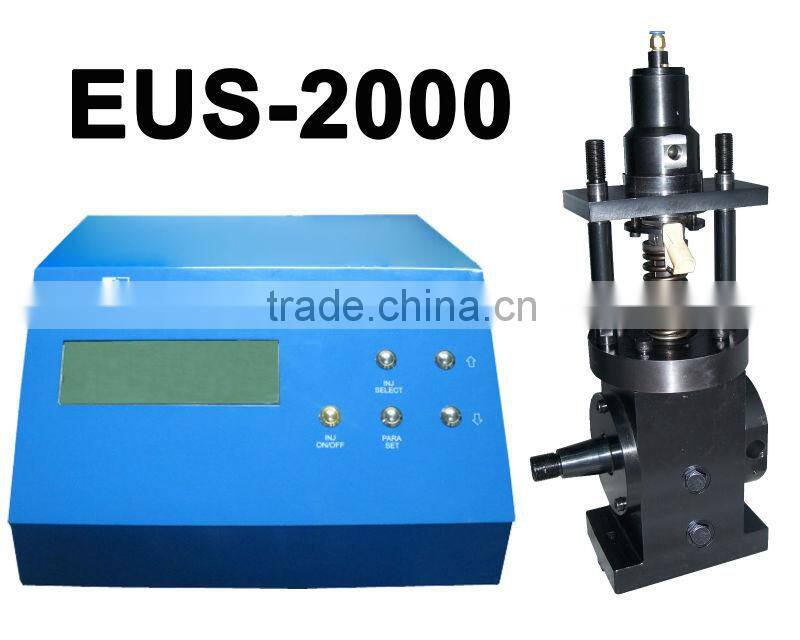

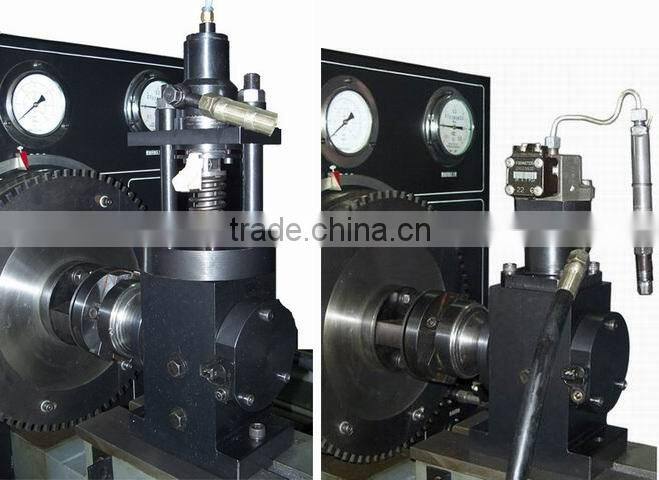

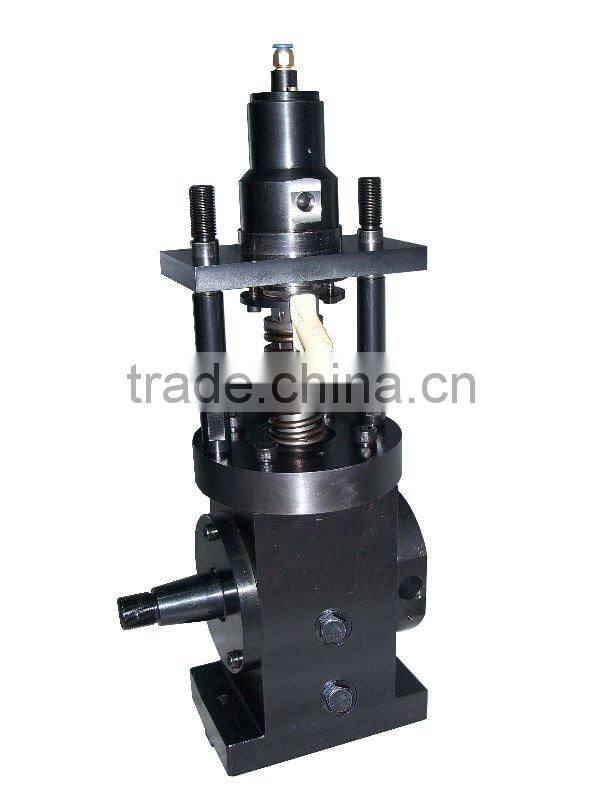

The EUS-2000 repair tester is designed to perform repair tests for different type of Electronic Unit Injectors (EUI) and Electronic Unit Pumps (EUP). The tester consists of a mechanical cam box (CB-1000) with customer specified EUI/EUP adapter kits and a modular designed electronic controller (EU-2000).  The CB-1000 cam box is driven by a standard high pressure fuel injection pump test bench. The EU-2000 controller is modular designed to fit customer’s applications for testing various EUI/EUP.

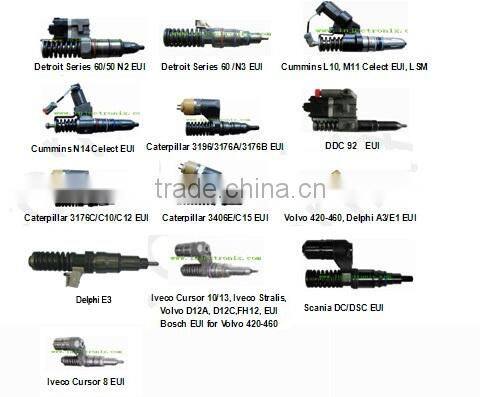

EUI Application:

Cummins, Volvo, Audi, Detroit, Iveco, Scania

EUP Application:

Mercedes Benz Actros, Mack, Deutz





Test an EUI or an EUP on a conventional diesel fuel injection pump test bench Offer adapter kits for most EUIs and EUPs on theTest an EUI or an EUP on a conventional diesel fuel injection pump test bench Offer adapter kits for most EUIs and EUPs on theTest an EUI or an EUP on a conventional diesel fuel injection pump test bench Offer adapter kits for most EUIs and EUPs on the

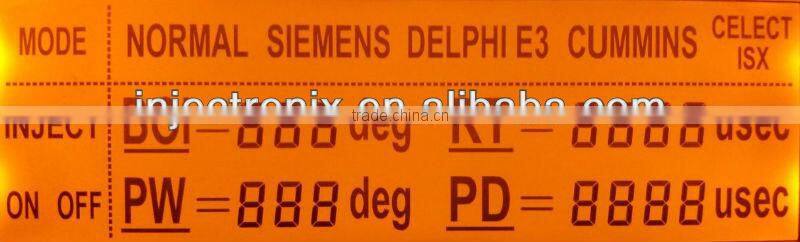

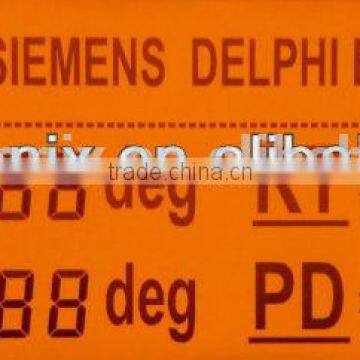

4 Adjustable Beginning of Injection (BOI) in crank angle degrees

5 Adjustable injection period (PW) in crank angle degrees

6 Engine standard cam lobe designs:

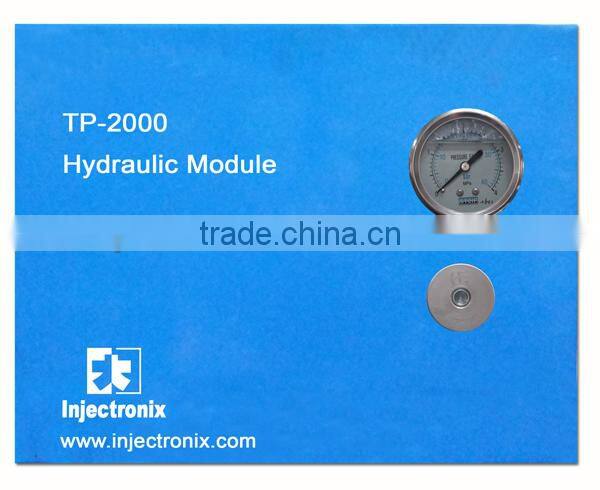

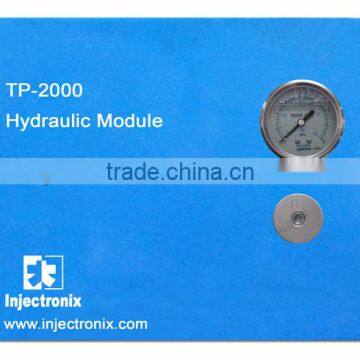

TP-2000 Hydraulic Module

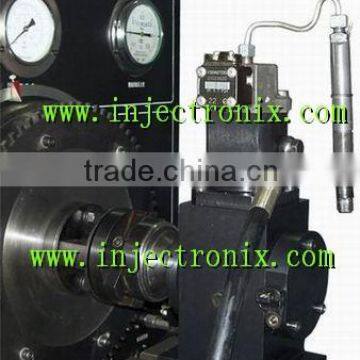

TP-2000 Hydraulic Module is similar to the IFSM (Integrated Fuel System Module) in a Cummins HPI-TP engine. It sucks fuel from fuel tank, and feeds regulated timing fuel flow and metering fuel flow to the HPI-TP injector installed on the cam box. The electronic module for Cummins HPI-TP injector in the EU-2000 controller generates signals to drive timing actuator and metering actuator in the hydraulic module. Fuel injection timing and quantity are adjusted on the EU-2000 panel.

The TP-2000 Hydraulic Module contents the following parts

Test an EUI or an EUP on a conventional diesel fuel injection pump test bench Offer adapter kits for most EUIs and EUPs on theTest an EUI or an EUP on a conventional diesel fuel injection pump test bench Offer adapter kits for most EUIs and EUPs on the

Test an EUI or an EUP on a conventional diesel fuel injection pump test bench Offer adapter kits for most EUIs and EUPs on theTest an EUI or an EUP on a conventional diesel fuel injection pump test bench Offer adapter kits for most EUIs and EUPs on theTest an EUI or an EUP on a conventional diesel fuel injection pump test bench Offer adapter kits for most EUIs and EUPs on the
