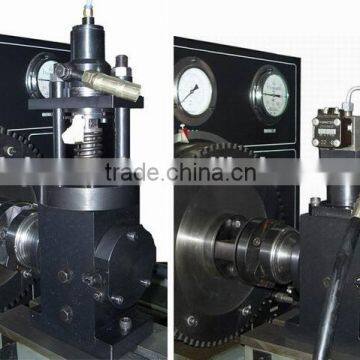

EUI D12C Injetor Tester

Specifications

Design Features

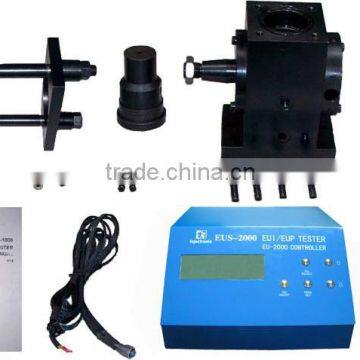

* One cambox for all major EUI/EUP models with corresponding adapters and camshafts
* Cambox mounting height 125mm (from the center of camshaft to bench mounting platform) for Bosch type pump test bench

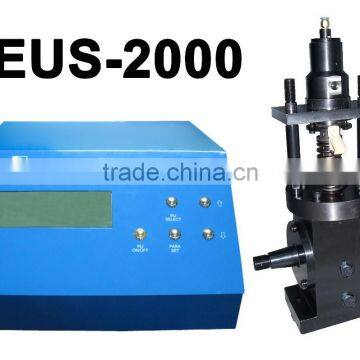

* EU-2000 Controller with its modular design may be tailored to meet various customer application.
** Customer may upgrade EU-2000 by adding a few more optional modules
** EU-2000 is able to detect and enable automatically the installed modules in the system
** Base system. Single solenoid EUI/EUP module
* Most of single EUI/EUP on the market
* Cummins CELECT EUI
** Option. Dual-solenoid module for Delphi E3 EUI
** Option. Piezo EUI module for VW Piezo EUI
** Option. Response time measurement module
** NEW RELEASE! Option. Cummins ISX EUI metering and timing control module kits, including
* Cummins HPI-TP electronic control module
* TP-2000 Hydraulic Module
* Adapter for injectors of Cummins ISX and Scania engines
* Adapter for Injectors of Cummins QSK Series engines
* Hoses and cables
* Adjustable Beginning of Injection (BOI) in crank angle degrees
* Adjustable injection period (PW) in crank angle degrees
* Engine standard cam lobe designs:
** Four levels of cam lifts
** Constant velocity cam lobe to generate higher injection pressure, 3 times higher than cheap eccentric cams

TP-2000 Hydraulic Module
TP-2000 Hydraulic Module is similar to the IFSM (Integrated Fuel System Module) in a Cummins HPI-TP engine. It sucks fuel from fuel tank, and feeds regulated timing fuel flow and metering fuel flow to the HPI-TP injector installed on the cam box. The electronic module for Cummins HPI-TP injector in the EU-2000 controller generates signals to drive timing actuator and metering actuator in the hydraulic module. Fuel injection timing and quantity are adjusted on the EU-2000 panel.
The TP-2000 Hydraulic Module contents the following parts
* A gear pump
* A fuel filter of 5μm
* A timing actuator, genuine Cummins part
* A metering actuator, genuine Cummins part
* A pressure adjusting valve and a pressure gauge
* A pressure pulsation damper
* A 70 μm filter plate.
