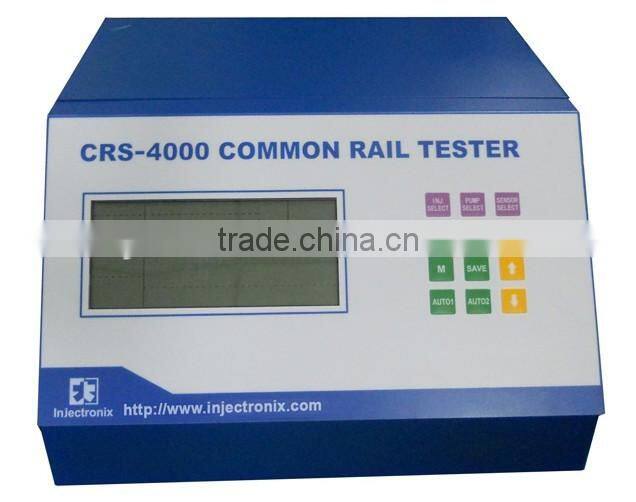

CRS-4000 Common Rail System Tester

CRS-4000 common rail system tester:

Features:
CR Injector Drivers
6 solenoid injectors
   High voltage for Bosch, Denso injectors
   Low voltage for Delphi injectors
 6 piezoelectric injectors, made by Siemens and Bosch (optional module)

 Short circuit protection for both solenoid and piezo injector drivers

CRS-4000 Applications

CR Pump Drivers
 Multiple independent PWM (Pulse Width Modulation) output channels to drive pump solenoids

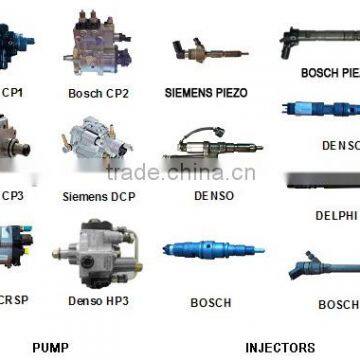

   Testing pumps with single regulation valve
 Bosch CP1/CP2/CP3
 Delphi CRSP
Denso HP3/HP4
   Testing Siemens DCP pump with two regulation valves
   Drive 3 DRVs for testing pump capability
 2 special output channels synchronous with pump speed to drive the two control solenoids on Denso HP0 (ECD-U2)pump (optional module)
Fuel Rail Pressure Sensor
 Pre-calibrated data for Bosch, Delphi, Denso pressure sensors
 Automatic (close-loop)rail pressure control
 Software based over-pressure protection
User Interface
 Small key pad
 Large LCD screen
Others
 One year manufacture warranty
 Injector and pump test procedure and database, off-line
 DRV adaptor for pump flow rate test (Optional)

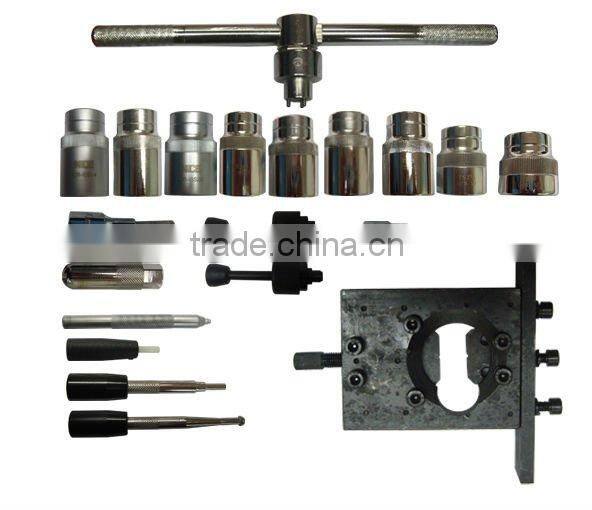

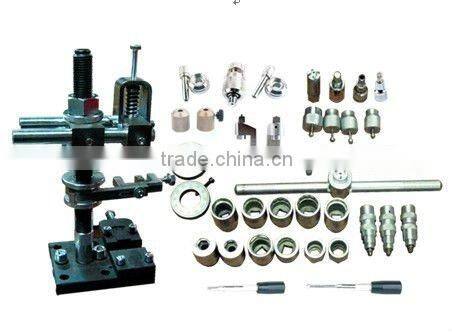

 Rich accessories

other optional accessories and tools you may be interested
