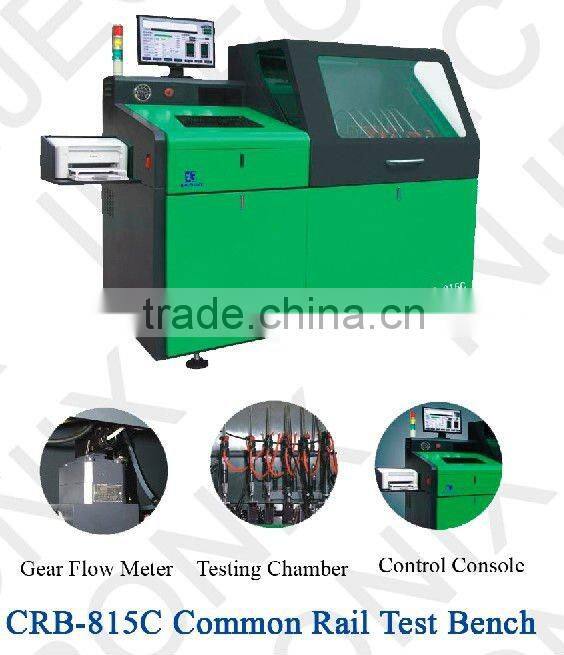

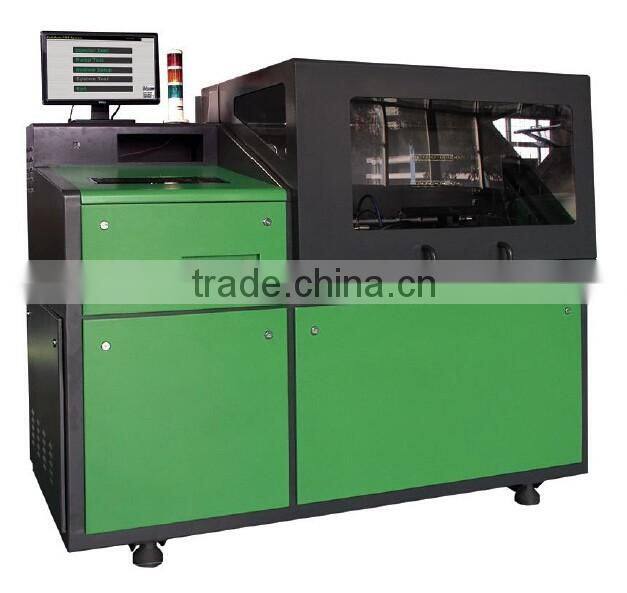

CRB-815C Common Rail System Test Bench

Features

1. Designed especially for testing common rail fuel systems automatically, including a common rail pump and 6 solenoid injectors.
2. Refrigerator type test oil cooling system
3. A gear flow meter imported from German is used to measure test oil flow rates.
4. Genuine Bosch components, such as fuel rail, DRV valve, are used in the equipment.
5. Measure automatically the common rail pump parameters, such as pump flow rate, return flow rate, fuel rail pressure, sealing, DRV and ZME performance. The system provides a report to indicate whether each and every parameters are passed the qualification, by comparing the measured results with the standard data in the database.
6. Measure automatically the common rail injectors of various kinds, in four steps, leak test, VL (full load), LL (idle), VE (pilot).  The system provides a report to indicate whether each and every parameters are passed the qualification, by comparing the measured results with the standard data in the database.
7. Windows OS, easy to operate. Allow to add new test data by the user. Save and print user info and test report.
8. System upgradable,
9. Provide various protections for the operator and the equipment with respective indicators, such as over-heat, over-pressure, test oil under-level in tank and defogging.
10. Accessories to test EUIs and EUPs, optional
11. Test 6 piezo injectors, optional
12. Test Bosch VP37 and VE37 pumps, optional

Specification

AC Power Supply: 3-Phase, 380/230V, 50/60Hz

Main Motor Power: 11KW, 15KW

Main Motor Speed: 0~4000rpm

Rail Pressure: 0~2000bar

Rail Pressure Accuracy: ±5bar

Flow Meter Range: 0.008~2L/min

Flow Meter Accuracy: 0.3%

Test Oil Temperature: 40±2°C

Test Oil Filtration Requirement: <5mm

Test Oil Tank Volume: 80L

Dimension: 1780×900×1800(mm)

Net Weight: 1000Kg

Certifications
