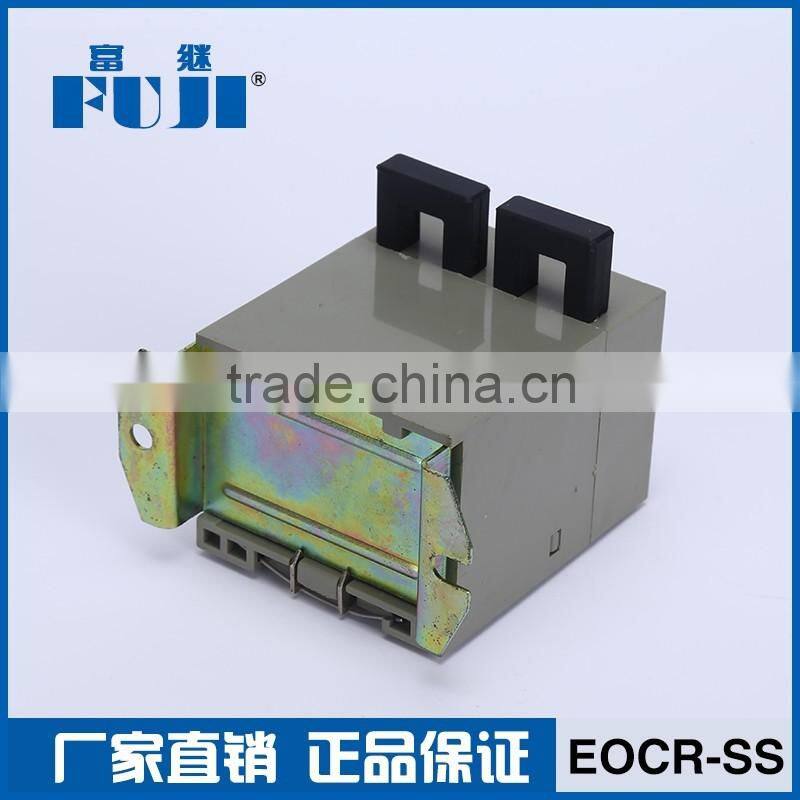

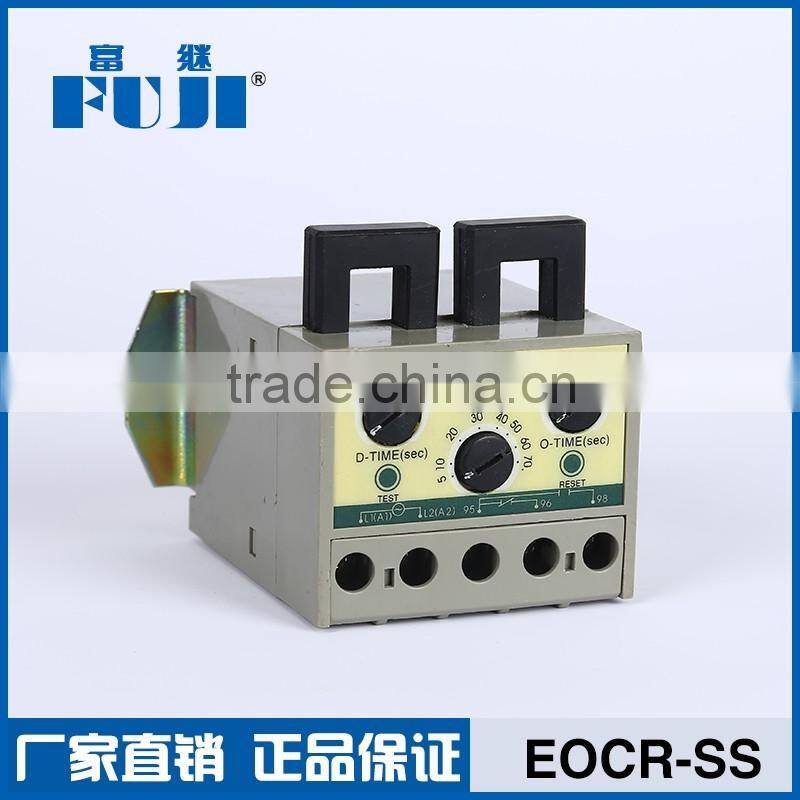

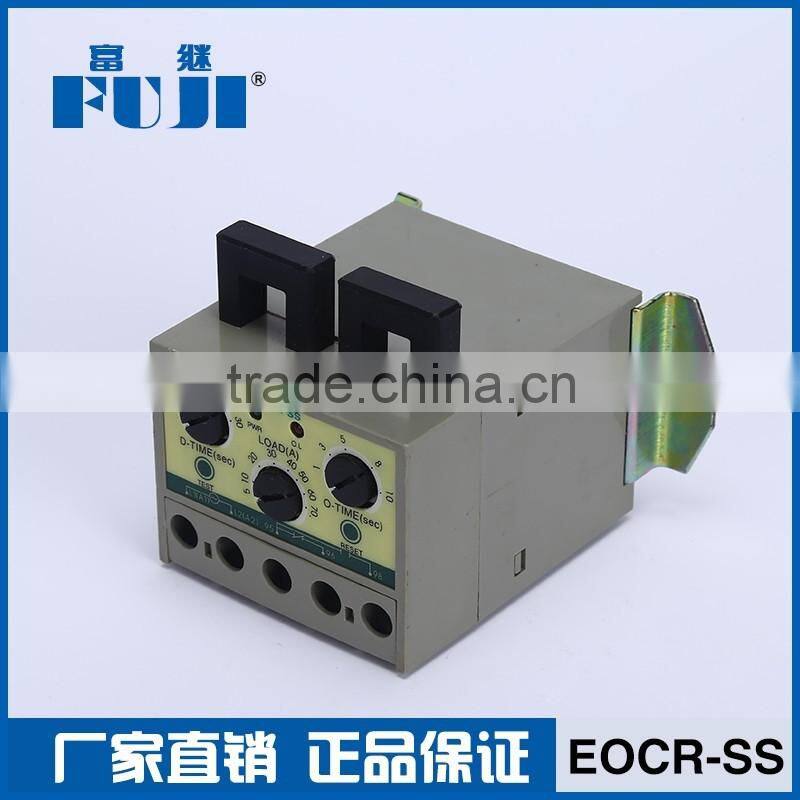

Electronic Overload Current Protection Relay EOCR Relay

Electronic Overload Current Protection Relay EOCR Relay thumbnail-1
Electronic Overload Current Protection Relay EOCR Relay thumbnail-2
Electronic Overload Current Protection Relay EOCR Relay thumbnail-3
Electronic Overload Current Protection Relay EOCR Relay photo-1
Electronic Overload Current Protection Relay EOCR Relay photo-2
Electronic Overload Current Protection Relay EOCR Relay photo-3
US$ 5 - 6 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
FUJI
Model Number:
EOCR-SS
Contact Supplier Request Quote Chat Now
Zhejiang Fushi Relay Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name FUJI
Model Number EOCR-SS
Theory Electromagnetic Relay
Usage General Purpose
Size Miniature
Protect Feature Sealed
Contact Load Low Power
Product Description



Specifications

1.EOCR SS RELAY
2.Fundamental parameter of the main circuit
3.Auxiliary circuit

EOCR SS OVERLOAD ELECTRONIC DIGITAL RELAY MOTOR PROTECTOR



1).2 Integral Current Transformers
2).Electronic Shear-pin Function
3).Independently Adjustable Starting
4).Trip Delay (D-Time) & Operating Time(O-TIME)





WIDE ADJUSTMENT RANGE
EOCR has a wide current adjustment range of over
10:1. It enables three type models to cover a wide
range from 0.1A up to 600A thus reducing the
number and type of relays that must be inventoried
for spare purposes.

LOOPING OPTION
Some motor size may require only one-third or
one-fourth of particular EOCR current range. These
installations can be accommodated by looping
the motor wire 2 or 3 times through the integral
current transformers of the EOCR. This reduces
the number and type of relays inventoried for
spare purposes. Each additional loop will increase
the current measured as indicated by the following
chart.

EOCR-

Type

EOCR-SS

Current range

05)0.5-6A

30)3-30A

60)5-70A

Rated voltage

440VAC,50/60Hz

Operating setting

D-TIME

0.2-30 seconds

O-TIME

0.2-10 seconds

Accuracy

Current

±10%



Time

±15% of max.time set value

Time characteristics

Definite time

Control voltage

180V ,50/60Hz

440V ,50/60Hz

Other voltage optional.

Current sensing

2 CTs

Output contacts

Contacts

SPDT 3A/250AVC Resistive

Contacts

N  Type

Normally energized:9598closed

R  Type

Normally De-energized:95  98closed

Reset

Manual or remote electrical by interrupting supply

Environment

Temp.Run

Run

-20+70 deg.oC

Store

-30+80 deg.oC

Humidity

45-85% RH,non-condsing

Insulation

Between casing and circuits:Over 10MΩwith DC 500V megger

Dielectric strength

1)Btween casing and circuits:AC 2000V,60Hz,1min

2)Btween contacts: AC 1000V,60Hz,1min

3)Between circuits:AC 2000V,60Hz.1min

Power consumption

Under 2W

Mounting

35mm Din Rail(D)



Electronic Overload Current Protection Relay EOCR relayElectronic Overload Current Protection Relay EOCR relayElectronic Overload Current Protection Relay EOCR relay

Packaging & Shipping



Packaging Details:

standard export package

Delivery Detail:

5-15 days

 Electronic Overload Current Protection Relay EOCR relay

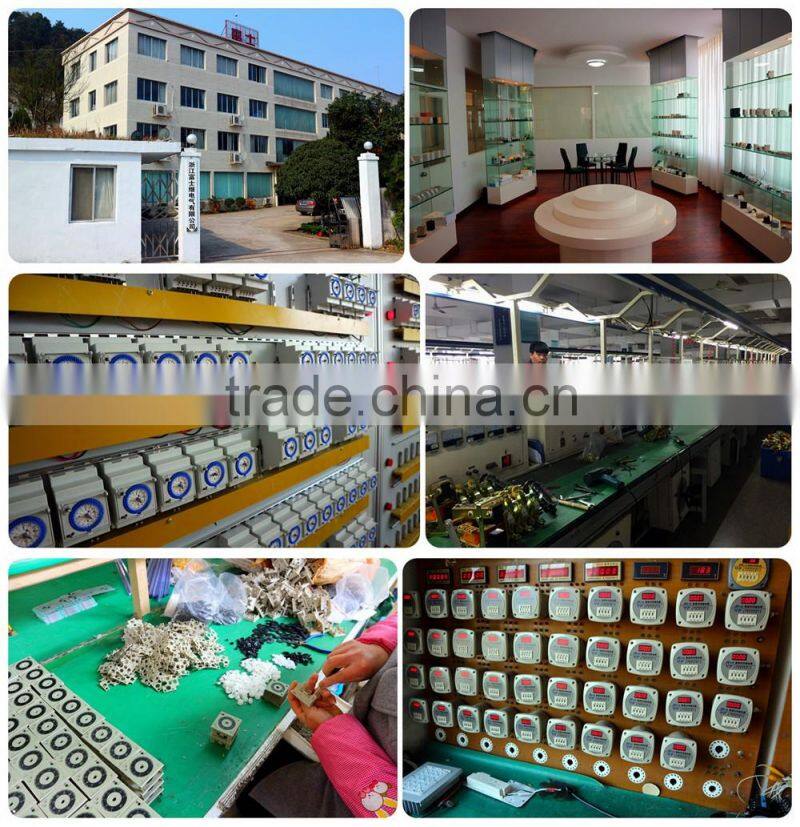

Company Information

 Electronic Overload Current Protection Relay EOCR relayElectronic Overload Current Protection Relay EOCR relayElectronic Overload Current Protection Relay EOCR relay

SS Overload Eletronic Digital Relay Motor Protector
