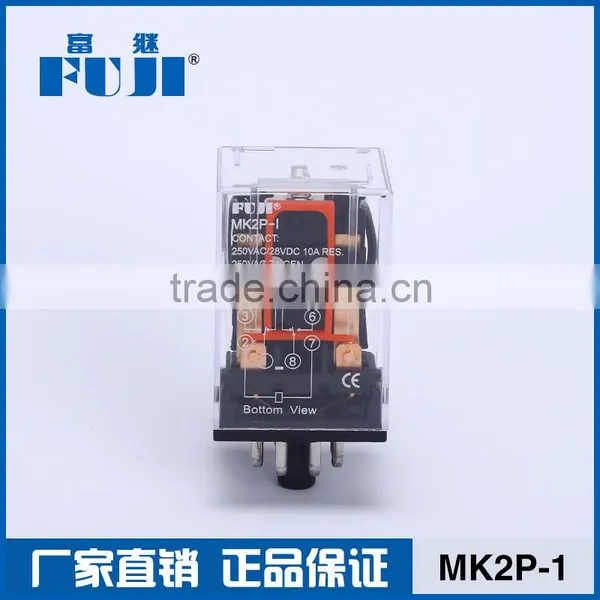

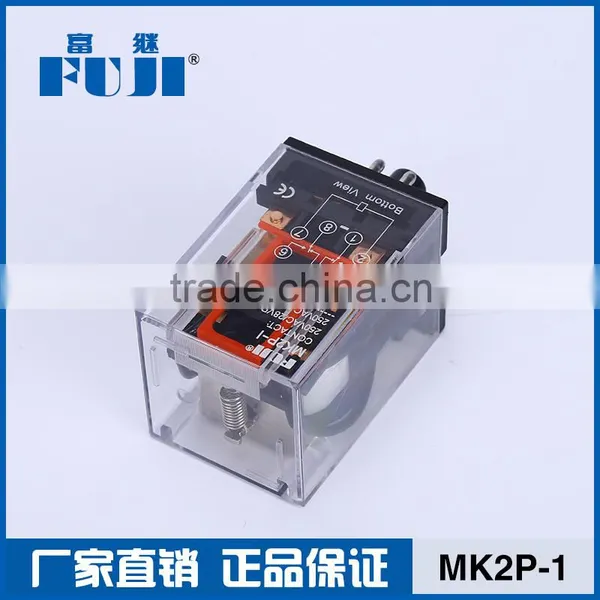

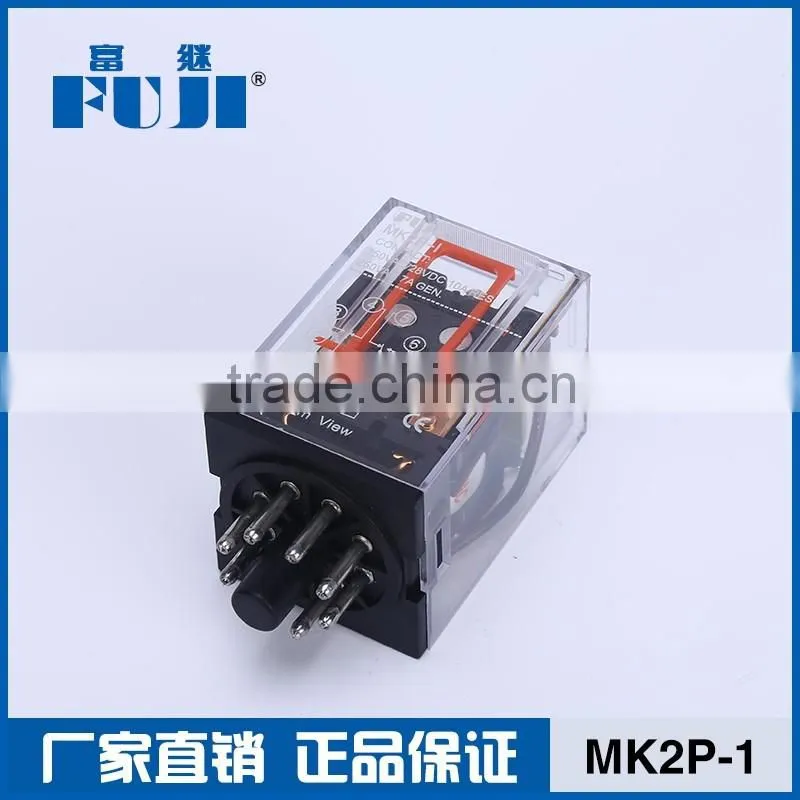

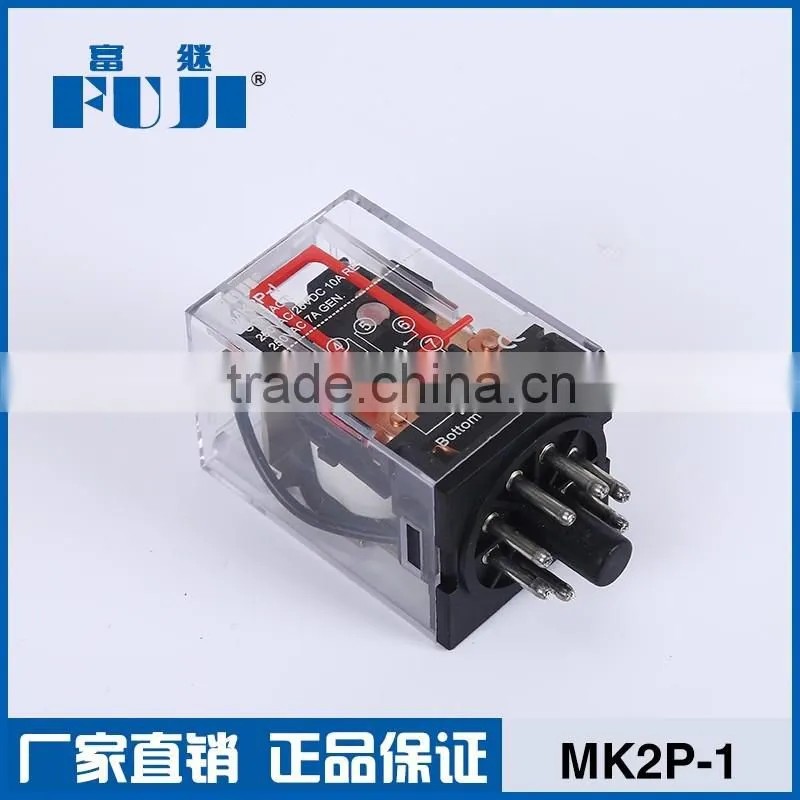

Help Center8 Pin General Purpose Relay MK2P-1
US$ 1.2 - 1.7
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
FUJI
Model Number:
MK2P-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
LED Display Time Relay DC24V JS14SUS$ 6 - 7.8MOQ: 10 Pieces -
EOCR-SS Electronic Overload RelayUS$ 5 - 6MOQ: 10 Pieces
-
DH48S (JSS48A) Digital Display Time RelayUS$ 4.5 - 7.1MOQ: 10 Pieces
-
China Supplier Digital Timer Relay JSS48A-S(DH48S-S)US$ 4.5 - 7.1MOQ: 10 Pieces
-
Best Selling DH48S Digital Timer Relay / High Quality Timer Relay/relayUS$ 4.5 - 7.1MOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
FUJI
Model Number
MK2P-1
Theory
Electromagnetic Relay
Usage
General Purpose
Size
Miniature
Protect Feature
Other, Sealed, Epoxy
Contact Load
Low Power
Product Description
| Specifications Model | LY3 | LY4 | MK2P-I | |
| Terminal layout | 4Z | 2Z | 3Z | |
| Contact capacity | AC | 10A 250V | 10A 250V | 10A 250V |
| DC | 10A 28V | 10A 30V | 10A 30V | |
| Contact resistance(mΩ) | ≤50mΩ | ≤50mΩ | ≤50mΩ | |
| Insulation resistance(MΩ) | ≥100MΩ | ≥500MΩ | ≥500MΩ | |
| Dielectric strength | BOC | 1000VAC | 1500VAC | 1500VAC |
| BCC | 1500VAC | 1500VAC | 1500VAC | |
| Coil nominal voltage | AC | 6 to 240V | 6 to 380V | 6 to 380V |
| DC | 6 to 110V | 6 to 220V | 6 to 220V | |
| Coil nominal power | AC | ≤2.5VA | ≤2.8VA | ≤2.8VA |
| DC | ≤1.6W | ≤1.6W | ≤1.6W | |
| Electrical life(OPS) | 105 | 105 | 105 | |
| Mechanical life(OPS) | 107 | 107 | 107 | |
| Operating temperature(oC) | -40~+70 | -40~+60 | -40~+60 | |
| Weight(g) | ≤70 | ≤80 | ≤80 | |
| Mounting methods | Printed-circuit board, Flange, Outlet | Outlet | Outlet | |
Packaging & Shipping
Packaging Details: |
standard export package |
Delivery Detail: |
3-10 days |
