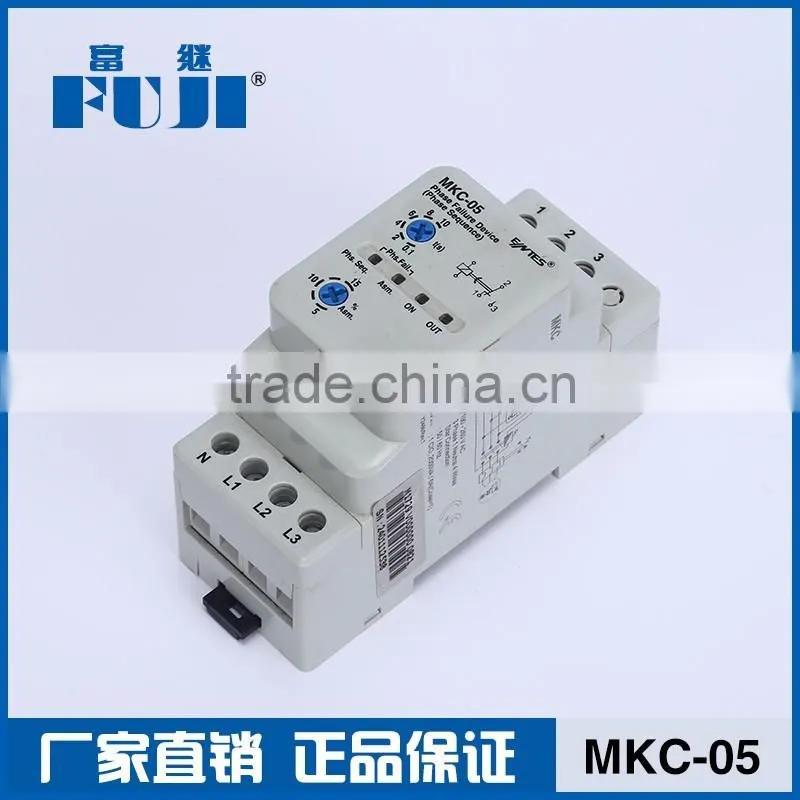

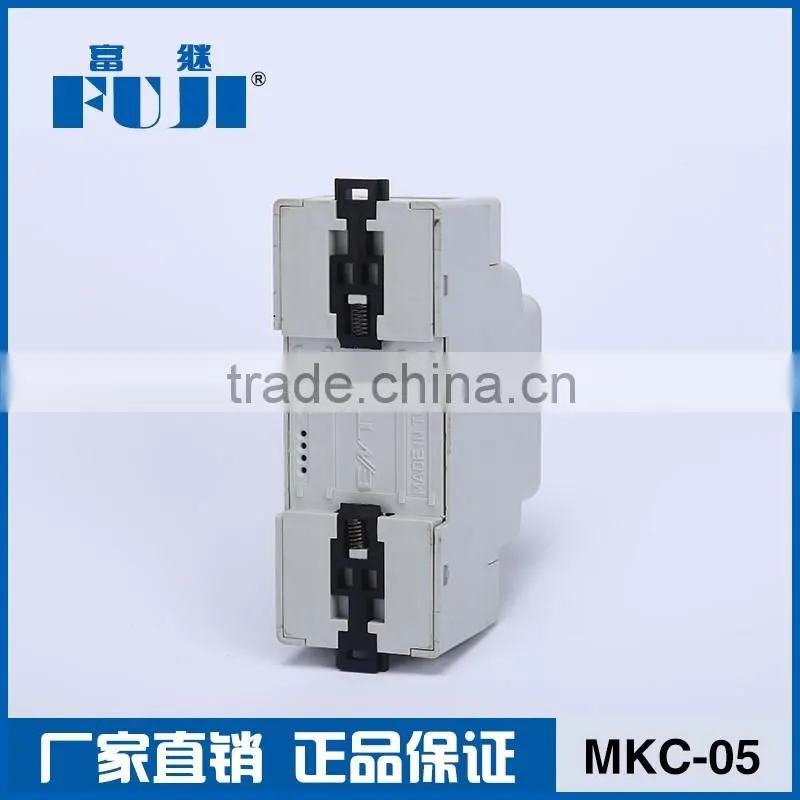

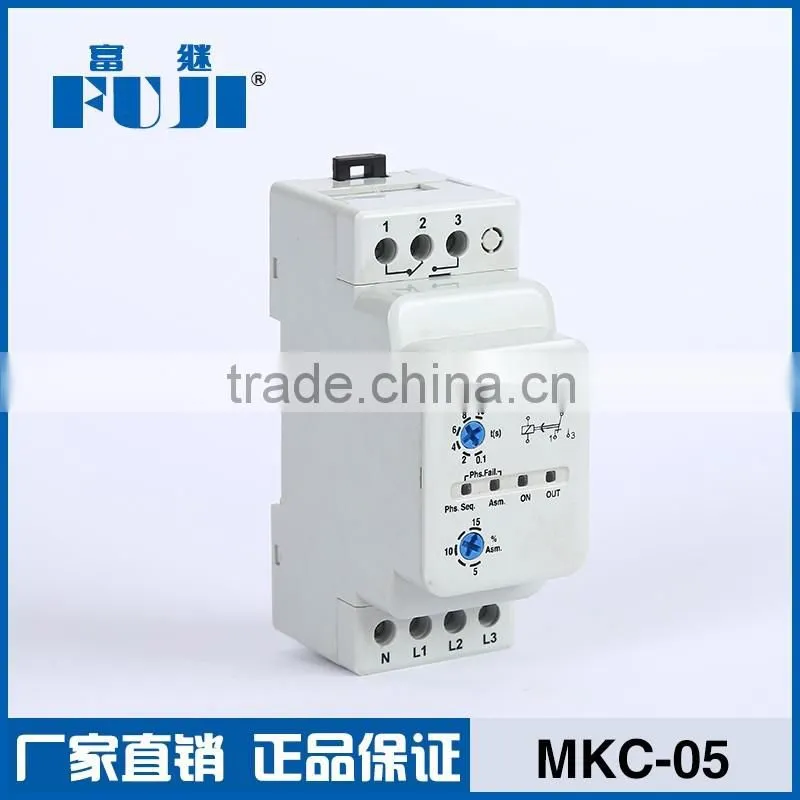

Professional Production Hot Selling Phase Failure Protection Relay MKC-05/MKC-06

Professional Production Hot Selling Phase Failure Protection Relay MKC-05/MKC-06 thumbnail-1
Professional Production Hot Selling Phase Failure Protection Relay MKC-05/MKC-06 thumbnail-2
Professional Production Hot Selling Phase Failure Protection Relay MKC-05/MKC-06 thumbnail-3
Professional Production Hot Selling Phase Failure Protection Relay MKC-05/MKC-06 thumbnail-4
Professional Production Hot Selling Phase Failure Protection Relay MKC-05/MKC-06 photo-1
Professional Production Hot Selling Phase Failure Protection Relay MKC-05/MKC-06 photo-2
Professional Production Hot Selling Phase Failure Protection Relay MKC-05/MKC-06 photo-3
Professional Production Hot Selling Phase Failure Protection Relay MKC-05/MKC-06 photo-4
US$ 7.8 - 9.2 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
FUJI
Model Number:
MKC-05
Contact Supplier Request Quote Chat Now
Zhejiang Fushi Relay Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name FUJI
Model Number MKC-05
Theory Voltage Relay
Usage General Purpose
Size Miniature
Protect Feature Sealed
Contact Load Low Power
Product Description

Technical data:

 Rated Voltage(un):220VAC(For MK-05/05P,MKC-05/05P)

                                   3 phase+neutral:4 wires connection

                                   120VAC

                                   3 phase+neutral:4 wires connection
                                   (MKC-05/05P Special design)

                                   380VAC

                                   3 phase:3 wires connection

                                   (For MK-06/06P,MKC-06/06P)

                                   440VAC

                                   3 phase:3 wires connection

                                   ( MKC-06/06P Special design)
The three phase network being protected is used as the device power supply.

Operating Range:(0.9-1.1)xUn
Rated Frequency:50/60Hz
Output Contacts:1C/O with 8A,2000VA(FOR RESISTIVE LOAD)
Asymmetry Range:5%-15%;3x380VAC
Tripping Time:0.1-10sec.(adjustable)
Phase Sequence:Available
Ambient Temperature:-5℃ to+50℃
Protection Class:IP 20
Installation:Surface mounting or on the mounting rails



Type Character of Protection unbalance voltage  fault time working voltage
220VAC 380V AC
MK-01 1,4 %20constant 0.2s constant √
MK-01P 1,3,5
MKS-01 1,4 %20constant 0.2s constant √
MKS-03 1,2,4 %40constant
MK-03 1,2,4 %40constant 0.2s constant √
MK-03P 1,2,3,4
MK-04 1,2,4 %40constant 0.2s  adjustable   √
MK-04P 1,2,3,4
MK-05 1,2,4 %5-%15  adjustable 0.1-10s  adjustable √
MK-05P 1,2,3,4
MK-06 1,2,4 %5-%15  adjustable 0.1-10s  adjustable   √
MK-06P 1,2,3,4





POINT

 1.Phase Failure

  When the monitored 3 phase voltage are valid,the output relay is activated;If any of 3 phases fails,the output device switches OFF immediately.Relay LED is OFF,Asymmetry and Phase Sequence error LEDs are ON.

2.Phase Sequence

  When the phase sequence is correct(L1,L2,L3 in clockwise direction) the output relay is activated;however,if the sequence is changed by any reason,the output relay switches OFF immediately.Relay LED is OFF,Phase Sequence error LED is ON.

3.PTC Protection (Only Available in MK-05P,MKC-05P,MKC-06P&MK-06P versions)

  When the coil temperature in motors exceeds Tc,the limit temperature of PTC,the output relay switches off immediately,Relay LED is OFF.This feature is included only in MK-05P,MKC-05P,MK-06P and MKC-06P.See following figure for typical resistance of PTC vs temperature characteristics for three different swiching temperatures(110 ℃,120 ℃,130℃).Normally,PT-110 is used and it can be changed upon request.

Professional Production Hot Selling Phase Failure Protection Relay MKC-05/MKC-06

4.Voltage Unbalance(Both Unbalance and Delay Adjustable)

  When the phase-phase voltage unbalance is less than the adjusted value by the user,output relay is activated.Ig the unbalance value exceeds the limit value(5%-15%)set by the user,output relay is switched OFF at the end of relay time(0.1...10s) that is also set by the user.Relay LED is OFF,Asymmetry error LED is ON.If the fault disappears within the delay time,the output relay is not switched OFF.

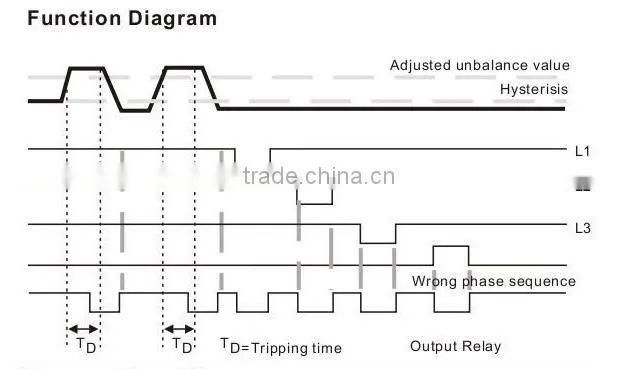

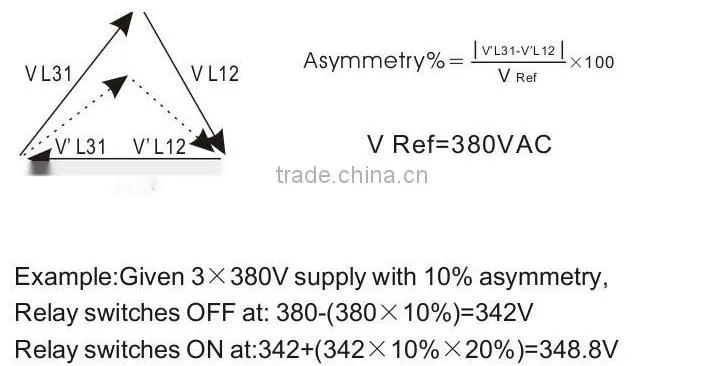

  The voltage unbalance occurs if the phases L1,L2,L3 are loaded unequally.This case is caused by a non-uniform distribution of loads on the lines.The voltage asymmetry causes rise in of the motor temperature and a reduction of the reted motor power.

  Voltage asymmetry limit values are adjusted(5%-15%)by the user.Hysteresis is fixed at 20%

Professional Production Hot Selling Phase Failure Protection Relay MKC-05/MKC-06

5.Insuffi cient Supply

  L1 is the supply phase of the MK-05 and MK-05P in Pk21 Package while L3 is the supply phase of the MKC0-05 and MKC-05P devices.For MK and MKC devices if supply of voltage falls below 60-65% of rated voltage,output relay switches off without delay and error leds start to blink one after another sequentially.

Professional Production Hot Selling Phase Failure Protection Relay MKC-05/MKC-06

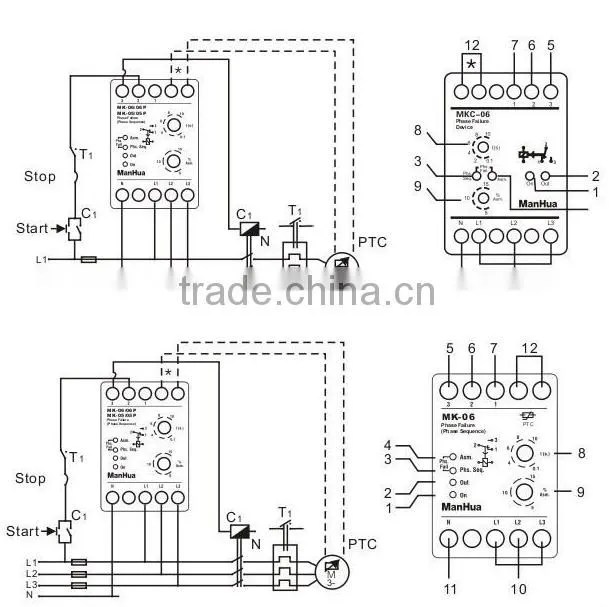

 Connection Diagrams

Professional Production Hot Selling Phase Failure Protection Relay MKC-05/MKC-06

 Professional Production Hot Selling Phase Failure Protection Relay MKC-05/MKC-06Professional Production Hot Selling Phase Failure Protection Relay MKC-05/MKC-06Professional Production Hot Selling Phase Failure Protection Relay MKC-05/MKC-06

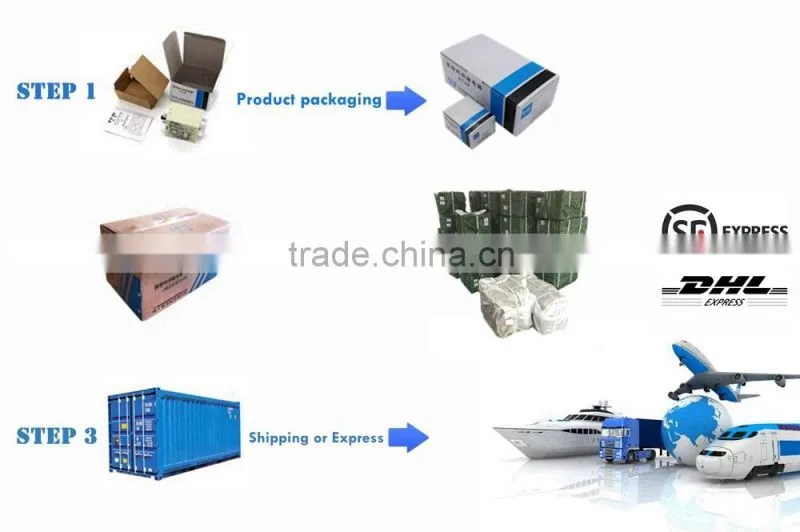

Packaging & Shipping
