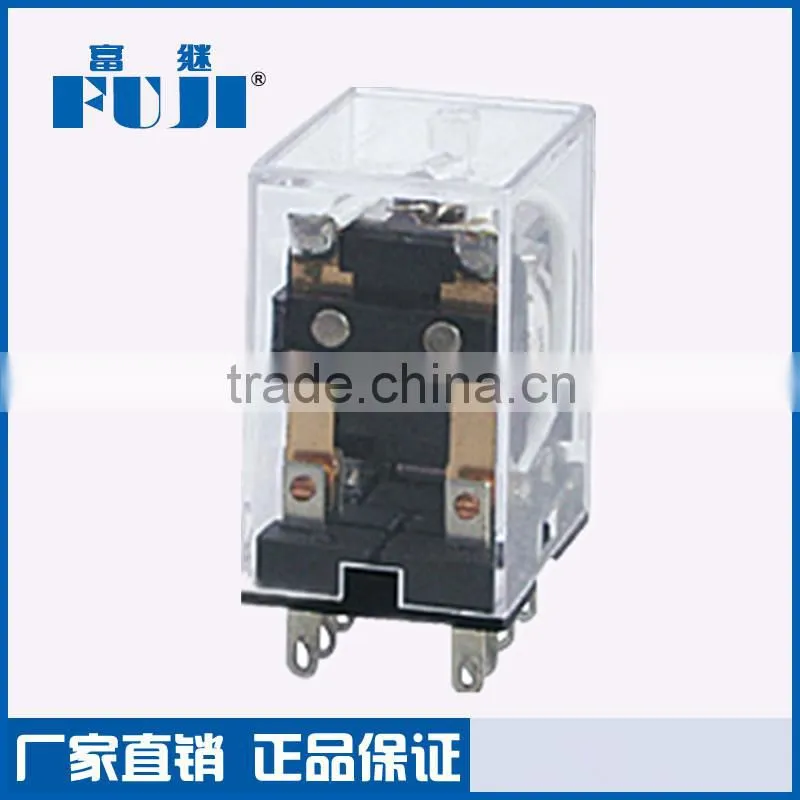

8 Pin Electric General Purpose Power Relay MY2(HH52P)

8 Pin Electric General Purpose Power Relay MY2(HH52P) thumbnail-1
8 Pin Electric General Purpose Power Relay MY2(HH52P) photo-1
US$ 0.6 - 1.2 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
FUJI
Model Number:
MY2
Contact Supplier Request Quote Chat Now
Zhejiang Fushi Relay Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name FUJI
Model Number MY2
Theory Electromagnetic Relay
Usage Other, General Purpose, PCB
Size Miniature
Protect Feature Sealed
Contact Load Low Power

8 Pin Electric General Purpose Power Relay MY2(HH52P)

Product Description



1.Specification

  • Various relays, including LED and high capacity
  • With 2Z, 3Z, 4Z contact forms
  • With various terminal types
  • Gilt contact type
  • Dust-proof cover, various mounting types
  • Various sockets available
Contact ratings 2Z, 2C/3Z, 3C 4Z, 4C
Contact resistance 50mΩ(1A 6VDC) 100mΩ(1A 6VDC)
Contact capacity 5A/250VAC 30VDC 3A, 5A/250VAC 28VDC
Insulation resistance 500MΩ (500VDC)
Dielectric strength BCC ≥1500VAC 1min
BOC ≥1000VAC 1min
COC ≥1500VAC 1min
Operate time 25ms/15ms



Model Coil Electrica Mechanical Opetating Weight Mounting
Rated voltage Rated power life life temperature methods
HH52P (MY2) DC 6 to 220V DC≤0.9W 105 OPS 107 OPS -40°C~65°C ≤32g Printed-circuit
board, Flange,
outlet
AC 6 to 380V AC≤1.2VA
HH53P (MY3) DC 6 to 220V DC≤0.9W 105 OPS 107 OPS -40°C~65°C ≤35g
AC 6 to 380V AC≤1.2VA
HH54P (MY4) DC 6 to 220V DC≤0.9W 105 OPS 107 OPS -40°C~65°C ≤35g
AC 6 to 380V AC≤1.2VA



CLASSIFICATION MINIAURE POWER RELAY SERIES
MODEL MY2,-S,-N,-F,-O MY3,-S,-N,-F,-O MY4,-S,-N,-F,-O
DIMESIONS(mm) 27.5*21.5*35 27.5*21.5*35 27.5*21.5*35
CONTACT FORM 2Z 3Z 4Z
CONTACT CAPACITY 5A 250V AC 5A 250V AC 3A 250V AC
COIL VOLTAGE DC 6-220V
AC 6-380V
COIL POWER DC:≤0.9W AC:≥1.2VA
PICK-UP 80% max
DROP-OUT AC 30% mix DC 10% min
CONTACT RESISTANCE ≤50mΩ
INSULATION TESISTANCE ≥100mΩ
LIFE ELECTRICAL 10 5 times
MECHANICAL 10 7 times
DIELECTRIC STRENGTH BETWEEN OPEN CONTACTS AC 1000V 50/60Hz/min
BETWIN COIL&CONTACT AC 1500V 50/60Hz/min
MOUNTING FORM P.C.B&Socket
OPERATING TEMPERATURE -40ºC-+70ºC
WEIGHT About 35g About 35g About 53g
LIKE PRODUCTS American P&B l10KH2
FUJITSU HH52P
Shangwuba Manufactory 4140		 American P&B l10KH2
FUJITSU HH52P
Shangwuba Manufactory 4140		 American P&B l10KH2
FUJITSU HH52P
Shangwuba Manufactory 4140
FITTED SOCKET PYF08A
PYF08A-E
PY-08 		PYF08A
PYF08A-E
PY-08 		PT-11
PTF11A
REMARKS with lamp:-N,FLANGE:-F,with bottom:-S,PCB:-O
