S0600MD Metal Gear 180degree 6kg Digital Robot Servo

S0600MD metal gear 180degree 6kg digital robot servo

Features:

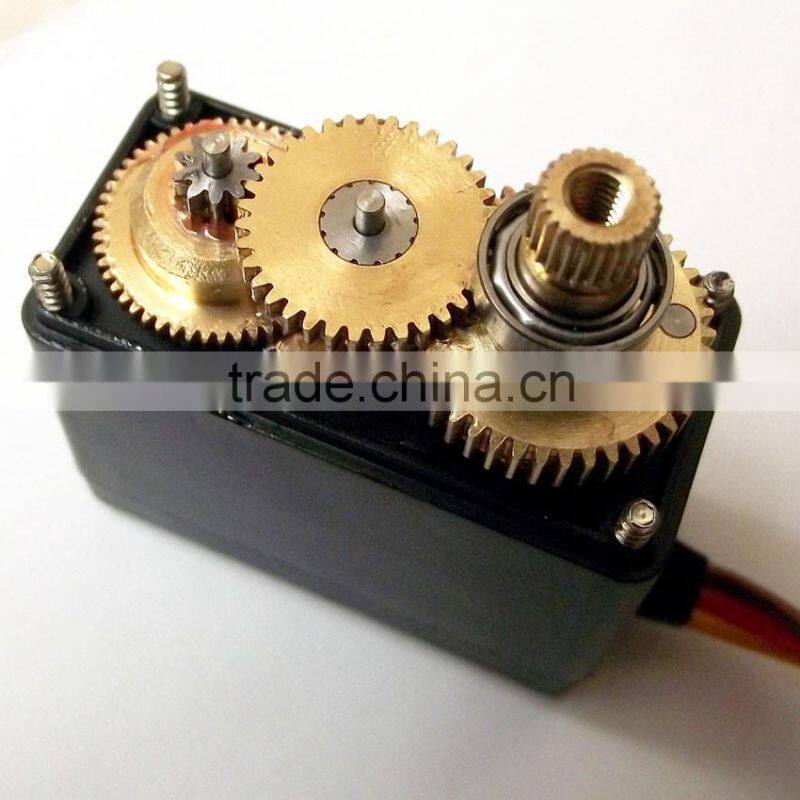

High presicion copper gears made by CNC;

Select torque motor,could compare with import one;

1million life Potentiometer;

expert and experienced in circuit for 8 years;

TOP choice on case plastic,and best mold manufacture

Futaba,JR,SANWA,Hitec compatible.

Waterproof,12bit Digital IC

Specifications Figure:

Specifications:

                        Item No. S0600MD

Operating Voltage:           4.8V~7.4V

Speed:                                0.14 sec/60deg (4.8v)    0.12sec/60deg (6v)

Locked-Rotor Torque:      6.5kg.cm (4.8v)          7.5kg.cm (6v)

Size:                                    40mmX20mmX37mm

Weight:                               52gram

Motor:                                 3 pole Core motor

Gear Train:                         Metal(copper gear)

Ball Bearing:                      2BB

Dead band width:              2usc

Interface:                            (JR)

Wire length:                       30cm

Type:                                   Digital,2BB,metal gear

Rotation angle:                 180degree(PWM1000-2000us)

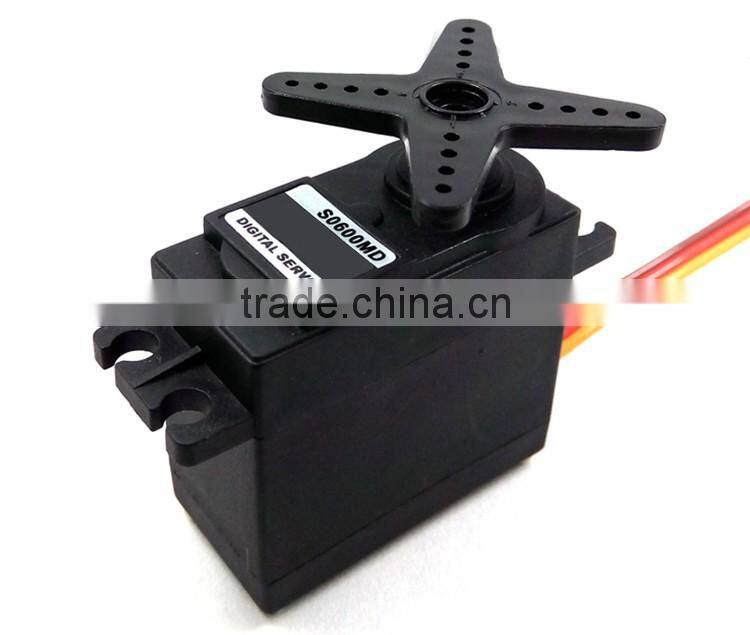

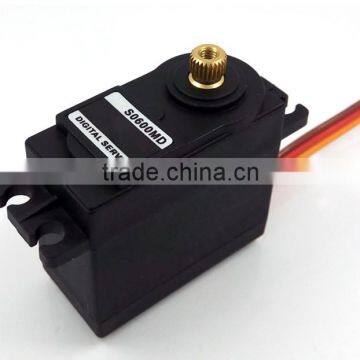

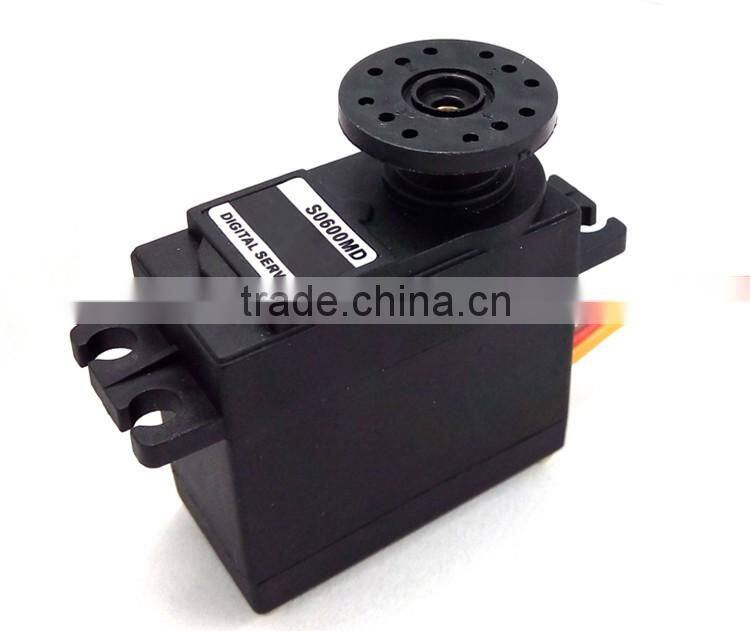

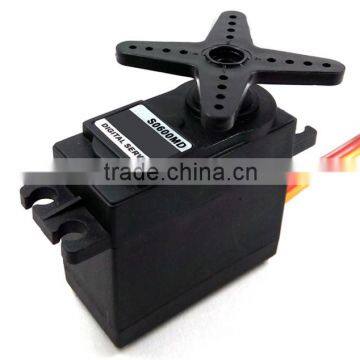

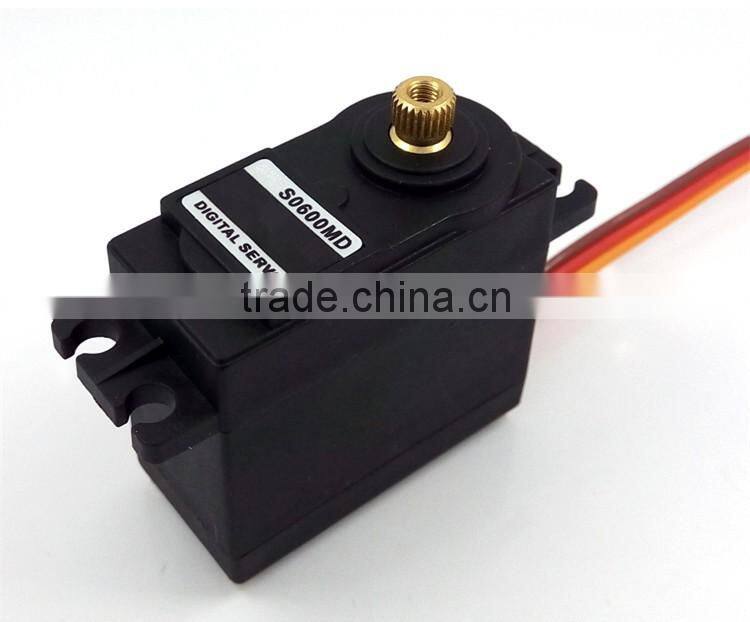

Product View:

Important Notes:

*Please specify the plug(JR or Futaba connector),or we offer JR plug for you,for it is compatible.Futaba plug.
*Please do read the instruction before you install the servo.Rubber grommet must be used to reduce vibration when you install the servo on GP airplane,GP car or GP boat.
*Please choose suitable servo for you rc model.Torque overload will damage your servo.
*Keep the servo clean and away from dust,corrosive gas and humid air.
*Specification are subject to change without notice

Packing include:

 1pcs x S0600MD  servo

 Accessaries:servo horns,rubber grommets, eyelets and mounting screws

 1 x double sided servo horn       1 x 4-arm servo horn    1 x 6-arm servo horn    1 x round servo disc
 4 x rubber grommets with brass inserts           4 x mounting screws
 1 x mounting bolt 3x 8mm for servo horn installation on the ball raced brass output shaft with 25T-spline drive
 GW: 75 g

Packing:

Certificate:
