CLS090TD Titanium Gear HV 9kg Coreless Digital Servo

CLS090TD Titanium Gear HV 9kg Coreless Digital Servo thumbnail-1
CLS090TD Titanium Gear HV 9kg Coreless Digital Servo thumbnail-2
CLS090TD Titanium Gear HV 9kg Coreless Digital Servo photo-1

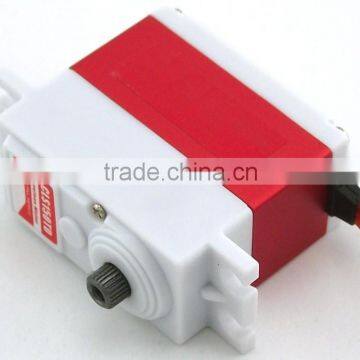

CLS090TD Titanium Gear HV 9kg Coreless Digital Servo photo-2
US$ 16.5 - 35 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Type:
Airplane
Power:
Battery
Material:
Plastic
Contact Supplier Request Quote Chat Now
Hangzhou Reacher Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Airplane
Power Battery
Material Plastic
Plastic Type ABS
Scale Other, model plane/boat/car
Radio Control Style RC Model
Place of Origin Guangdong, China
Brand Name OEM
Model Number CLS090TD

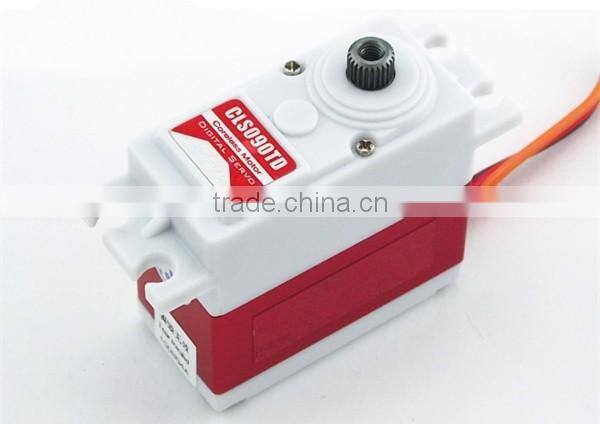

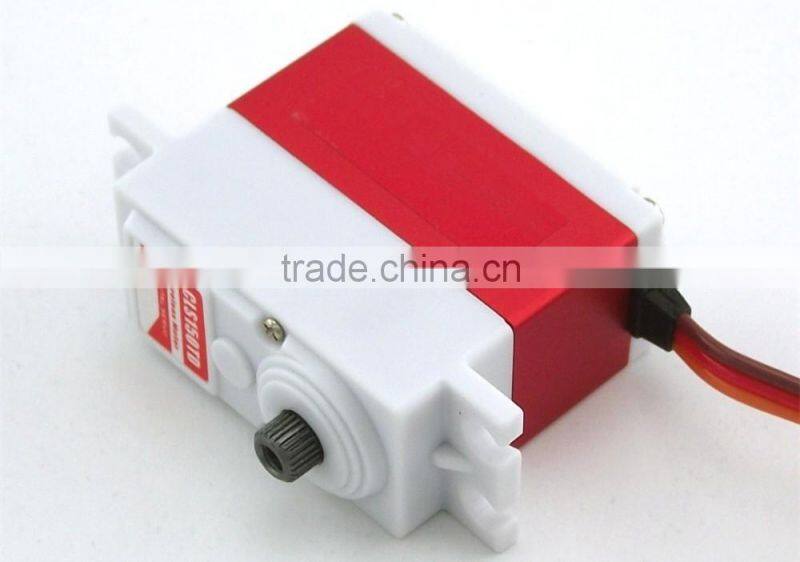

CLS090TD Titanium Gear HV 9kg Coreless Digital Servo



 CLS090TD Titanium Gear HV 9kg Coreless Digital Servo



CLS090TD Titanium Gear HV 9kg Coreless Digital Servo





CLS090TD Titanium Gear HV 9kg Coreless Digital Servo





Feature:



High presicion titanium alloy gears made by CNC;



Select coreless motor,could compare with import one;



1million life Potentiometer;



expert and experienced in circuit for 8 years;



TOP choice on case plastic,and best mold manufacture



Standard Size,Coreless,digital,Titanium gears,25T,2BB



Futaba,JR,SANWA,Hitec compatible.



Waterproof



Install with 6pcs screws to make sure it is strong enough,



Aluminium middle case for heatsink







Specifications:





Item No. CLS090TD



Operating Voltage: 6V~7.4V



Speed: 0.10 sec/60deg (6.0v) 0.08sec/60deg (7.4v)



Locked-Rotor Torque: 11kg.cm (6.0v) 13.8kg.cm (7.4v)

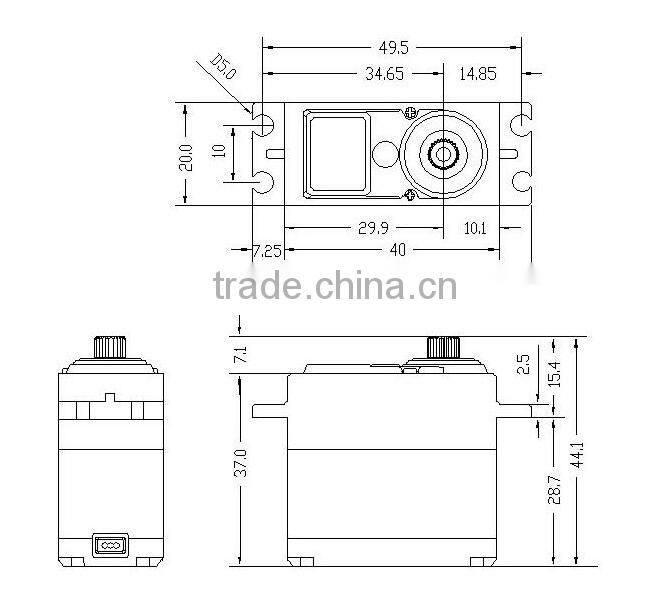

Size: 40mmX20mmX37mm



Rotation angle:180degree(PWM500-2500us)



Weight: 58gram



Motor: Coreless



Gear Train: Metal(Titanium gear)



Ball Bearing: 2BB



Dead band width: 2usc



Interface: (JR)



Wire length: 30cm



Type: Digital,Aluminium heat sink,Coreless







[Notes]



*Please specify the plug(JR or Futaba connector),or we offer JR plug for you,for it is compatible.Futaba plug.



*Please do read the instruction before you install the servo.Rubber grommet must be used to reduce vibration when you install the servo on GP airplane,GP car or GP boat.



*Please choose suitable servo for you rc model.Torque overload will damage your servo.



*Keep the servo clean and away from dust,corrosive gas and humid air.



*Specification are subject to change without notice





[Packing include]



1pcs x CLS090TD servo



Accessaries:servo horns,rubber grommets, eyelets and mounting screws



1 x double sided servo horn 1 x 4-arm servo horn 1 x 6-arm servo horn 1 x round servo disc

4 x rubber grommets with brass inserts 4 x mounting screws

1 x mounting bolt 3x 8mm for servo horn installation on the ball raced brass output shaft with 25T-spline drive

GW: 75 g



CLS090TD Titanium Gear HV 9kg Coreless Digital Servo





Packing:





CLS090TD Titanium Gear HV 9kg Coreless Digital Servo









Certificate:





 CLS090TD Titanium Gear HV 9kg Coreless Digital Servo
