21KG High Torque 180 Degree Robot Servo Robots Arm Servo

21KG High Torque 180 Degree robot servo robots arm servo

Feature:

-- High performance digital standard servo

-- High-precision Taiwan-made metal gears

-- High quality brushed motor

-- Dual ball bearings

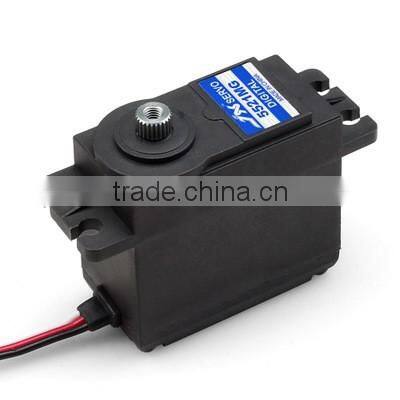

1.PDI 5521MG Specifications:

Dead band: 2μsl

Max Pulse Width: 900-2100us  (Fit for remote control)

Max Degree:120°

Working frequence: 1520μs / 330hz

Operating Voltage: DC4.8~6.0 V

Operating Speed (4.8V): 0.18sec/60 degrees

Operating Speed (6V): 0.16 sec/60 degrees

Stall Torque (4.8V): 17.25kg.cm (239.55oz/in)

Stall Torque (6.0V): 20.32 kg.cm (281.89 oz/in)

Dimensions: 40.5X20.2X44.2mm /1.59 X0.80X1.74 in

Weight: 55.6 g (1.96oz)

Connector Wire Length: JR 265 mm (10.43in)

Output :25T  (Futaba ok)

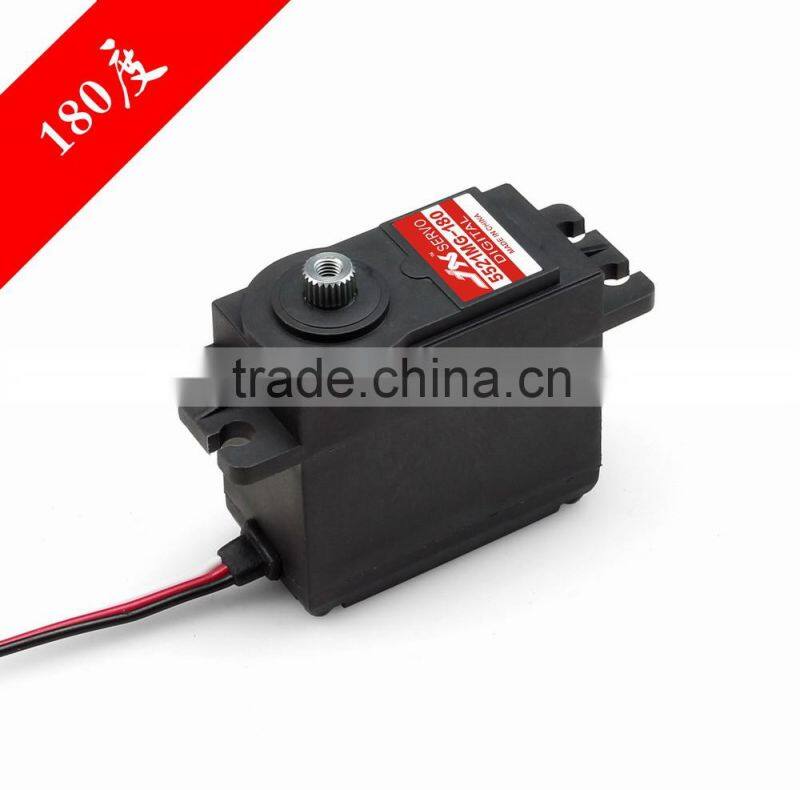

2.PDI 5521MG-180 degree Specifications:

Dead band: 2μsl

Max Pulse Width: 500-2500us  (Fit for MCU)

Angel Range:   172±2°

Working frequence: 1520μs / 330hz

Operating Voltage: DC4.8~6.0 V

Operating Speed (4.8V): 0.18sec/60 degrees

Operating Speed (6V): 0.16 sec/60 degrees

Stall Torque (4.8V): 17.25kg.cm (239.55oz/in)

Stall Torque (6.0V): 20.32 kg.cm (281.89 oz/in)

Dimensions: 40.5X20.2X44.2mm /1.59 X0.80X1.74 in

Weight: 55.6 g (1.96oz)

Connector Wire Length: JR 265 mm (10.43in)

Output :25T  (Futaba ok)

 This Type is DIY version, it's not fit for the starter.

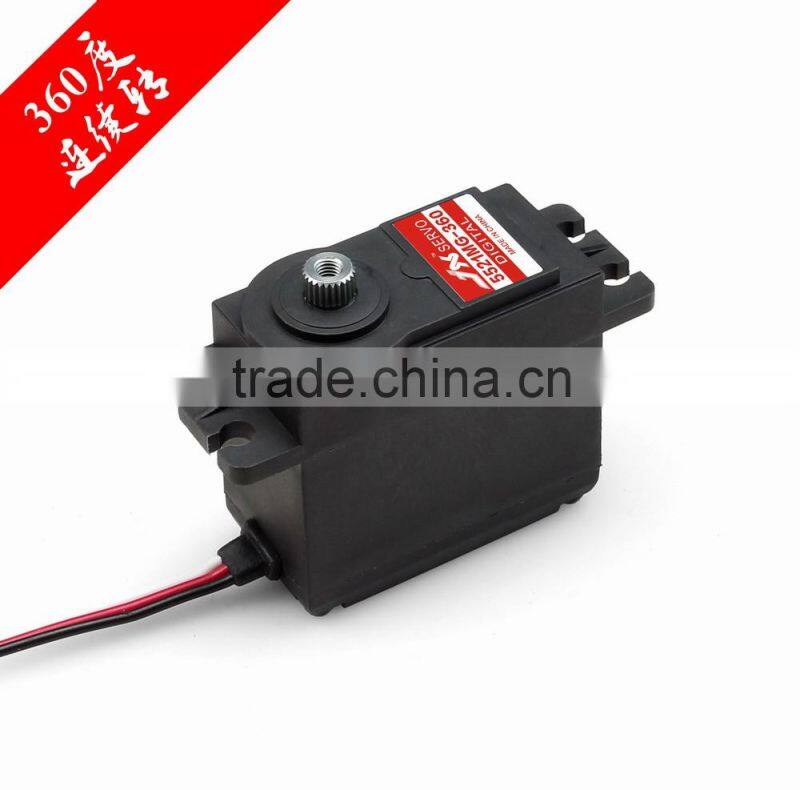

3.PDI 5521MG-360 degree Specifications:

Dead band: 2μsl

Max Pulse Width: 500-2500us, (0.5-2.5ms) when it at 1500us, it's stopped. (Fit for MCU and Remote Control)

Angel Range:   360°

Working frequence: 1520μs / 330hz

Operating Voltage: DC4.8~6.0 V

Operating Speed (4.8V): 0.18sec/60 degrees

Operating Speed (6V): 0.16 sec/60 degrees

Stall Torque (4.8V): 17.25kg.cm (239.55oz/in)

Stall Torque (6.0V): 20.32 kg.cm (281.89 oz/in)

Dimensions: 40.5X20.2X44.2mm /1.59 X0.80X1.74 in

Weight: 55.6 g (1.96oz)

Connector Wire Length: JR 265 mm (10.43in)

Output :25T  (Futaba ok)

 This Type is DIY version, it's not fit for the starter.It suit for DIY car.

For example, when you used for DIY car,

1500us stop or drag brake.   outof 1500us it's forward or backward.

PDI-6221MG-360:1500us-500us CW,1500us-2500us CCW

PDI-6221MG+360:1500us-500us CCW,1500us-2500us CW.
