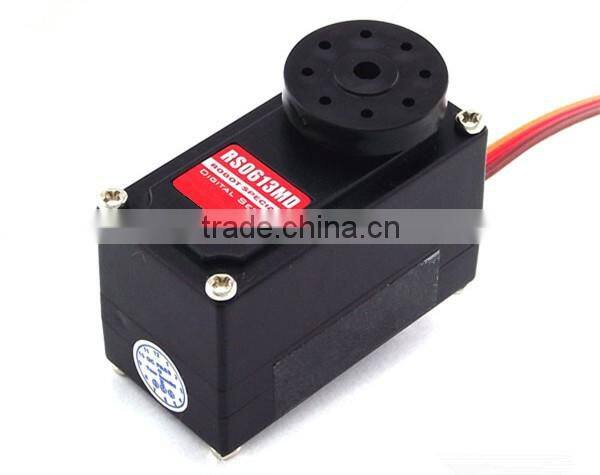

RS0613MD Metal Titanium Alloy Gear 6kg 270degree Low Profile Robotics Servo for 17DOF Humanoid Robot

RS0613MD Metal titanium alloy Gear 6kg 270degree low profile Robotics Servo for 17DOF Humanoid robot

Features:

High presicion titanium alloy gears made by CNC;

Select torque motor,could compare with import one;

1million life Potentiometer;

expert and experienced in circuit for 8 years;

TOP choice on case plastic,and best mold manufacture

Futaba,JR,SANWA,Hitec compatible.

Waterproof

Specifications Figure:

Specifications:

                   Item No. RS0613MD

Operating Voltage:         5.5V~7.4V

Speed:                               0.23 sec/60deg (6v)    0.21sec/60deg (7.4v)

Torque:                             6.5kg.cm (6v)   7.5kg.cm (7.4v)     (Note:need UBEC if use 2S Lipo)

Size:                                  44mmX23mmX26.5mm

Weight:                             51gram

Motor:                               3 pole Core motor

Gear Train:                      Metal(Titanium gear)

Ball Bearing:                   2BB

Dead band width:          2usc

Interface:                          (JR)

Wire length:                    30cm

Type:                                Digital,low profile

Rotation angle:              270degree(PWM500-2500us)

Product View:

Important Notes:

*Please specify the plug(JR or Futaba connector),or we offer JR plug for you,for it is compatible.Futaba plug.
*Please do read the instruction before you install the servo.Rubber grommet must be used to reduce vibration when you install the servo on GP airplane,GP car or GP boat.
*Please choose suitable servo for you rc model.Torque overload will damage your servo.
*Keep the servo clean and away from dust,corrosive gas and humid air.
*Specification are subject to change without notice

Packing include:

     1pcs x RS0613MD  servo

     GW: 70 g

Packing:

Certificate:
