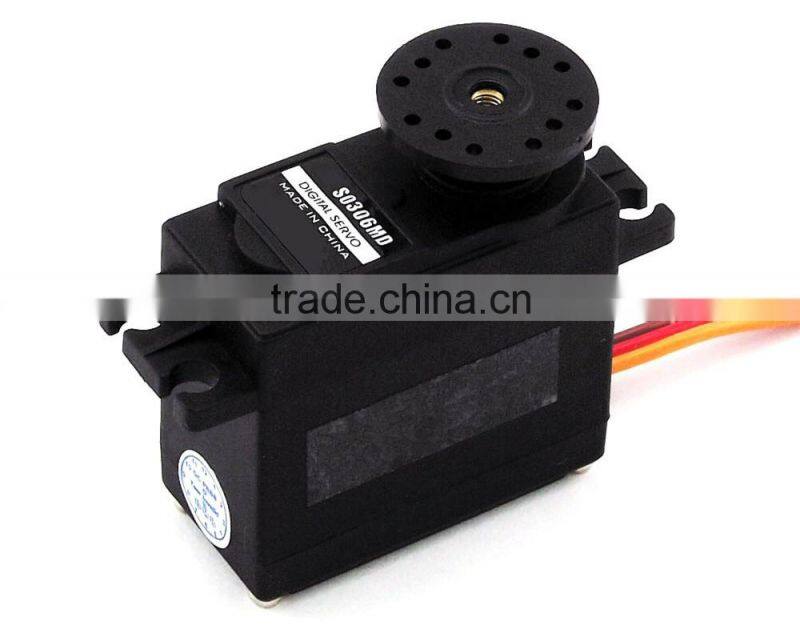

S0306MD Metal Gear 360degree Continuous Rotation 3kg Digital Robot Servo

S0306MD metal gear 360degree continuous rotation 3kg digital robot servo

Features:

High presicion copper gears made by CNC;

Select torque motor,could compare with import one;

1million life Potentiometer;

expert and experienced in circuit for 8 years;

TOP choice on case plastic,and best mold manufacture

Futaba,JR,SANWA,Hitec compatible.

Waterproof,12bit Digital IC

Specifications Figure:

Specifications:

                Item No. S0306MD

Operating Voltage:        4.8V~7.4V

Speed:                              0.14 sec/60deg (4.8v)    0.12sec/60deg (6v)

Locked-Rotor Torque:    3.5kg.cm (4.8v)          4.5kg.cm (6v)

Size:                                  40mmX20mmX37mm

Weight:                             52gram

Motor:                               3 pole Core motor

Gear Train:                      Metal(copper gear)

Ball Bearing:                   2BB

Dead band width:          2usc

Interface:                          (JR)

Wire length:                    30cm

Type:                                Digital,2BB,metal gear

Rotation angle:              360degree continuous rotation ( PWM 1500US,servo stop,other PWM servo turn continiuously,when 1000 -1500us,the far to 1500us,servo turn faster,when 1500us -2000us,the far from 1500us,servo turn faster )

Product View:

Important Notes:

*Please specify the plug(JR or Futaba connector),or we offer JR plug for you,for it is compatible.Futaba plug.
*Please do read the instruction before you install the servo.Rubber grommet must be used to reduce vibration when you install the servo on GP airplane,GP car or GP boat.
*Please choose suitable servo for you rc model.Torque overload will damage your servo.
*Keep the servo clean and away from dust,corrosive gas and humid air.
*Specification are subject to change without notice

Packing include:

     1pcs x S0306MD  servo

     Accessaries:servo horns,rubber grommets, eyelets and mounting screws

         1 x double sided servo horn       1 x 4-arm servo horn    1 x 6-arm servo horn    1 x round servo disc
         4 x rubber grommets with brass inserts           4 x mounting screws
         1 x mounting bolt 3x 8mm for servo horn installation on the ball raced brass output shaft with 25T-spline drive
     GW: 75 g

Packing:

Certificate:
