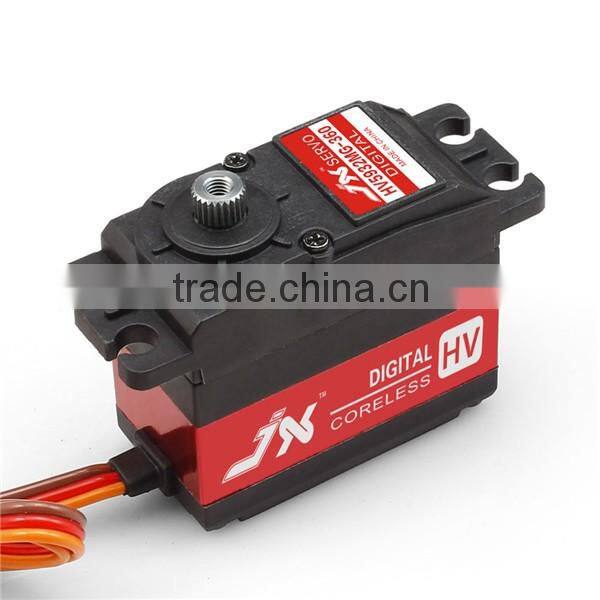

30KG High Torque HV5932MG rc Robot Digital Metal Gear Servo

30KG high torque HV5932MG intelligent vehicle servo 180 degree robot digital metal gear servo

Feature:

-- High performance digital high voltage coreless standard servo

-- High-precision Taiwan-made aluminium gears with hard anodizing

-- Dual ball bearings

-- CNC aluminium middle hull

-- Waterproof

1.PDI HV5932MG Specifications:

Max Pulse Width: 900-2100us  (Fit for remote control)

Max Degree:120°

Dead band: 1μs

Working frequence: 1520μs / 330hz

Motor: coreless motor

Operating Speed (6.0V): 0.12sec/85°

Operating Speed (8.4V): 0.1sec/85°

Stall Torque (6.0V):  25.2 kg.cm

Stall Torque (8.4V):  32.3kg.cm

Dimensions:  40.5X20.5X36mm

Weight: 59g

Connector Wire Length: JR 265 mm (10.43in)

Bearing: 2BB

Output :25T  (Futaba ok)

2.PDI HV5932MG-180 degree Specifications:

Max Pulse Width: 500-2500us  (Fit for MCU)

Angel Range:   172±2°

Dead band: 1μs

Dead band: 1μs

Working frequence: 1520μs / 330hz

Motor: coreless motor

Operating Speed (6.0V): 0.12sec/85°

Operating Speed (8.4V): 0.1sec/85°

Stall Torque (6.0V): 25.2 kg.cm

Stall Torque (8.4V): 32.3kg.cm

Dimensions: 40.5X20.5X36mm

Weight: 59g

Connector Wire Length: JR 265 mm (10.43in)

Bearing: 2BB

Output :25T (Futaba ok)

 This Type is DIY version, it's not fit for the starter.

3.PDI HV5932MG-360 degree Specifications:

Max Pulse Width: 500-2500us, (0.5-2.5ms) when it at 1500us, it's stopped. (Fit for MCU and Remote Control)

Angel Range:   360°

Dead band: 1μs

Working frequence: 1520μs / 330hz

Motor: coreless motor

Operating Speed (6.0V): 0.12sec/85°

Operating Speed (8.4V): 0.1sec/85°

Stall Torque (6.0V): 25.2 kg.cm

Stall Torque (8.4V): 32.3kg.cm

Dimensions: 40.5X20.5X36mm

Weight: 59g

Connector Wire Length: JR 265 mm (10.43in)

Bearing: 2BB

Output :25T (Futaba ok)

 This Type is DIY version, it's not fit for the starter.It suit for DIY car.

For example, when you used for DIY car,

1500us stop or drag brake.   outof 1500us it's forward or backward.

PDI-6221MG-360:1500us-500us CW,1500us-2500us CCW

PDI-6221MG+360:1500us-500us CCW,1500us-2500us CW.
