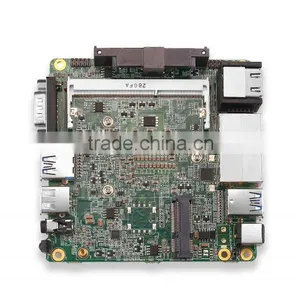

Intel Haswell 4th Gen. Celeron/i3/i5/i7 CPU NUC Motherboard ENC-H897

Intel Haswell 4th Gen. Celeron/i3/i5/i7 CPU NUC Motherboard ENC-H897 thumbnail-1
Intel Haswell 4th Gen. Celeron/i3/i5/i7 CPU NUC Motherboard ENC-H897 thumbnail-2
Intel Haswell 4th Gen. Celeron/i3/i5/i7 CPU NUC Motherboard ENC-H897 photo-1
Intel Haswell 4th Gen. Celeron/i3/i5/i7 CPU NUC Motherboard ENC-H897 photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Chipset Manufacturer:
Intel
Form Factor:
Other, 100MM*100MM
Contact Supplier Request Quote Chat Now
Shenzhen Yacoo Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Chipset Manufacturer Intel
Form Factor Other, 100MM*100MM
Memory Type DDR3
Graphics Card Type Integrated
Hard Drive Interface SATA
Brand Name YACOO
Model Number ENC-H897
Place of Origin Guangdong, China
Processor  CPU Intel® HaswellTM /BrodwellTM U-series CPU (dual core)compatible with I3/I5/I7
Chipset  Intel® Haswell
BIOS  SPI BIOS, CMOS 480mah
RAM  Architecture DDR3 MAX 1666 MT/s
Capacity  MAX 16GB
Socket  SODIMM
Display Graphic Controller Intel® HD4000 Graphic media accelerator
LVDS Dual channel 24 bit LVDS
Max. resolution: 1920 * 1080
HDMI  HDMI 1.4
Max. resolution: 4096 * 2304
Display Port DISPLAY PORT++ 1.2
Max. resolution: 3200 * 2000
Display  HDMI+DP+LVDS, Synchronous or asynchronous display
LAN  Controller  LAN 1: RTL8111E GbE
LAN 2: RTL8111E GbE
Audio Controller Realtek HD ALC662 audio decoder(Right&left Channel + Mic)
Super I/O  Controller  NT6102
H/W Monitor  Watch Dog Timer  0-255 sec., provide watch dog routine
Thermal DC +12V Fan, support SMART FAN and system temp. detection
TPM  Controller  N/A
I/O  USB  6*USB 3.0 PORT
Serial Port  2*TTL COM
Expansion Bus Mini-PCIe 1* full size Mini-PCIe(support PCIe & USB devices)(support M-SATA for storage only)
USIM 1 * standard 3G UIM socket
Storage Laptop SATA  7+15Pin, adopt onboard heightened connecto
Power  Power Type  DC9-19V extended voltage dynamic input,support reverse power protection
Power Consumption Typical Power: 15W
Indicator F_PANEL HDD LED/POWER LED/RESET/POWER BOTTOM
CIR CIR function
Environment  Operating Temp.  -0°C ~ 60°C
Storage Temp.  -40°C ~ 80°C
Operating Humidity  0% ~ 90% relative humidity, non-condensing
Storage Humidity  0% ~ 90% relative humidity, non-condensing
Formfactor  Dimensions  100mm * 100mm
Weight
Certificate    FCC, CE, RoHS
