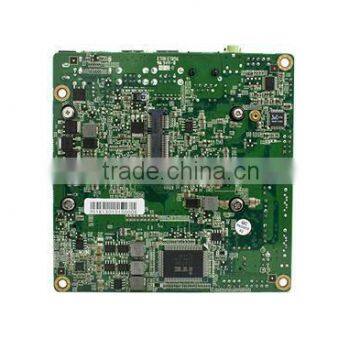

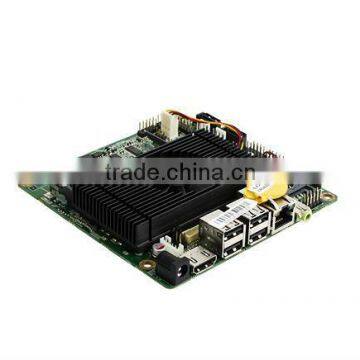

AMD T56N CPU Dual Core Single Board Computer DS-2018 Motherboard

Specification

Processor

AMD eontario1.2G single core/1.6G dual core; FSB 1GMhz;

Chipset

AMD Hudson

Memory

1*SD-DIMM slot DDR3 800/1066/1333

USB

6*USB 2.0(4*Rear pannel , 2*Header , Max 4GB)

Display

Integrated AMD graphics 47XX , support 2 line HD

( 1080P) display and DX11 UVD3 HDMI+VGA(pin header) +LVDS pin header

LAN

Realtek 8111DL chip , 10M/100M/1000M self-adapted RS45 network interface;

Extensive Bus

MINI-PCIe , 3G slot

Audio

Realtek ALC 662HDA , 1*F_Audio pin header , 1*Line-out

Back I/O

1*DC-in/12V , 1*HDMI , 4*USB , 1*Lan , 1*Line-out

On board I/O

ITE8718 chip , 2*COM(RS-232) , 1*8  GPIO ,1*24bit LVDS ,

1*VGA header , 1*SPDIF header , 1*CIR header

Storage

2*SATA interface ( support SATA3.0Gbps )

2*HHD power supply interface

BIOS

SOP8 SPI ROM support ACPI 2.0 APM1.2 DIM2.0 SMRIOS2.5 customized boot-up LOGO

Power supply

12V@4A

Dimension

12*12CM
