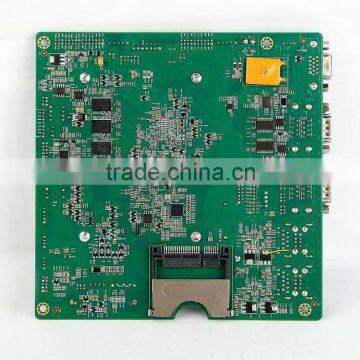

Fanless Intel Atom D2550 Dual Core Mini-ITX Motherboard GMX-IL1916

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port SHENZHEN
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Application	Other
Chipset Manufacturer	Intel	Form Factor	Mini-ITX
Memory Type	DDR3	Graphics Card Type	Integrated
Hard Drive Interface	SATA	FSB / HT	800MHz
Model Number	GMX-IL1916	Place of Origin	Guangdong, China

Product Description

Specification
Processor	CPU	Intel®Atom ™ D2550 -1.86GHz (Dual Core)
	CPU Package	Onboard
	FSB	DMI x 4 10Gb/s
	Chipset	G82NM10
	BIOS	System BIOS: SPI BIOS
Memory	Tech Architecture	Single Channel DDR3 1066 MT/s
	Capacity	Onboard 2GB DDR3
	Socket	N/A
Display	Graphic Controller	Intel® GMA3650 Graphic Media accelerator
	LVDS	Support single channel 18bit output, dual channel 24bit output (optional); support backlight brightness adjustment.
	LVDS	Max. Resolution: 1600 x 1200
	Touch Panel	Support 4-5 Wire Resistive Touch Panel
	HDMI	N/A
	HDMI	N/A
	VGA	1* standard DB15 VGA port
	VGA	Max. Resolution:1920 x 1200
	Dual Display	LVDS + VGA
LAN	Controller	LAN1: Intel® 82583V GbE
LAN	Controller	LAN2: Intel® 82583V GbE
Audio	Controller	Realtek HD ALC662 Audio decode(right&left channel + Mic)
Super I/O	Controller	SMSC3114
H/W Monitor	WatchDog Timer	0-255 Sec., provide watchdog routine.
H/W Monitor	FAN	DC-FAN
TPM	Controller	N/A
I/O	USB	6*USB2.0 / 1.1 compatible, support max. +5V 1A.Pinheader x 2, Back I/O x 4
	Serial Port	4* COM (3 RS-232, 1RS-232/RS-422/RS-485),
		Use jumper to select PIN9 +5V/+12V/RING function
		TX/RX signal, support 5000V surge protection
		RS485 with Electromagnetic isolation; ESD protection::Aerial Discharge±8 kV; Contact Dischage:±6 kV
	Parallel Port	1*LPT
	PS/2	N/A
	GPIO	16bit GPIO, provide routine, free desine Input/Output, 5V Level.
	IEEE 1394	N/A
Expansion Slot	PCIeX16	N/A
	PCIeX4	N/A
	PCIeX1	N/A
	PCI	N/A
	Mini-PCIe	1*Mini-PCIe socket, support PCIe and USB device.
	UIM Scoket	3G UIM Card
Storage	SATA	1*SATAII, Max. transfer rate: 3Gb/s
	IDE	N/A
	eSATA	N/A
	C-Flash	1*SATAII C-Fast Scoket, Max. transfer rate: 3Gb/s
Power Supply	Power Type	AT/ATX mode optional, DC +12V-+36V extended voltage input, support reverse power protection,30A 16 sec. automatically fuse recover;4pin power connector.
Power Supply	Power Consumption	Typical PW: 14W
Environment	Operating Temp.	0°C ~ 60°C
	Storage Temp.	-20°C ~ 80°C
	Operating Humidity	0% ~ 90% relative humidity, non-condensing
	Storage Humidity	0% ~ 90% relative humidity, non-condensing
Form Factor	Dimensions	170 mm * 170 mm (6.69”*6.69“)
Form Factor	Weight	0.37kg
Regulatory Compliance		FCC, CE, RoHS
