Home > Products > Zipper Slider Machine > Zipper Slider Die-casting machinery/aluminium die casting machine price

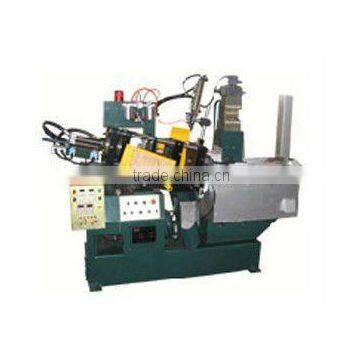

Zipper Slider Die-casting machinery/aluminium die casting machine price
USD $7,500 - $8,000
/ Piece
1 Piece(Min.Order)
- 50 Piece / Pieces per Month
- negotation
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Production Capacity | 99 | |
| Place of Origin | Guangdong, China | Brand Name | HKT | |
| Model Number | HKT-0633M | Voltage | 380 | |
| Power(W) | 4KW | Dimension(L*W*H) | Machine Dimension(LxWxH) | |
| Weight | 1600KG | Certification | CCC CE | |
| Warranty | ONE YEAR | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Full automatic,labor saving ,Microcomputer automatic melting ,Real-time controlSpecifications
Full automatic,labor saving ,Microcomputer automatic melting ,Real-time control
tal zipper slider making machine
2.full automatic,labor saving
3.microcomputer automatic melting
4.real-time control
A:203
B:120
C:60
D:ø32
H:228
Emin:100
Emax:250
| Specifications | Unit | DC12 | |
| Clamping Unit | |||
| Clamping Force | KN | 120 | |
| Clamping Stroke | mm | 130 | |
| Ejector Force | KN | 12 | |
| Ejector Stroke | mm | 40 | |
| Die Height (Min.-Max.) | mm | 100-250 | |
| Platen Size(H x W) | mm | 305¡Á305 | |
| Space Between Tie Bars | mm | 203¡Á203 | |
| Tie Bar Diameter | mm | 32 | |
| Casting Unit | |||
| Shot Position (0 = center) | mm | 0-30 | |
| Max. Casting Force | kN | 17 | |
| Casting Stroke | mm | 80 | |
| Transverse Stroke | mm | 140 | |
| Injection Plunger Diameter | mm | 3036 | |
| Shot Weight (Zn) | Kg | 0.280.4 | |
| Motor Power | kW | 4 | |
| Others | |||
| Hydraulic Working Pressure | MPa | 6 | |
| Hydraulic oil Tank Capacity | dm3(kg/Zn) | 22(145) | |
| Consumption | Oil | Kg/h | 3.2 |
| Electric | kW | 22 | |
| Gas | M3/day | 49 | |
| Oil box Cubage | L | 150 | |
| Electricity Power | kW | 1.5 | |
| Machine Weight | kg | 1600 | |
| Machine Dimension(LxWxH) | L¡ÁW¡ÁH | 3100¡Á1070¡Á1760 | |
