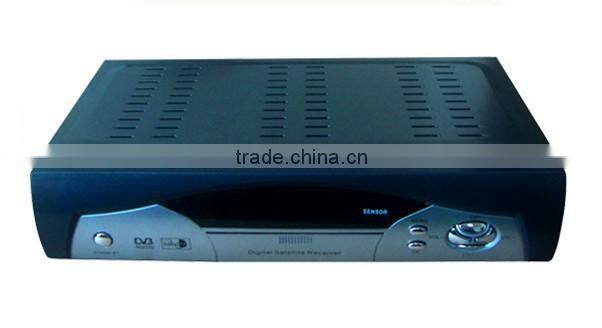

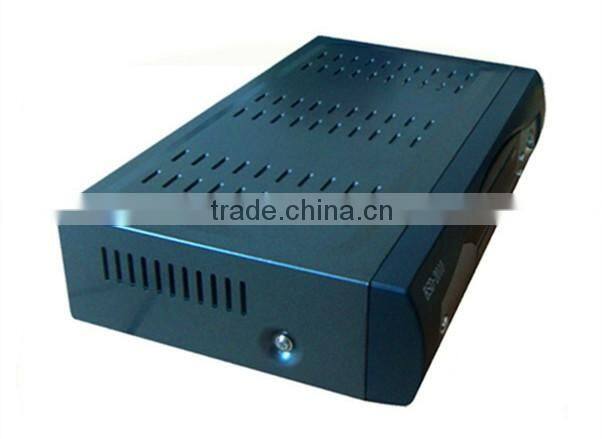

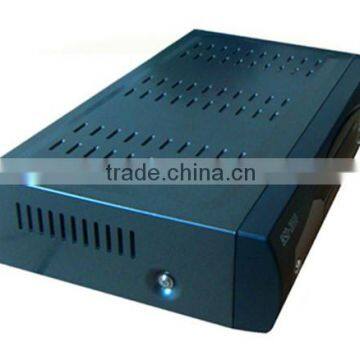

Classic FTA TV Set Top Box DVB and MPEG-2 Full Compliant Satellite TV Receiver Support PAL/NTSC For the Middle East

Classic FTA TV Set Top Box DVB and MPEG-2 Full Compliant Satellite TV Receiver Support PAL/NTSC For the Middle East

OEM &ODM  Order are warm welcomed !

Specifications:

TUNER

1. Input Frequency: 950 to 2150 Mhz
2. Input Level: -65 to -25
3. LNB Supply: 13V / 18 V / OFF, max 400 mA
4. Demodulation Type: QPSK
5. Symbol Rate: 4 ~ < 45 MS/s

AUDIO/VIDEO PROCESSING

1. Sudio Standard: ISO/IEC 13818-3
2. Audio Channel: Mute, Left, Right and Stereo
3. Audio Decoding: MPEG-1 & MPEG-2 layer I and II
4. Video Standard: ISO/IEC 13818-2, MPEG-2 MP@ML
5. Aspect Ratio: 4:3
6. Video Resolution: 720 x 576 (PAL), 720 x 480 (NTSC)

POWER SUPLY

1. Type: Switching Mode
2. Input Voltage: 90-265V, 50/60Hz
3. Power Consumption: 12W max

PHYSICAL CHARACTERSTICS

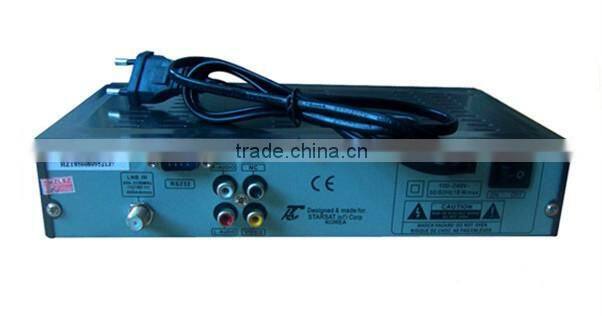

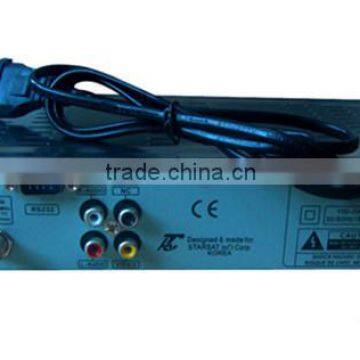

1. Rear Pannel: 1LNB Input (2F-Type)
2. Connectors: 2 x Audio L/R (RCA), 1 x Video Signal (RCA) and 1 x RS-232 (9-pin D-sub male)
3. Humidity  :10% ~90%

Features:

1. DVB and MPEG-2 full compliant
2. High speed auto searching programs based on LNB Frequency.
3. Maximum memory up to 1800 programs.
4. Many languages optional on menu.
5. Signal level and quality indicate timely.
6. Support software Upgrade from receiver to receiver and from PC to receiver
7. Easy to install and search.
8. Easy to edit, including add, rename, move,delete
9. PAL, NTSC systerm auto and manual convert (option).
10. Support mono, stereo output
11. Memory function when lose of power
12. DISEqC1.2 supported Elevation and Azimuth of satellite computable.
13. RS-232 connector for software upgrade
14. 22KHZ switching signal substain the transefer of many satellites.
15. Support RF
16. Support Electronic Program Guide
