STARGOLD Universal 8-output lnb SG-800
Product Description:
1. 8 outputs LNB
2. Noise figure:0.5 dB
3. OEM giftbox:Yes
4. CE
5. HD ready
Key Manufacturers Features:
- Low Current Consumption as Two Quad LNB in One Housing
- Excellent DRO Stability
- Superior Low Noise Figure and High Isolation Performance
- Low Harmonic Distortion
- Best Solution for SMATV (Eight-User) System
- Waterproof Guaranteed
- Meet ETSI Standard (CE Certified)
Input Frequency Range | LOW Band:10.7~11.7GHz |
| High Band:11.7~12.75GHz |
Output Frequency Range | Low Band: 950 - 2050MHz |
| High Band: 1100 - 2150MHz |
Input VSWR | 2.5:1 |
Output VSWR | 2.5:1 |
L.O. Frequency | Low Band 9.75GHz |
| High Band 10.6GHz |
L.O. Stability | ±2MHz @ (-40c~70c) |
L.O. Phase Noise | -70dBc/Hz (1KHz Offset) |
| -90dBc/Hz (10KHz Offset) |
| -110dBc/Hz (100KHz Offset) |
Conversion Gain | 60dB (TYP) |
Gain Flatness | ±0.5dB/6MHz; ±2.5dB/IN BAND |
Noise Figure | ±0.3dB (Typ) |
Image Rejection | 50dB(Typ) |
Output Power | +5dB (Min) (at 1dB gain compression) |
Cross Polarization Discrimination | 23dB(Min) |
DC SUPPLY VOLTAGE | 11~14.5V (V),15.5~22V (H) |
SUPPLY CURRENT | 130mA (MAX) |
LOW/HIGH BAND SWITCHING | Low Band: 0Hz HIGH BAND: 22KHz±4KHz |
Output Connector | 75Ω "F" type female |
RELATIVE HUMIDITY | 0%~95% |
Operating Temperature | -30 °C to +70 °C |
Packing and Delivery:
20pcs/CTN, 30pcs/CTN,50pcs/CTN Depends on customer requirement.
Leading time: Normally 7-15 days for small qty orders
For more than 1*20'GP/40'GP/40'HQ container, always 25-30days.

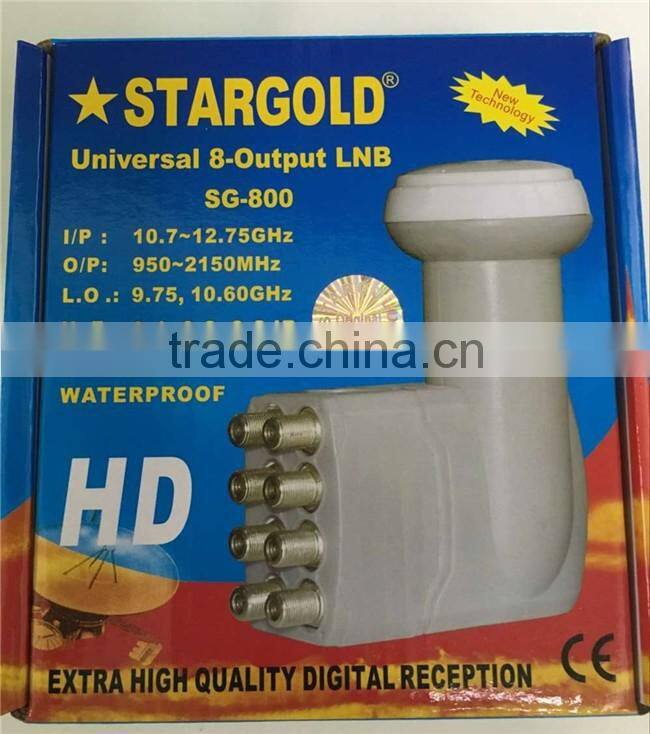

Several Gift Box packing optional
Our Service:
we have professional designers,engineers and high-efficient production lines.
we can provide you before services:
1.our designers will give you unique,eyes-catched gift box designs to choose
2.our engineers will always be strongest promist to our lnbs
3.our labors is hard-working and careful,promise your order finished in time with good quality

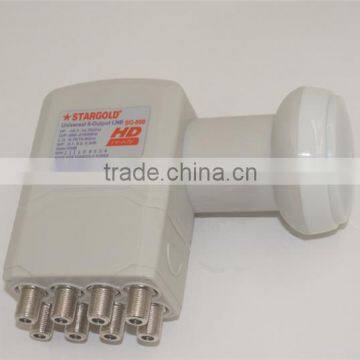

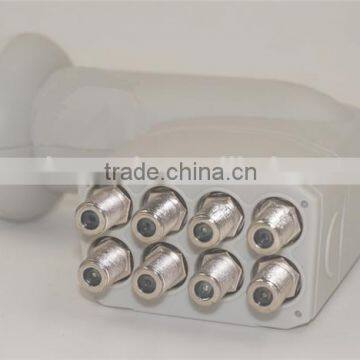

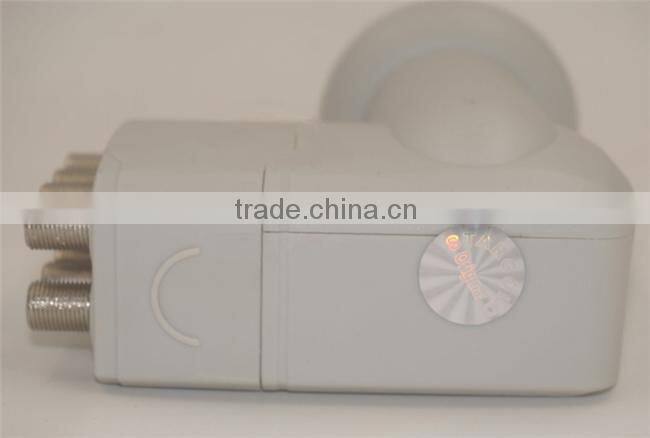

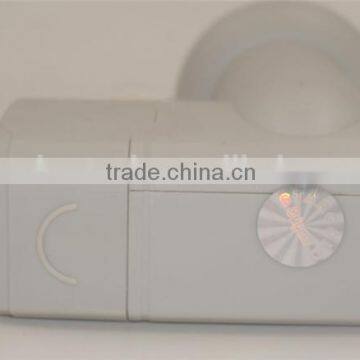

Product Show:
Production Line:
