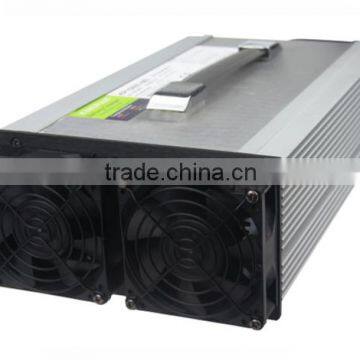

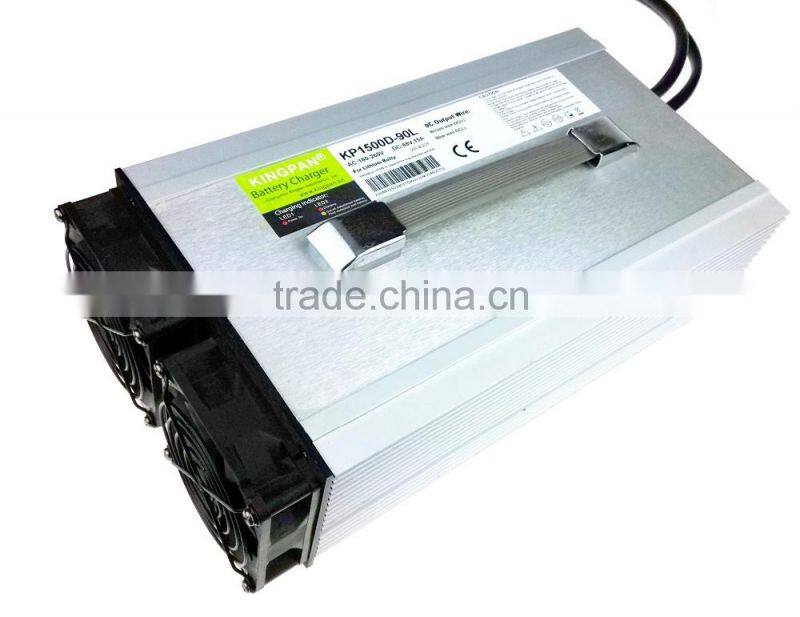

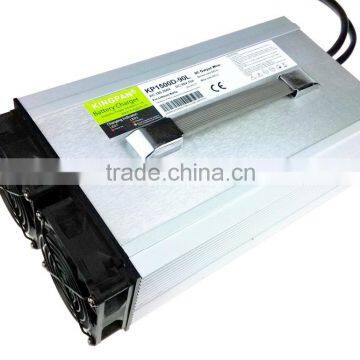

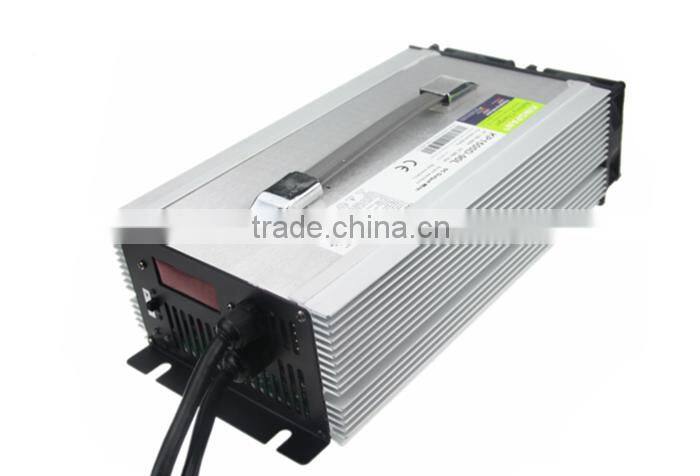

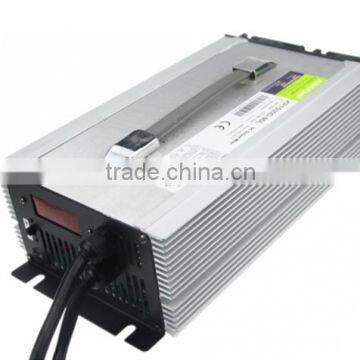

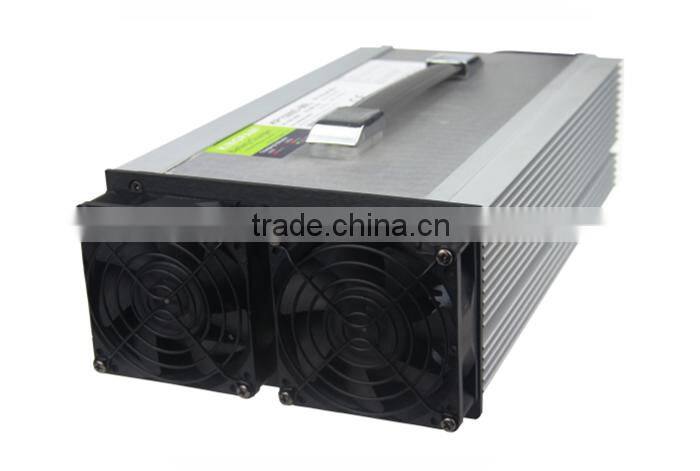

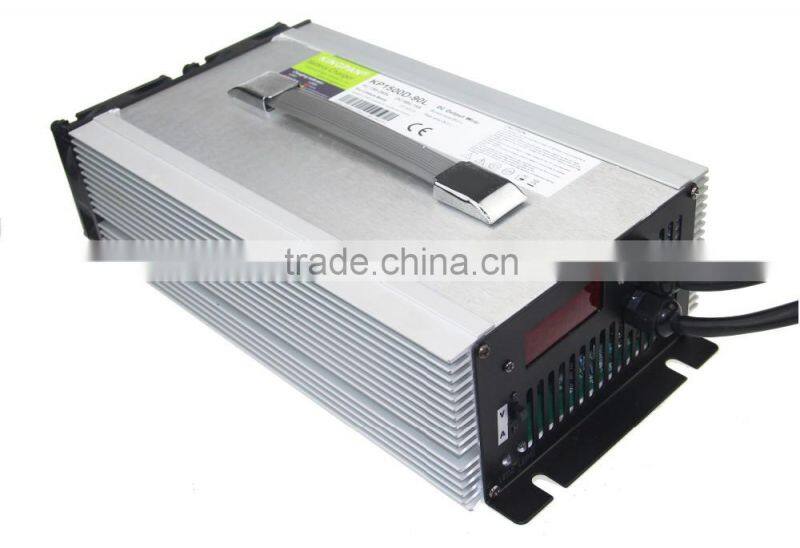

KP1500D 1.5KW Universal Electric Car Intelligent Battery Charger With Display Table For Tourist Coach and Sightseeing Bus

Working Conditions

Humidity:

5~95%

Altitude:

≤3000m

Protect

Over Voltage:

Charger output voltage does not exceed the set maximum charging voltage of the battery

Over-temperature:

None

Limiting:

Charger output current does not exceed the set maximum battery charging current.

Short Circuit:

When the output short-circuit thecharger is not working properly, the output returns to normal, the charger can restore itself.

Reverse Polarity:

When the output line reversed after the charger will not work until the right user access only to start.

Charging

Power On:

LED1: Red

LED2: Green

Charging:

LED1: Red

LED2: Red

Fully Charged:

LED1: Red

LED2: Green

Environmental Testing Requirements

Max. Operating Temperature:

+40℃

Min. Operating Temperature:

-10℃

Max.Storage Temperature:

+70℃

Min. Storage Temperature:

-40℃

Random Vibration:

20Hz to 500Hz Acceleration 0.49

Repeat Shock:

10Hz to 60Hz Amplitude 0.38

Thermal Shock:

-35~75 degree,<3min transition, 2.5hours dwell, 200cycle

Drop Test:

BS EN60068-2-32:1993 TEST ED: free fall appendix B

Note: After the return to normal temperature 2 hours, the charger can work.

Nominal

Output Voltage
