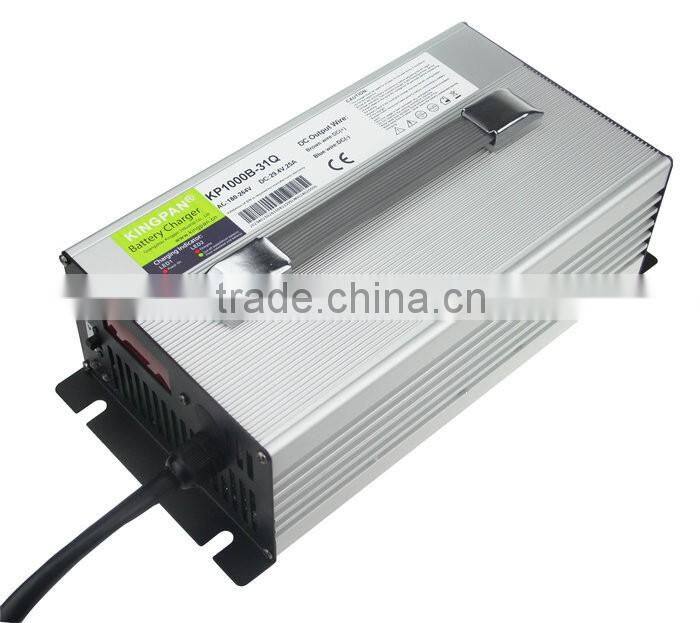

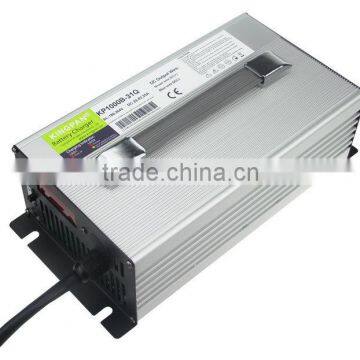

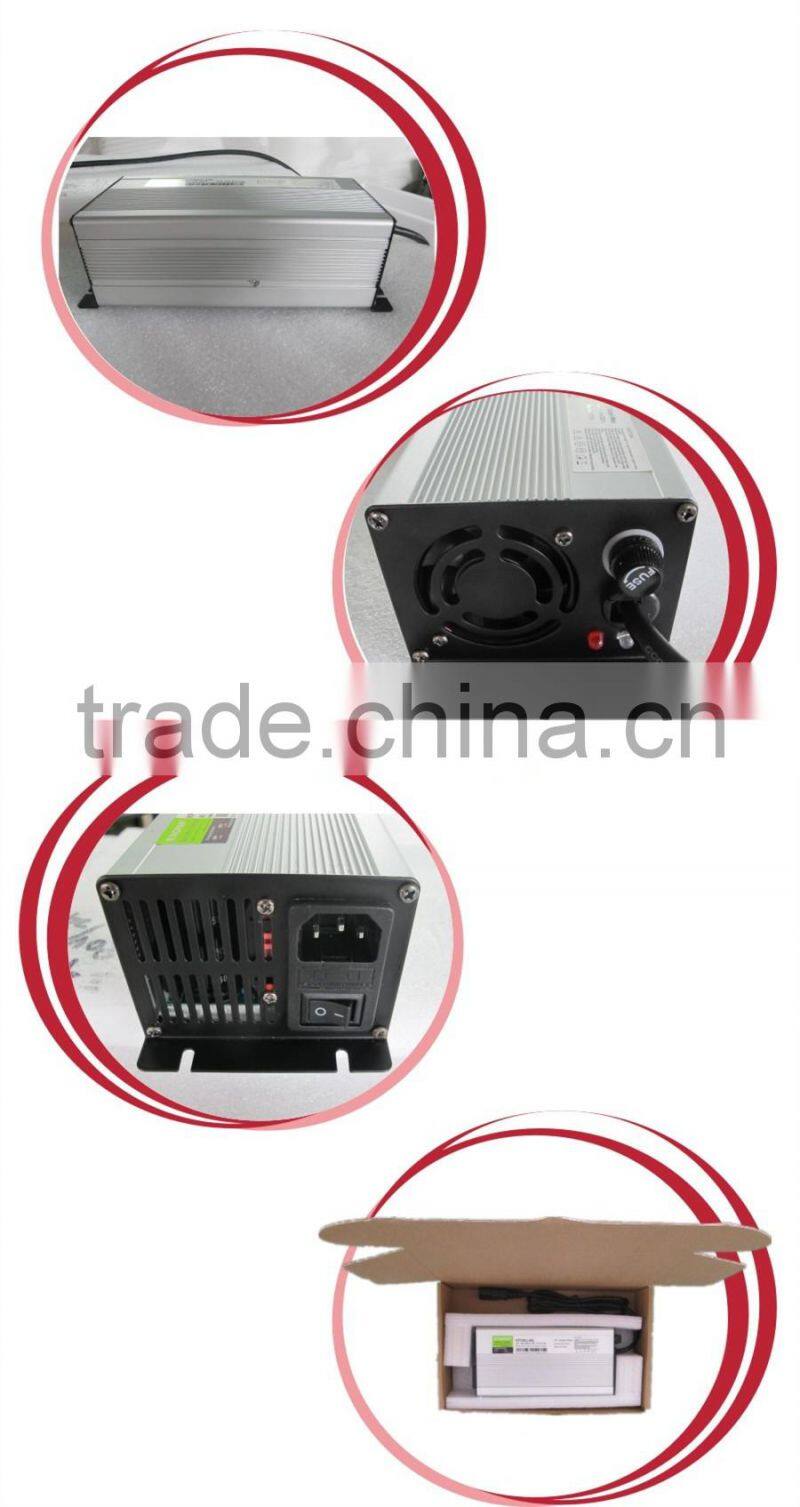

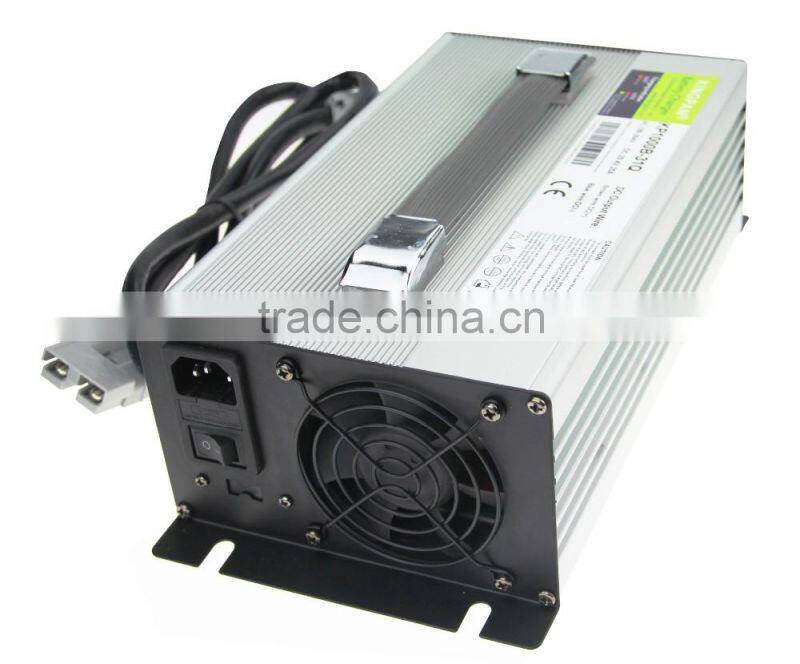

KP1000B Smart Charger 1000W Lead-acid/Lead Acid /MH-Ni Charger for Electric Tricycle, Electric Light Truck, Washing Machine

Working Conditions

Humidity:

5~95%

Altitude:

≤3000m

Protect

Over Voltage:

Charger output voltage does not exceed the set maximum charging voltage of the battery

Over-temperature:

None

Limiting:

Charger output current does not exceed the set maximum battery charging current.

Short Circuit:

When the output short-circuit thecharger is not working properly, the output returns to normal, the charger can restore itself.

Reverse Polarity:

When the output line reversed after the charger will not work until the right user access only to start.

Charging

Power On:

LED1: Red

LED2: Green

Charging:

LED1: Red

LED2: Red

Fully Charged:

LED1: Red

LED2: Green

Environmental Testing Requirements

Max. Operating Temperature:

+40℃

Min. Operating Temperature:

-10℃

Max.Storage Temperature:

+70℃

Min. Storage Temperature:

-40℃

Random Vibration:

20Hz to 500Hz Acceleration 0.49

Repeat Shock:

10Hz to 60Hz Amplitude 0.38

Thermal Shock:

-35~75 degree,<3min transition, 2.5hours dwell, 200cycle

Drop Test:

BS EN60068-2-32:1993 TEST ED: free fall appendix B

Note: After the return to normal temperature 2 hours, the charger can work.

No.

Volts

Constant Voltage

Constant Current

Float Voltage (Lead Acid Only)

Cut-Off Current

Dimenson (mm)

Lead Acid

Lithium Ion

Lifepo4

Max(A)

Lead Acid

Li

1

12V

14.7V

16.8V

14.6V

40A

13.8V

8.0A

4.0A

260*150*88

2

24V

29.4V

29.4V

29.2V

25A

27.6V

5.0A

2.5A

3

36V

44.1V

42V

43.8V

20A

41.4V

4.0A

2.0A

4

48V

58.8V

54.6V

58.4V

16A

55.2V

3.2A

1.6A

5

60V

73.5V

75.6

73.0

13A

69.0V

2.6A

1.3A

6

144V

176.4V

176.4V

175.2V

5.5A

165.6V

1.1A

0.6A
