Rock wool sandwich panel

Specifications

Name:Rock wool sandwich panel
1.Thickness:50mm/75mm/100.
2.Material:color steel with Rockwool
3.Good Temp-Keeping



Rock wool sandwich panel

Description



Sandwich Panel (FPB) is a kind of light weight energy saving wall material taking calcium silicon board (fiber cement board) as face panel, cement, Rockwool , fly ash as core and forming by one time compound.  It can widely be applied to wall materials of various high and low buildings such as: bank, office building, hospital, school, hotel, shopping mall, amusement hall, old house reconstruction, residence and workshop.



Technical Data Sheet



Steel Thickness	0.23~0.5 mm
Panel thickness	50/75/100/125/150/200 mm

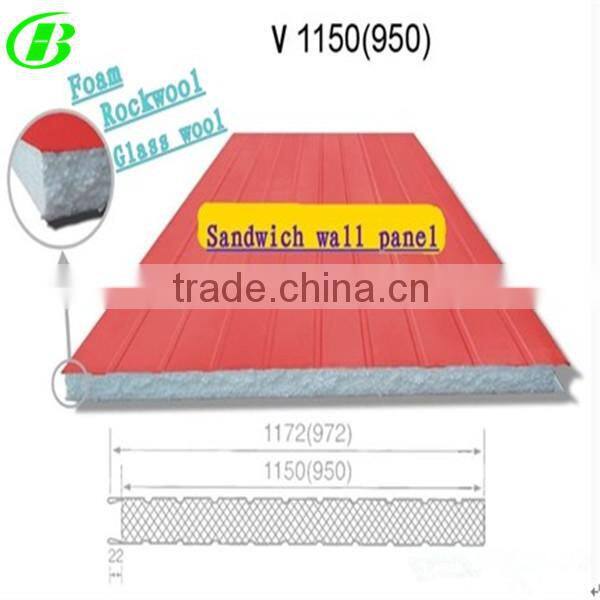

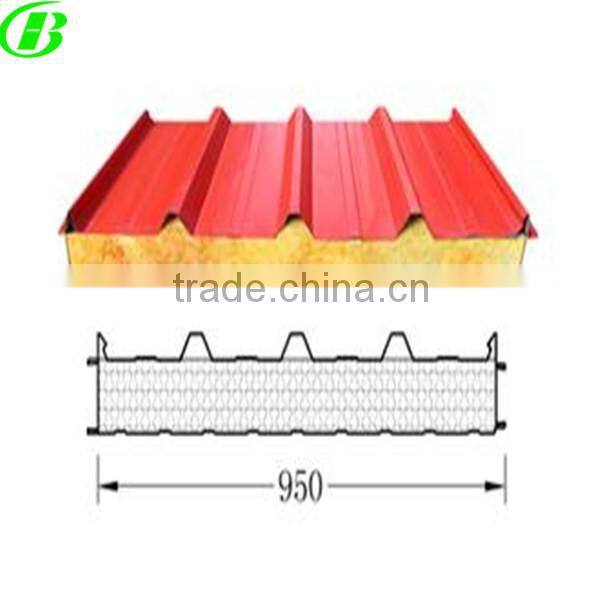

Effective width	(1) 950mm ---for roof  (2) 950 / 1150mm---for wall or ceiling
Length	According to customer's request, less than 11.8m
Materials	Inner is rock wool sandwich ,two sides is Galvanized Color steel sheet
Structure	three layers: (1)upper layer is steel sheet, (2)the inner layer is rock wool  (3)bottom is also steel sheet
Rockwool density	110-120(kg/m³),etc Normal is:6kg,8kg/12kg,16kg/m3
color	White grey or blue
Parts	Steel line for easy connect one by one Film covering in order to protect the steel of panels
lifetime	15~20 years
Character	Light in weight, heat insulation, fire-proof and waterproof, environmental
Use	various roofs and walls referring to the large size factory buildings, storages, exhibition halls, gymnasiums ,etc
Packing	Packing in shipping Container or according to your demands







Advantages of Corrugated

1.      Increased supporting strength

2.      Reduced project cost

3.      Light weight

4.      Easy and fast for installation

5.      Durable: 15-20 years

6.      Fire/ water proof; heating/sound insulation

7.      More color for you choice

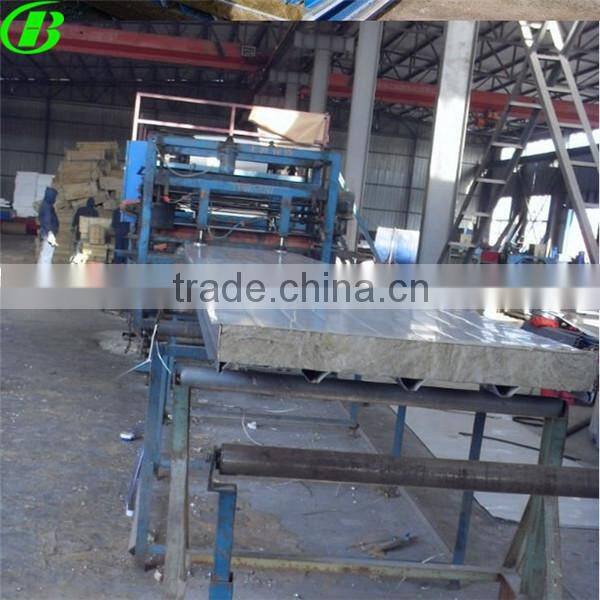

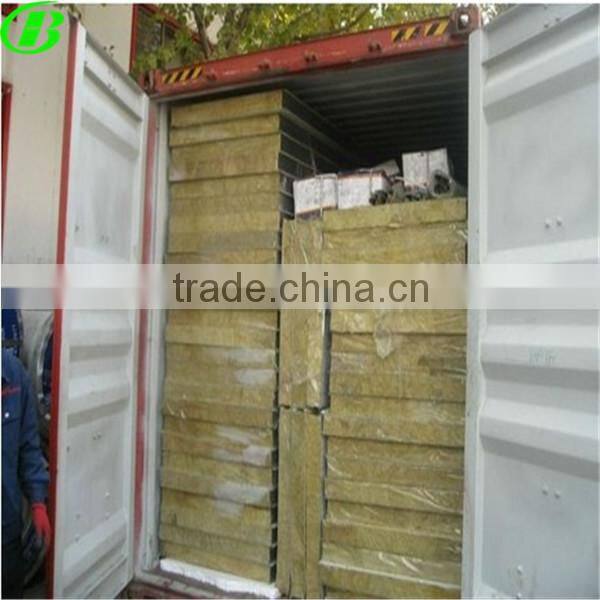

Factory&Packing

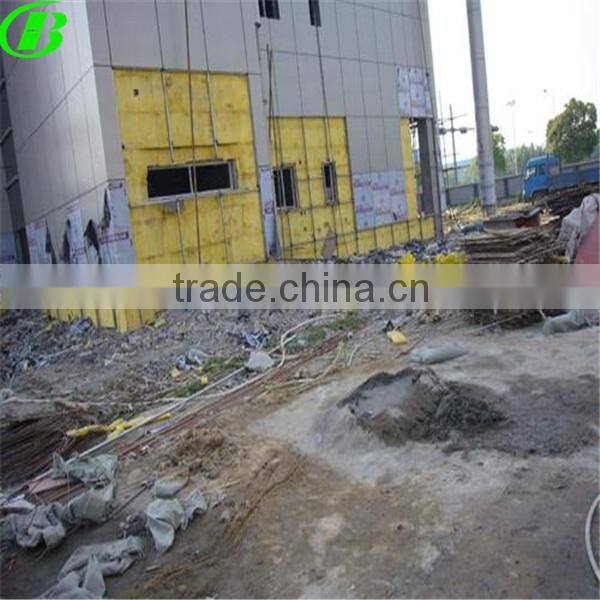

Application





Save time & money by having the roof, wall, floor for your project pre-built and delivered to your site.  Whether it's for single family, townhome, apartments or commercial buildings; Changhang panels are your assurance of the highest quality product and outstanding service.
