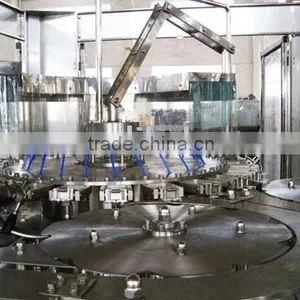

Help CenterWater Filling Machine
Related Products
Specifications
Washing, filling and capping are integrated into one unit. It can be used for both plastic bottles and glass bottles.Features:
This series equipment is used in the production of non-carbonated drink, such as mineral water and purified water, etc. Washing, filling and capping are integrated into one unit. It can be used for both plastic bottles and glass bottles.
Parameters:
Model |
CGX 14-12-5 |
CGX 16-16-6 |
CGX 18-18-6 |
CGX 24-24-6 |
CGX 32-32-8 |
CGX 40-40-10 |
CGX 60-50-15 |
|
Capacity BPH/500ml |
4000 |
6000 |
8000 |
12000 |
15000 |
18000 |
20000 |
Applicable Bottle Type |
Bottle Diameter: 50-100 mm Bottle Height: 150-320 mm Volume: 330-1500 ml |
||||||
Applicable Cap Shape |
Plastic screw caps |
||||||
|
Gas Source Pressure (MPa) |
0.6 |
||||||
|
Gas Consumption (m3/min) |
0.2 |
0.2 |
0.4 |
0.4 |
0.5 |
0.55 |
0.6 |
|
Total Power (KW) |
4.6 |
4.6 |
5.4 |
6.4 |
8.07 |
9.56 |
11.18 |
|
Total Weight (kg) |
2500 |
3200 |
3800 |
5200 |
6500 |
8000 |
11200 |
|
Outer Dimension (mm) |
2350* 1700* 2150 |
2600* 1830* 2030 |
2830* 2030* 2030 |
3220* 2300* 2600 |
3450* 2510* 2710 |
3800* 2800* 2710 |
4510* 3400* 2900 |
