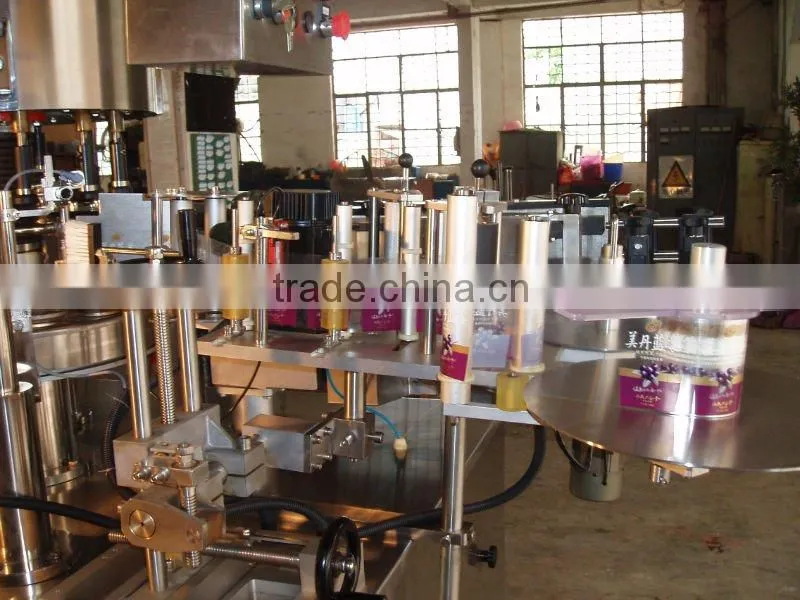

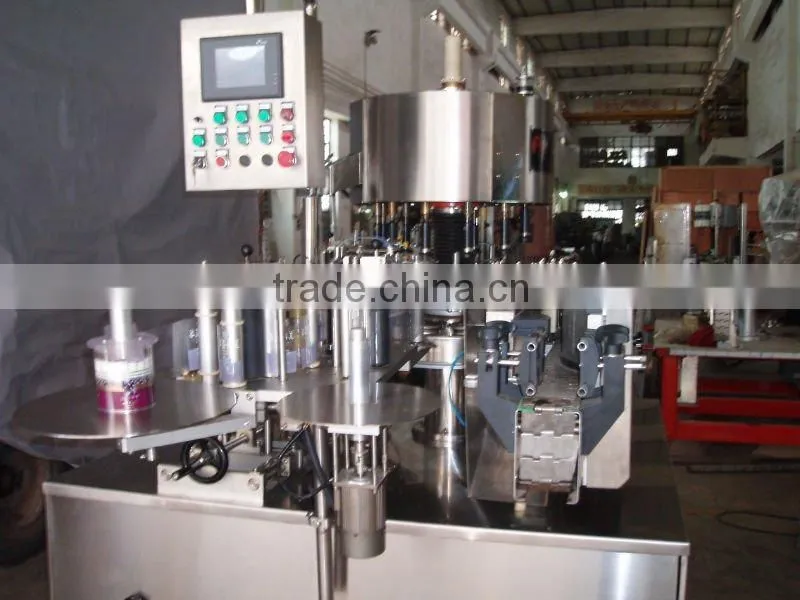

Help CenterRotary Adhesive Labeling Machine
Related Products
Specifications
rotary labeling machine(3 labels)bottle neck,bottle body front and back
1)Main description
1.Product name DYD-6JSB
2.Rotary type self-adhesive labeling machine
3.Quantity:1set
4.Component:special made by client's bottle
5.Delivery time within 50 days when receiving the bottle samples and labels
2)Main technical parameters
A,heads of bottle handing and pressing:6pcs,labels:3pcs
B,bottle(for bottle samples),length of label paper:10~220mm,height of transport chain:850-1000mm(asjustable).
C,suitable for self adhesive label roll.
D,production speed:3000~5000 P/H(adjustbale).
E,total power:3KW
F,power supply 380V/50HZ
G,Dimension:2440*1760*1860mm
3) Lable Station:
The labelspeed: 3 ~ 50m/min
The label Accuracy: ± 1mm
Labeling accuracy: ± 1mm
Lable minimum length: 10mm
4)Requirements on the label:
a) Label Glassine paper ( light the bottom paper);
b) not less than the thickness of tissue paper label 25×10-6m(25μm);
c) Label roll outer diameter <350; label roll inner diameter is φ76
5)equipment control system:
A, host control by programmable PLC (Mitsubishi), and provides PLC program control card, the program logic diagram and procedure code.
B, mainly imported electrical components of Siemens components, auxiliary components using domestic quality products.
C, E, air facilities, the facilities can be connected directly with the factory.
D, with a waterproof panel.
E, all of the machine control and related control signals are concentrated in an electronic control panel, and the moment of production equipment, production information will be displayed.
F, mushroom type emergency stop button installed in the main control panel.
G, main motor through the inverter and a set of sensor control, running speed labeling machine according to the functioning and the production rate changes.
H, automatic bottle-side door lock device, automatically blocking out the tip into the tip off.
I, importing pneumatic device with pressure regulator, filter and gas lubrication device.
J, portable mobile operation box.
6)Anti-corrosion:
A, extensive use of anti-corrosion materials such as stainless steel, anti-corrosion alloy, plastic and so on.
B, casting, carbon steel, aluminum parts have been through layers of anti-rust treatment.
7) Easy to operate:
A, requires minimum maintenance and lubrication.
B, easy to clean, easy removal of the auxiliary parts.
C, different bottles, standard replacement parts easy to replace paper.
D, different bottles, standard paper replacement parts easy to identify.
Fifth, acceptance criteria:
1, according to technical parameters
2, for trademark paste neat, flat, standard, standard and sub-standard are symmetrical, no wrinkle-free Qiaojiao, labeling accuracy ± 1.5mm.
8)Equipment information:
1, User manual (installation, commissioning, lubrication, troubleshooting).
2, electrical schematics and wiring diagram.
3, the safety operation.
4, consumable spare parts list (manufacturer, model, size, price)
