Help CenterHot Melt Labeler
Related Products
Specifications
hot melt labelerVolume Range:8000-30000(Bottle/hour)
Label Type:The max. height if the label paper is 650mm

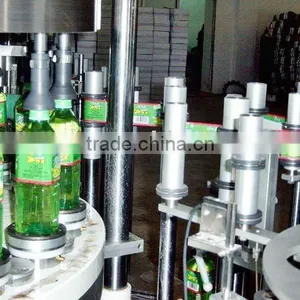

Hot melt labeler
Equipment brief introduction
1.1).easy operation to adjust label cutting knife
1.2).vacuum drum made of high rigid material to reduce friction and static
1.3)rapid changeovers: modular design and quick release change parts have changeovers fast and easy in ten minutes
1.4).using handle to adjust the position of cutting knife is possible and exactly
1.5).vacuum manifold at the lower part of drum and cutter, made of heat & wear resistant material
1.6).automatic label length controller to adjust position of I-MARK
2.label material: OPP, PVC, PAPER et c. label size:as demanded
labeling method: line type
3. machine description
3.1) roll-fed type
3.2) label in-fed from label station is conveyed to label in-feed roll-er through label guide roller
3.3) sensors will check I-MARK of label automatically when label reaches label in-feed roller
3.4) as soon as the position of I-MARK is confirmed, Encoder will adjust the operation speed of label in-feed roller and then appoint the label cutting position
3.5) label which has been cut is conveyed to vacuum drum
3.6) after checking label attached on vacuum drum by sensor, label is conveyed to glue roller and then
inject hot melt on label
3.7) to adjust containers by in-feed star wheel and do labeling in roller zone for the first time and then
labeling operation will be done perfectly by side belt.
4. safety
4.1)control : PMC, inverter
4.2) safety attachments
overload running safety equipment attached on driving zone
stopper for abnormity operation of in-feed star wheel
no bottle fed (sensor check)
overload for bottle fed (sensor check)
no bottle no labeling
